| Fattore Di Forma |
ATX |
| Presa |
AMD AM5 (LGA1718) |
| Chipset |
AMD B650 |
| Compatibilità Cpu |
Ryzen 7000, Ryzen 8000G, Ryzen 9000, EPYC 4004, EPYC 4005, elenco di compatibilità CPU |
| Ram-Slot |
4x DDR5 Dimm, Dual Channel, UDIMM (ECC+non ECC), max. 192 GB (UDIMM) |
| Ram-Data Rata Oc |
max. DDR5-7600 |
| Ram-Data Rate Nativa |
DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000), DDR5-5200 (EPYC 4004), DDR5-5600 (EPYC 4005) |
| Supporto Ecc |
SÌ |

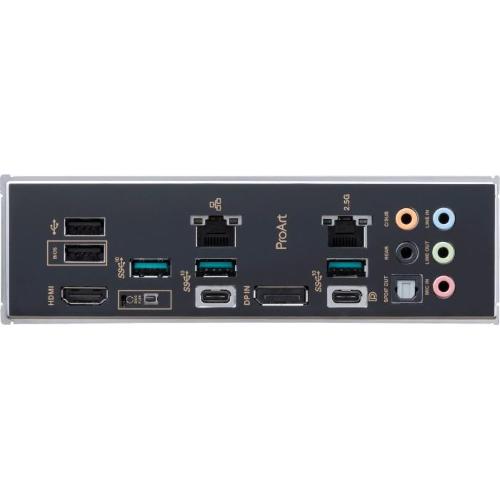

| Connettori Esterni |
1x HDMI 2.1 (IGPU), 1x USB-C 3.1 con DisplayPort 1.4 (10 GB/S, IGPU), 1x DisplayPort-in 1.4 (DGPU Passtrough), 1x USB-C 3.1 (10GB/s), 3x USB-A 3.1 (10GB/s), 2x USB-A 2.0 (480mb/s) ) |
| Pcie Slots |
3x pcie 4.0 x16 (1x x16, 1x x8, 1x x4), 1x pcie 4.0 x1 |
| M.2-Slot |
1x M.2/M-Key (PCIE 5.0 X4, 2280/2260/2242), 2x M.2/M-Ke (PCIE 4.0 X4, 22110/2280/2260/2242), 1x M.2/E-Key (2230) |
| Interfacce Varie |
4x SATA 6GB/S (B650) |
| Connettori Interni - Usb |
1x USB 3.2 Testa di intestazione-A (20 GB/S, PD 60W, QC4+, 1x USB-C), 1x USB 3.0 Intestazione 20-pin (5 GB/S, 2x USB-A), 2x USB 2.0 Intestazione 9-pin (480 MB/S, 4x USB-A) |
| Connettori Interni - Altro |
Testa seriale 1x, header fulmine 1x 13-pin (ASUS) |
| Connettori Interni - Raffreddamento |
2x ventola CPU PWM a 4 pin, 4x ventola a 4 pin PWM, 1x pwm a 4 pin a 4-pum |
| Connettori Interni - Alimentazione |
1x a 24 pin ATX, 1x 8-pin EPS12V, 1x 4-pin ATX12V, 1x 6-pin PCIe |
| Connettori Interni - Illuminazione |
1x 4-pin RGB (+12V/G/R/B, Max. 3A), 3x 3-pin Argb (+5V/Data/GND, Max. 3A, Asus Gen2) |
| Pulsanti/Interruttori |
Flashback BIOS USB (esterno) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek (2,5 GB/s), Realtek (1 GB/S) |
| Grafica |
Igpu, DGPU Passtrough |
| Wireless |
non disponibile |
| Livello Raid |
0/1/10 (B650) |
| Vrm-Design |
12+2+1, 14 PHASS CPU virtuali (2x6+2), 8 PASS CPU reali (6+2) |
| Mosfets Vcore |
12x 60A SIC643 (DRMOS) |
| Mosfets Soc/Vccgt |
2x 60A SIC643 (DRMOS) |
| Mosfets Vdd_Misc/Vccsa/Vccaux |
1x |
| Pwm-Controller |
ASP2208 (RT3678BE, fasi Max. 10) |
| Illuminazione |
non disponibile |
| Bios |
1x 32 MB (256 MB) |
| Caratteristiche Speciali |
Capacità audio+solide, LED diagnostico (indicatori a LED), integrato I/O, 2x M.2-COOTTER |
| Warranty |
3 years (handling by merchant) |
| Usb Nomenclature |
Link |
| Last Price Update |
2025-06-11, 12:33pm |
| Listed Since |
2022-10-03, 6:29pm |
