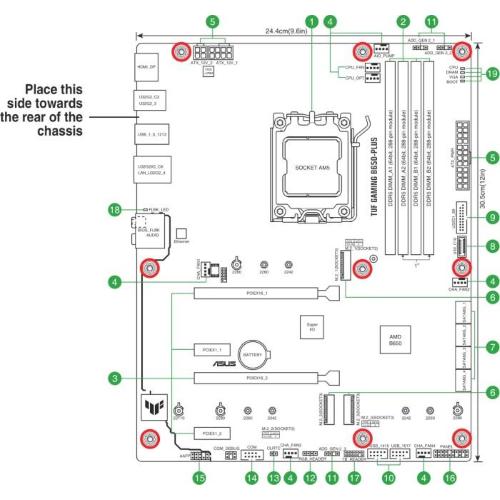

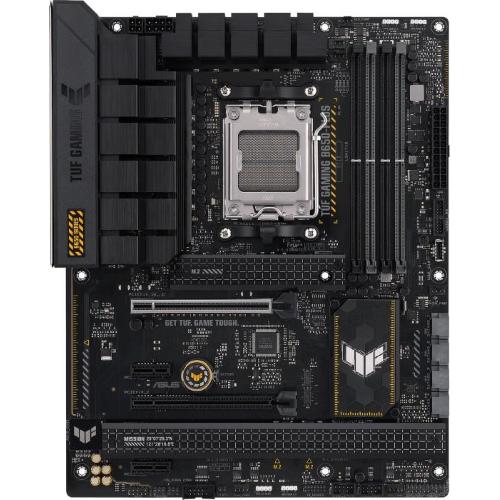

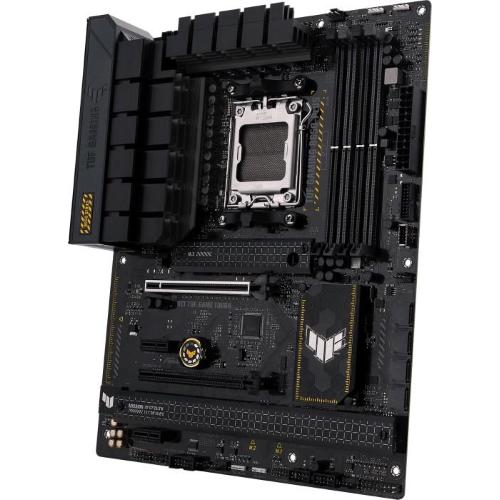

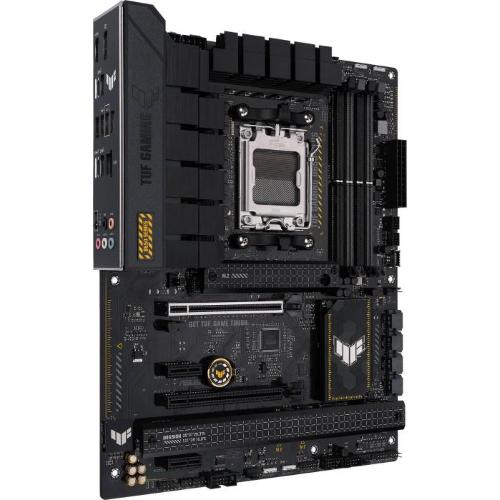

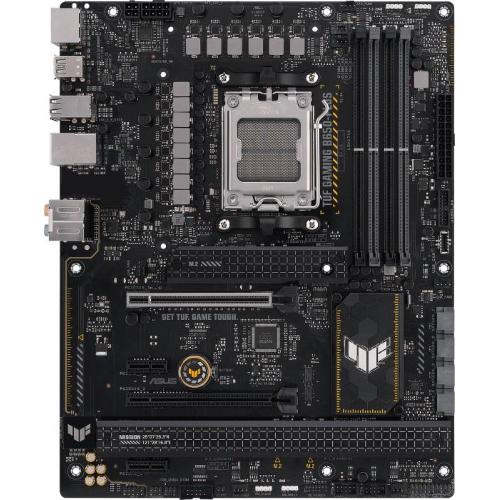

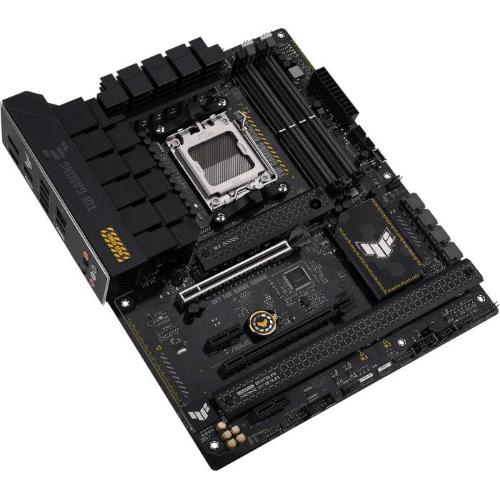

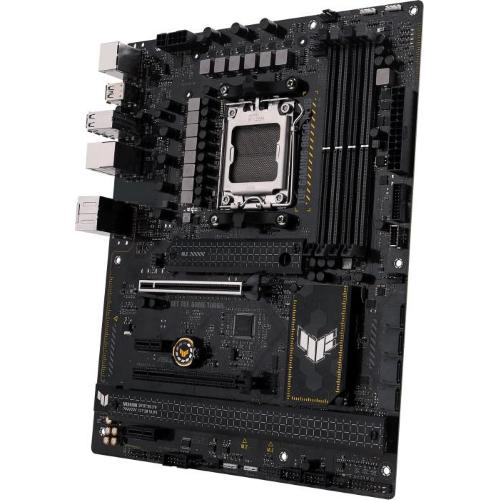

| SPECIFICHE | DETTAGLI |
|---|---|
| shape factor | ATX |
| Socket | AMD AM5 (LGA1718) |
| chipset | AMD B650 |
| CPU-Compatibility | Ryzen 7000,Ryzen 8000G,Ryzen 9000,CPU-compatibility list |
| RAM-Slots | 4x DDR5 DIMM, Dual Channel, UDIMM (ECC+Non-ECC), max. 192GB (UDIMM) |
| RAM-operating frequency OC | max. DDR5-7600 |
| RAM-operating frequency native | DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000) |
| ECC support | yes |

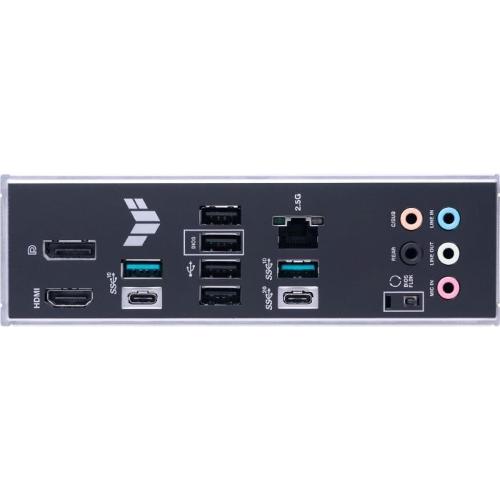

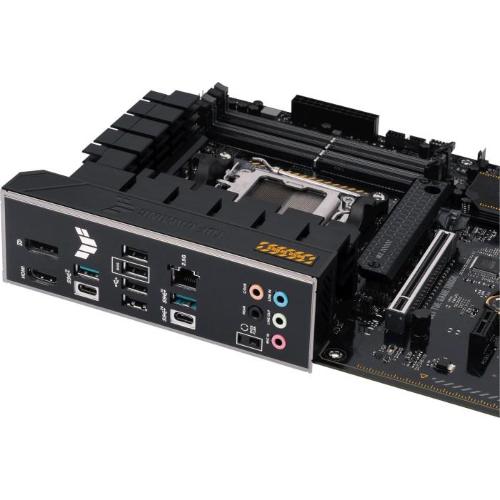

| external connectors | 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-C 3.1 (10Gb/?s), 2x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 5x 3.5mm jack (Realtek ALC1200), 1x RJ-45 (2.5GBase-T, Realtek) |
| PCIe-Slots | 2x PCIe 4.0 x16 (1x x16, 1x x4), 2x PCIe 4.0 x1 |
| M.2-Slots | 1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242) |
| Miscellaneous Interfaces | 4x SATA 6Gb/s (B650) |
| internal connectors - USB | 1x USB 3.0 Header Key-A (5Gb/?s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/?s, 2x USB-A), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other | 1x serial Header, 1x Chassis Intrusion Header, 1x Thunderbolt Header 13-Pin (ASUS), 1x COM Debug Header |
| internal connectors - Cooling | 2x CPU fan 4-Pin PWM, 4x fan 4-Pin PWM, 1x AIO-pump 4-Pin PWM |
| internal connectors - Power supply | 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V |
| internal connectors - Lighting | 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| buttons/Switches | USB BIOS Flashback (external) |
| Audio | Realtek ALC1200, DTS audio processing |
| network | Realtek (2.5Gb/?s) |
| Graphics | iGPU |
| Wireless | not available |
| RAID level | 0/?1/?10 (B650) |
| VRM-Design | 12+2+1, 14 virtual CPU-phases (3x4+2), 6 real CPU-phases (4+2) |
| MOSFETs VCORE | 12x 60A AOZ5312UQI (DrMOS) |
| MOSFETs SOC/VCCGT | 2x 60A AOZ5312UQI (DrMOS) |
| MOSFETs VDD_MISC/VCCSA/VCCAUX | 1x 30A MxL7630P (DrMOS) |
| PWM-controller | ASP2208 (RT3678BE, max. 10 phases) |
| Lighting | not available |
| BIOS | 1x 32MB (256Mb) |
| Special features | audio+solid capacitors, Diagnostic LED (LED indicators), I/?O-shield integrated, 3x M.2-passive cooler |
