BLACKMAGIC PYXIS 6K (EF-MOUNT) MOD. BM-CINECAMCPYXD6 EAN 9338716008913

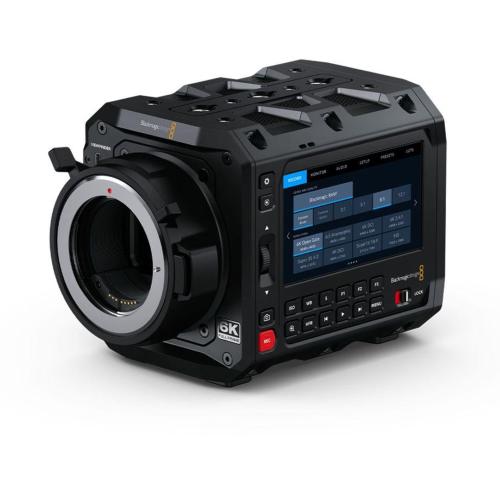

Blackmagic PYXIS 6K digital film camera (EF-mount)

The Blackmagic Pyxis 6K EF-mount version is a versatile digital film camera with a 36 x 24 mm full frame sensor and 13 stops of dynamic range. It supports EF-mount full-frame lenses from Leica, Panasonic and Sigma and enables shooting in Blackmagic RAW. Thanks to its flexible mounting options, it is ideal for various production requirements.

Features:

• Customizable high-end cinema camera
• Precise skin tones and rich, natural colors
• Versatile camera design for different production requirements
• Large full-frame 6K sensor (36 x 24 mm) with wide dynamic range
• Native resolution: 6048 x 4032 pixels (almost three times the size of a Super 35 sensor)
• Internal low-pass optical filter, matched to the sensor
• Two CFexpress media recorders
• Ethernet ports for media sharing via Blackmagic Cloud
• Simultaneous recording of 12-bit Blackmagic RAW and small H.264 proxy files
• Light and robust
• Attachment to cranes, gimbals or drones possible
• 1/4" and 3/8" threaded holes on top and bottom of the housing
• Multiple mounting points and side plates for mounting optional accessories such as handles, microphones or SSDs
• Suitable for the production of feature films, documentaries and TV shows, ideal for low-budget movies and TV spots as well as large format corporate films
• Suitable for cinematic shooting: Low depth of field, working without crop factor in anamorphic 6:5 ratio
• Dynamic range and sensitivity: 13 stops of dynamic range, dual native basic sensitivity up to ISO 25,600,
• Brilliant, low-noise images in all lighting conditions
• Shooting modes: up to 36 fps at full sensor resolution / up to 120 fps in crop mode
• Dual-native mode: high ISO sensitivity, full use of the sensor dynamic range and reduction of film grain and noise
• Supported resolutions from HD to DCI 4K and 6K
• Display: Large 4-inch HDR touchscreen, high resolution for monitoring and viewing the recordings, Full HD resolution for precise framing and focusing, ideal as a focusing aid
• Display brightness: 1500 nits (also readable in sunlight)
• Clear, easily accessible controls
• Innovative side plates with 1/4" and 3/8" holes for attaching accessories for flexible rigging
• Capture in Blackmagic RAW format to control drawing, exposure and color for post-processing
• Recording to CFexpress cards or external hard drives
• Intuitive Blackmagic OS operating system for full control of on-screen camera functions such as focus and exposure tools, 3D LUTs, HDR, metadata input, timecode, BlackmagicRAW settings and more
• Use data from 5G or 4G smartphones by connecting the Blackmagic to the smartphone’s USB-C port or wired Ethernet via the camera’s Ethernet port for real-timeMedia transfer to post-production teams worldwide
• Built-in microphones and professional audio inputs
• USB-C for external drives and control via Ethernet
• Integrated SRT and RTMP live streaming
• Wireless remote control of the camera via Bluetooth
• Full 24.6-megapixel photo capture with dedicated still button in Blackmagic RAW format
• Operation with BP-U series high capacity batteries or 12V DC (batteries not included)
• Includes DaVinci Resolve Studio software (activation key)

Scope of delivery:

• Blackmagic PYXIS 6K
• Protective cap for lens connection
• PYXIS Standard Plate
• PYXIS SSD Plate
• 60W power supply with interlocking plug and international adapters
• DaVinci Resolve Studio Activation Key

Technical data:

• Sensor megapixel, effective: 24.6 MP
• Effective sensor size: 36 x 24 mm (full frames)
• Lens mount: EF-Mount
• Aperture control and autofocus: Aperture and focus on supported lenses
• Dynamic range: 13 levels
• Dual Native ISO: 400 and 3200
• Maximum resolution for filming: 6048 x 4032 pixels, 36 fps (Open Gate 3:2)
• Full HD recording possible with 120 fps
• Display: 4" touch screen, 1500 nits, 1920 x 1080 pixels
• Connections:
• Total video outputs:
  • 1x 12G-SDI up to 2160p 60
  • 1x Viewfinder USB-C with power, data, video and locking connector
• Analog audio inputs:
  • 1x analog mini XLR audio input, switchable between microphone with phantom power and line level (up to +14dBu)
  • 1x 3.5 mm stereo - input
• Analog audio output:
  • 1x 3.5 mm headphone jack
• Reference inputs:
  • Tri-Sync/Black Burst and Timecode
• Computer interface: USB Type-C for external drive recordings, PTP camera control and software updates
• 1x Ethernet RJ-45 gigabit port with support for 10/100/1000 BASE-T
• Built-in stereo microphones and 1x mono speaker
• Media: 2x CFexpress Type B card slot
• Battery: Compatible with BP-U series (not included)
• Dimensions (L x W x H): 151 x 106 x 119 mm
• Weight: about 1.5 kg
