Ultimo Aggiornamento: 20:22 04/07/2025
| Prezzo: | €719,54 Iva Compresa |
|---|---|
| Spese di trasporto: | A partire da € 8,54 Iva CompresaMaggiori dettagli |
| Garanzia: | |
| Pagamenti: |  Sconto esclusivo per pagamenti con bonifico bancario! |
| Nota Bene: | |
| Fatturazione: | |
| Produttore: | Maggiori dettagli |
| Avvertenze: | |
| Disponibilità: | - Disponibile - Spedizione in 3/5 giorni lavorativi |
| Quantità: |
| SPECIFICHE | DETTAGLI |
|---|---|
| shape factor | E-ATX, 12"x11.2" (304.8x284.5mm) |
| Socket | Intel 1851 (LGA1851) |
| chipset | Intel Z890 |
| CPU-Compatibility | Core Ultra 200S,CPU-compatibility list |
| RAM-Slots | 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/?CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM) |
| RAM-data installment OC | max. DDR5-9500 |
| RAM-data installment native | DDR5-5600 UDIMM/?DDR5-6400 CUDIMM (Core Ultra 200S) |
| ECC support | no |

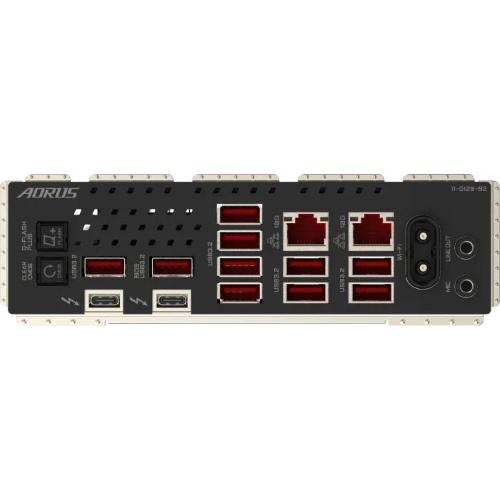

| external connectors | 2x Thunderbolt 4 /? USB4 with DisplayPort 1.4 (40Gb/?s, PD-Out, HDCP 2.3, iGPU), 10x USB-A 3.1 (10Gb/?s), 2x 3.5mm jack (ESS ES9280), 2x RJ-45 (10GBase-T, Marvell AQtion AQC113CS), 2x antenna connector Quick Connect |
| PCIe-Slots | 2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/?x0 or x8/?x8], 1x PCIe 4.0 x16 (x4) |
| M.2-Slots | 1x M.2/?M-Key (PCIe 5.0 x4, 25110/?2580/?22110/?2280), 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280), 1x M.2/?E-Key (2230, occupied with WiFi+BT module) |
| Miscellaneous Interfaces | 4x SATA 6Gb/s (Z890) |
| internal connectors - USB | 1x USB 3.2 Header Key-A (20Gb/?s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/?s, 4x USB-A), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other | 1x TPM Header |
| internal connectors - Cooling | 1x CPU fan 4-Pin PWM, 1x CPU fan/?pump 4-Pin PWM, 4x fan 4-Pin PWM, 4x fan/?pump 4-Pin PWM, 2x Thermal-sensor Header, 1x Noise-sensor Header |
| internal connectors - Power supply | 1x 24-Pin ATX, 2x 8-Pin EPS12V |
| internal connectors - Lighting | 1x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 4x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, GIGABYTE Gen2) |
| buttons/Switches | clear-CMOS-Button (external), USB BIOS Flashback/?Q-Flash Plus (external), Power-Button (internal), Reset-Button (internal) |
| Audio | ESS ES9280, DAC (ESS ES9118), DTS:X Ultra |
| network | Marvell AQtion AQC113CS (10Gb/?s) x2 |
| Graphics | iGPU |
| Wireless | Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Intel BE200), Bluetooth 5.4 |
| RAID level | 0/?1/?5/?10 (Z890) |
| VRM-Design | 20+1+2, 21 virtual CPU-phases (2x10+1), 11 real CPU-phases (10+1) |
| MOSFETs VCORE | 20x 110A R2209004 (SPS) |
| MOSFETs SOC/VCCGT | 1x 80A ISL99380 (SPS) |
| MOSFETs VDD_MISC/VCCSA/VCCAUX | 2x 40A NCP81526C (DrMOS) |
| PWM-controller | RAA229130 (max. 12 phases) + RAA229134 (max. 4 phases) |
| Lighting | RGB, 2 zones (chipset cooler, I/?O cover) |
| BIOS | 1x 32MB (256Mb) |
| Special features | audio+solid capacitors, Diagnostic LED (LED indicators), Diagnostic LED (segment indication), I/?O-shield integrated, Backplate, voltage measurement points, 4x M.2-passive cooler |
