| Prezzo: | €167,30 Iva Compresa |
|---|---|
| Spese di trasporto: | A partire da € 8,54 Iva CompresaMaggiori dettagli |
| Garanzia: | |
| Pagamenti: |  Sconto esclusivo per pagamenti con bonifico bancario! |
| Nota Bene: | |
| Fatturazione: | |
| Produttore: | Maggiori dettagli |
| Avvertenze: | |
| Disponibilità: | - Disponibile - Spedizione in 3/5 giorni lavorativi |
| Quantità: |
| SPECIFICHE | DETTAGLI |
|---|---|
| shape factor | ATX |
| Socket | Intel 1700 (LGA1700) |
| chipset | Intel Z790 |
| CPU-Compatibility | Celeron G6000,Pentium Gold G7000,Core i-12000,Core i-13000,Core i-14000,CPU-compatibility list |
| RAM-Slots | 4x DDR4 DIMM, Dual Channel, UDIMM (Non-ECC), max. 128GB (UDIMM) |
| RAM-data installment OC | max. DDR4-5333 |
| RAM-data installment native | DDR4-3200 (Celeron G6000), DDR4-3200 (Pentium Gold G7000), DDR4-3200 (Core i-12000), DDR4-3200 (Core i-13000), DDR4-3200 (Core i-14000) |
| ECC support | no |

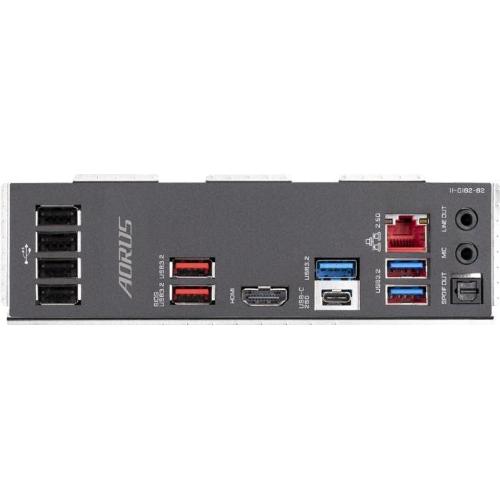

| external connectors | 1x HDMI 2.0 (iGPU), 1x USB-C 3.2 (20Gb/?s), 2x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 3x USB 3.0 (5Gb/?s), 1x toslink S/?PDIF Out, 2x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 2x antenna connector RP-SMA |
| PCIe-Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x4) |
| M.2-Slots | 3x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280) |
| Miscellaneous Interfaces | 4x SATA 6Gb/s (Z790) |
| internal connectors - USB | 1x USB 3.1 Header Key-A (10Gb/?s, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/?s, 2x USB-A), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other | 1x TPM Header, 1x Thunderbolt Header 5-Pin (ASRock/?ASUS/?GIGABYTE/?MSI), 1x RTD3 Header, 1x Chassis Intrusion Header |
| internal connectors - Cooling | 1x CPU fan 4-Pin PWM, 1x CPU fan/?pump 4-Pin PWM, 3x fan 4-Pin PWM, 1x fan/?pump 4-Pin PWM |
| internal connectors - Power supply | 1x 24-Pin ATX, 2x 8-Pin EPS12V |
| internal connectors - Lighting | 2x 4-Pin RGB (+12V/?G/?R/?B, max. 2A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 5A) |
| buttons/Switches | clear-CMOS-Button (internal), Power-Button (internal), Reset-Button (internal), USB BIOS Flashback/?Q-Flash Plus (internal) |
| Audio | Realtek ALC897 |
| network | Realtek RTL8125BG (2.5Gb/?s) |
| Graphics | iGPU |
| Wireless | not available |
| RAID level | 0/?1/?5/?10 (Z790) |
| VRM-Design | 16+1, 17 virtual CPU-phases (2x8+1), 9 real CPU-phases (8+1) |
| MOSFETs VCORE | 16x 60A NCP303160 (DrMOS) |
| MOSFETs SOC/VCCGT | 1x 60A NCP303160 (DrMOS) |
| PWM-controller | NCP81530R (max. 10 phases) |
| Lighting | RGB, 1 zone (chipset cooler) |
| BIOS | 1x 32MB (256Mb) |
| Special features | audio+solid capacitors, Diagnostic LED (LED indicators), I/?O-shield integrated, 4x M.2-passive cooler, supports AMD 2-Way-CrossFireX (x16/?x4) |
