| Prezzo: | €294,61 Iva Compresa |
|---|---|
| Spese di trasporto: | A partire da € 8,54 Iva CompresaMaggiori dettagli |
| Garanzia: | |
| Pagamenti: |  Sconto esclusivo per pagamenti con bonifico bancario! |
| Nota Bene: | |
| Fatturazione: | |
| Produttore: | Maggiori dettagli |
| Avvertenze: | |
| Disponibilità: | - Disponibile - Spedizione in 3/5 giorni lavorativi |
| Quantità: |
| SPECIFICHE | DETTAGLI |
|---|---|
| shape factor | ATX |
| Socket | AMD AM5 (LGA1718) |
| chipset | AMD X870 |
| CPU-Compatibility | Ryzen 7000,Ryzen 8000G,Ryzen 9000,CPU-compatibility list |
| RAM-Slots | 4x DDR5 DIMM, Dual Channel, UDIMM (ECC+Non-ECC), max. 256GB (UDIMM) |
| RAM-operating frequency OC | max. DDR5-8000 |
| RAM-operating frequency native | DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000) |
| ECC support | yes |

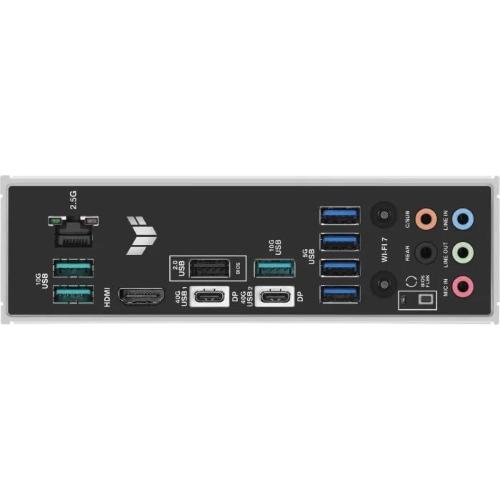

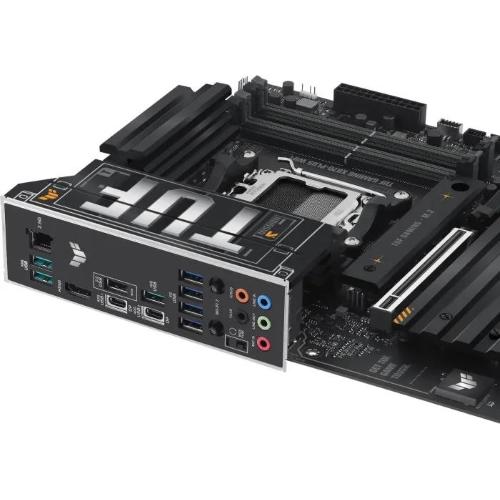

| external connectors | 1x HDMI 2.1 (iGPU), 2x USB4 with DisplayPort 1.4a (40Gb/?s, PD 15W, iGPU), 3x USB-A 3.1 (10Gb/?s), 4x USB-A 3.0 (5Gb/?s), 1x USB-A 2.0 (480Mb/?s), 5x 3.5mm jack (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek), 2x antenna connector Quick Connect |
| PCIe-Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4) |
| M.2-Slots | 2x M.2/?M-Key (PCIe 5.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (2230, occupied with WiFi+BT module) |
| Miscellaneous Interfaces | 2x SATA 6Gb/s (X870) |
| internal connectors - USB | 1x USB 3.2 Header Key-A (20Gb/?s, PD 30W, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/?s, 2x USB-A), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other | 1x serial Header, 1x Chassis Intrusion Header |
| internal connectors - Cooling | 2x CPU fan 4-Pin PWM, 4x fan 4-Pin PWM, 1x AIO-pump 4-Pin PWM, 1x pump 4-Pin PWM, 1x Thermal-sensor Header |
| internal connectors - Power supply | 1x 24-Pin ATX, 2x 8-Pin EPS12V |
| internal connectors - Lighting | 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| buttons/Switches | USB BIOS Flashback (external) |
| Audio | Realtek ALC1220, DTS audio processing |
| network | Realtek (2.5Gb/?s) |
| Graphics | iGPU |

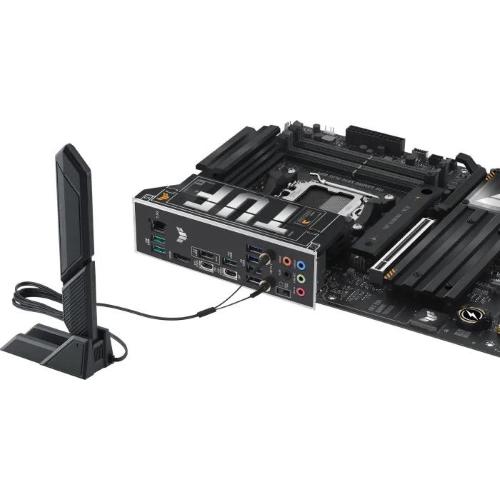

| Wireless | Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2), Bluetooth 5.4 |
| RAID level | 0/?1/?10 (X870) |
| VRM-Design | 16+2+1, 18 virtual CPU-phases (2x8+2), 10 real CPU-phases (8+2) |
| MOSFETs VCORE | 16x 80A MP86670 (SPS) |
| MOSFETs SOC/VCCGT | 2x 80A MP86670 (SPS) |
| MOSFETs VDD_MISC/VCCSA/VCCAUX | 1x 80A SiC629 (DrMOS) |
| PWM-controller | ASP2206 (MP2857, max. 12 phases) |
| Lighting | RGB, 1 zone (page right) |
| BIOS | 1x 32MB (256Mb) |
| Special features | audio+solid capacitors, Diagnostic LED (LED indicators), I/?O-shield integrated, 3x M.2-passive cooler |
