Ultimo Aggiornamento: 14:48 30/05/2025
| Prezzo: | €401,34 Iva Compresa |
|---|---|
| Spese di trasporto: | A partire da € 8,54 Iva CompresaMaggiori dettagli |
| Garanzia: | |
| Pagamenti: |  Sconto esclusivo per pagamenti con bonifico bancario! |
| Nota Bene: | |
| Fatturazione: | |
| Produttore: | Maggiori dettagli |
| Avvertenze: | |
| Disponibilità: | - Disponibile - Spedizione in 3/5 giorni lavorativi |
| Quantità: |
| SPECIFICHE | DETTAGLI |
|---|---|
| shape factor | ATX |
| Socket | Intel 1851 (LGA1851) |
| chipset | Intel Z890 |
| CPU-Compatibility | Core Ultra 200S,CPU-compatibility list |
| RAM-Slots | 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/?CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM) |
| RAM-operating frequency OC | max. DDR5-8600 |
| RAM-operating frequency native | DDR5-5600 UDIMM/?DDR5-6400 CUDIMM (Core Ultra 200S) |
| ECC support | no |

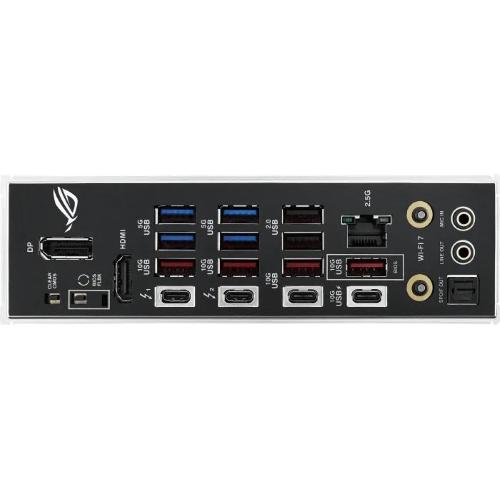

| external connectors | 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 /? USB4 with DisplayPort 2.1 (40Gb/?s, PD 15W, iGPU), 1x USB-C 3.1 (10Gb/?s, PD 30W), 1x USB-C 3.1 (10Gb/?s), 4x USB-A 3.1 (10Gb/?s), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x toslink S/?PDIF Out (Realtek ALC4080), 2x 3.5mm jack (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I226-V), 2x antenna connector Quick Connect |
| PCIe-Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4) |
| M.2-Slots | 1x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280/?2260/?2242), 2x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?E-Key (2230, occupied with WiFi+BT module) |
| Miscellaneous Interfaces | 4x SATA 6Gb/s (Z890) |
| internal connectors - USB | 1x USB 3.2 Header Key-A (20Gb/?s, PD 60W, QC4+, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/?s, 4x USB-A), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other | 1x ASUS Thunderbolt USB4 Header (TB(USB4)), 1x Chassis Intrusion Header |
| internal connectors - Cooling | 2x CPU fan 4-Pin PWM, 5x fan 4-Pin PWM, 1x AIO-pump 4-Pin PWM, 1x Thermal-sensor Header |
| internal connectors - Power supply | 1x 24-Pin ATX, 2x 8-Pin EPS12V |
| internal connectors - Lighting | 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| buttons/Switches | clear-CMOS-Button (external), USB BIOS Flashback (external), Power-Button (internal) |
| Audio | Realtek ALC4080, AMP (Savitech SV3H712), ASUS SupremeFX |
| network | Intel I226-V (2.5Gb/?s) |
| Graphics | iGPU |
| Wireless | Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Intel BE200), Bluetooth 5.4 |
| RAID level | 0/?1/?5/?10 (Z890) |
| VRM-Design | 16+1+2+2, 17 virtual CPU-phases (2x8+1), 9 real CPU-phases (8+1) |
| MOSFETs VCORE | 16x 110A |
| MOSFETs SOC/VCCGT | 1x 90A |
| MOSFETs VDD_MISC/VCCSA/VCCAUX | 2x 90A |
| MOSFETs VNNAON | 2x 80A |
| Lighting | RGB, 1 zone (I/?O cover) |
| BIOS | 1x 32MB (256Mb) |
| Special features | audio+solid capacitors, Diagnostic LED (LED indicators), I/?O-shield integrated, 5x M.2-passive cooler |
