| Prezzo: | €195,18 Iva Compresa |
|---|---|
| Spese di trasporto: | A partire da € 8,54 Iva CompresaMaggiori dettagli |
| Garanzia: | |
| Pagamenti: |  Sconto esclusivo per pagamenti con bonifico bancario! |
| Nota Bene: | |
| Fatturazione: | |
| Produttore: | Maggiori dettagli |
| Avvertenze: | |
| Disponibilità: | - Disponibile - Spedizione in 3/5 giorni lavorativi |
| Quantità: |
| SPECIFICHE | DETTAGLI |
|---|---|
| shape factor | ATX |
| Socket | Intel 1700 (LGA1700) |
| chipset | Intel B760 |
| CPU-Compatibility | Celeron G6000,Pentium Gold G7000,Core i-12000,Core i-13000,Core i-14000,CPU-compatibility list |
| RAM-Slots | 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC), max. 256GB (UDIMM) |
| RAM-data installment native | DDR5-4800 (Celeron G6000), DDR5-4800 (Pentium Gold G7000), DDR5-4800 (Core i-12000), DDR5-4800/?DDR5-5600 (Core i-13000), DDR5-4800/?DDR5-5600 (Core i-14000) |
| ECC support | no |

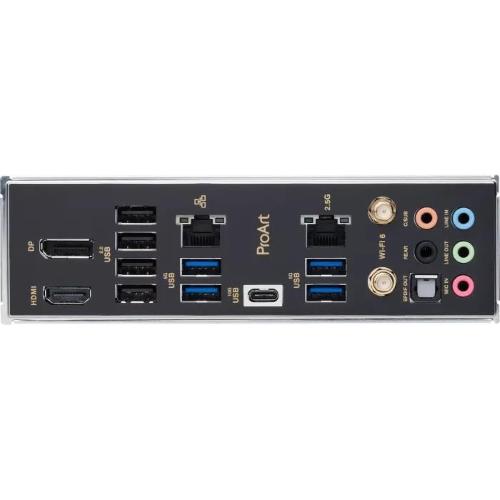

| external connectors | 1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/?s), 4x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x toslink S/?PDIF Out, 5x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek), 1x RJ-45 (1000Base-T, Intel I219-V), 2x antenna connector RP-SMA |
| PCIe-Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1 |
| M.2-Slots | 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (2230, occupied with WiFi+BT module) |
| Miscellaneous Interfaces | 4x SATA 6Gb/s (B760) |
| internal connectors - USB | 1x USB 3.2 Header Key-A (20Gb/?s, PD-Out 60W, QC4+, 1x USB-C), 1x USB 3.0 Header 20-Pin (5Gb/?s, 2x USB-A), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other | 1x serial Header, 1x TPM Header, 1x Thunderbolt Header 13-Pin (ASUS), 1x COM Debug Header |
| internal connectors - Cooling | 2x CPU fan 4-Pin PWM, 4x fan 4-Pin PWM, 1x AIO-pump 4-Pin PWM, 1x Thermal-sensor Header |
| internal connectors - Power supply | 1x 24-Pin ATX, 1x 8-Pin EPS12V, 1x 4-Pin ATX12V, 1x 6-Pin PCIe |
| internal connectors - Lighting | 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Audio | Realtek ALC897 |
| network | Realtek (2.5Gb/?s), Intel I219-V (1Gb/?s) |
| Graphics | iGPU |
| Wireless | Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX201), Bluetooth 5.2 |
| RAID level | 0/?1/?5/?10 (B760) |
| VRM-Design | 12+1, 13 virtual CPU-phases (2x6+1), 7 real CPU-phases (6+1) |
| MOSFETs VCORE | 12x 50A SiC654 (DrMOS) |
| MOSFETs SOC/VCCGT | 1x 50A SiC654 (DrMOS) |
| PWM-controller | ASP2100 (RT3628AE, max. 9 phases) |
| Lighting | not available |
| BIOS | 1x 16MB (128Mb) |
| Special features | audio+solid capacitors, Diagnostic LED (LED indicators), I/?O-shield integrated, 2x M.2-passive cooler |
