| CPU |
Support
Intel
® Core™ Ultra
Processors (Series 2) , LGA1851 |
|
Supports
Intel
® Turbo Boost
Technology 2.0 and
Intel
® Turbo Boost
Max Technology 3.0** |
|
* Refer
to https://www.asus.com/support/download-center/
for CPU support list. |
|
**
Intel
® Turbo Boost
Max Technology 3.0 support depends on the CPU
types. |
| Chipset |
Intel
® H810
Chipset |
| Memory |
2 x DIMM slots,
max. 96GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered
DIMM (CUDIMM)* |
|
Dual channel
memory architecture |
|
DIMM
Fit |
|
Supports
Intel
® Extreme Memory
Profile (XMP) memory module |
|
ASUS Enhanced
Memory Profile II (AEMP II) |
|
* Supported memory types, data rate (speed),
and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory
Support list under the Support tab of product information site or
visit https://www.asus.com/support/download-center/
. Adjustments will be made based on the specifications of
mass-produced memory products available on the
market. |
|
** Non-ECC,
un-buffered DDR5 memory supports On-Die ECC function. |
| Graphics |
1 x
DisplayPort** |
|
1 x HDMI™
port*** |
|
* Graphics specifications may vary between CPU
types. Please refer
to www.intel.com
for any updates. |
|
** Supports max.
4K@60Hz as specified in DisplayPort 1.4. |
|
*** Supports
4K@60Hz as specified in HDMI 2.1. |
|
**** VGA
resolution support depends on processors' or graphic cards'
resolution. |
| Expansion Slots |
Intel
® Core™ Ultra
Processors (Series 2) |
|
1 x PCIe 4.0 x16
slot |
|
Intel
® H810
Chipset |
|
1 x PCIe 4.0 x1
slot |
|
- To ensure compatibility of the device
installed, please refer
to https://www.asus.com/support/download-center/
for the list of supported
peripherals. |
| Storage |
Total supports 2
x M.2 slots and 4 x SATA 6Gb/s ports |
|
Intel
® H810
Chipset |
|
M.2_1 slot (Key
M), type 2280 (supports PCIe 4.0 x4 mode) |
|
M.2_2 slot (Key
M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
|
4 x SATA 6Gb/s
ports |
| Ethernet |
1 x
Intel
® 1Gb Ethernet
port |
|
ASUS
LANGuard |
| Wireless &
Bluetooth
® |
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth
® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module
manufacturer's website for the latest
specifications. |
| USB |
Rear USB (Total 6
ports) |
|
2 x USB 10Gbps
ports (2 x Type-A) |
|
4 x USB 2.0 ports
(4 x Type-A) |
|
Front USB (Total
5 ports) |
|
1 x USB 5Gbps connector (supports USB
Type-C
®)* |
|
1 x USB 5Gbps
header supports 2 additional USB 5Gbps ports |
|
1 x USB 2.0
header supports 2 additional USB 2.0 ports |
|
* USB
Type-C
® power delivery
output: max. 5V/3A |
|
** USB_E1 port,
USB_E2 port, USB_E3 port and USB_E4 port share the
bandwidth. |
| Audio |
Realtek 7.1
Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel
Jack-retasking
- Supports up to 24-Bit/192 kHz playback |
|
Audio
Features |
|
- Audio
Shielding |
|
- Premium audio
capacitors |
|
- Dedicated audio
PCB layers |
|
* A chassis with
an HD audio module in the front panel is required to support 7.1
Surround Sound audio output. |

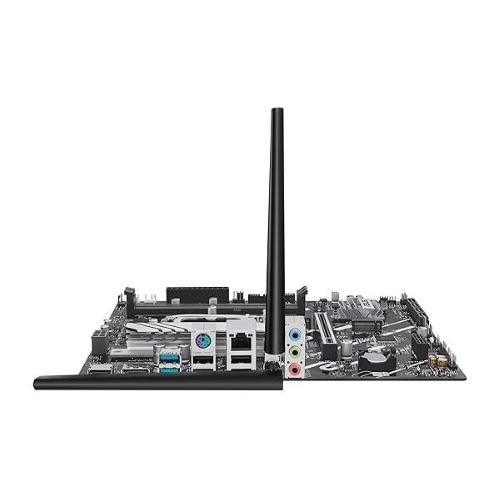

| Back Panel I/O Ports |
2 x USB 10Gbps
ports (2 x Type-A) |
|
4 x USB 2.0 ports
(4 x Type-A) |
|
1 x
DisplayPort |
|
1 x HDMI™
port |
|
1 x Wi-Fi
module |
|
1 x
Intel
® 1Gb Ethernet
port |
|
3 x Audio
jacks |
|
1 x PS/2
keyboard/mouse combo port |
| Internal I/O Connectors |
Fan and Cooling
Related |
|
1 x 4-pin CPU Fan
header |
|
2 x 4-pin Chassis
Fan headers |
|
Power
Related |
|
1 x 24-pin Main
Power connector |
|
1 x 8-pin +12V
CPU Power connector |
|
Storage
Related |
|
2 x M.2 slots
(Key M) |
|
4 x SATA 6Gb/s
ports |
|
USB |
|
1 x USB 5Gbps connector (supports USB
Type-C
® ) |
|
1 x USB 5Gbps
header supports 2 additional USB 5Gbps ports |
|
1 x USB 2.0
header supports 2 additional USB 2.0 ports |
|
Miscellaneous |
|
3 x Addressable
Gen2 headers |
|
1 x Clear CMOS
header |
|
1 x COM Port
header |
|
1 x Front Panel
Audio header (F_AUDIO) |
|
1 x S/PDIF Out
header |
|
1 x SPI TPM
header (14-1 pin) |
|
1 x 10-1 pin
Front Panel System header |
| Special Features |
ASUS 5X
PROTECTION III |
|
- DIGI+
VRM |
|
-
LANGuard |
|
- Overvoltage
protection |
|
- SafeSlot
Core+ |
|
- Stainless-steel
back I/O |
|
ASUS
Q-Design |
|
-
Q-DIMM |
|
-
Q-Dashboard |
|
- Q-LED
Core |
|
-
Q-Slot |
|
ASUS Thermal
Solution |
|
- VRM heatsink
design |
|
Aura
Sync |
|
- Addressable
Gen2 headers |
| Software Features |
ASUS Exclusive
Software |
|
Armoury
Crate |
|
- Aura
Creator |
|
- Aura
Sync |
|
- Fan Xpert
2+ |
|
- Power
Saving |
|
ASUS
DriverHub |
|
ASUS
GlideX |
|
Norton 360 Deluxe
(60 Days Free Trial) |
|
WinRAR (40 Days
Free Trial) |
|
UEFI
BIOS |
|
ASUS EZ
DIY |
|
- ASUS CrashFree
BIOS 3 |
|
- ASUS EZ
Flash |
|
- ASUS UEFI BIOS
EZ Mode |
|
- ASUS
MyHotkey |
| BIOS |
256 (128+128) Mb
Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME,
PXE |
| Accessories |
Cables |
|
2 x SATA 6Gb/s
cables |
|
Miscellaneous |
|
1 x ASUS Wi-Fi
moving antenna |
|
1 x I/O
shield |
|
1 x Screw package
for M.2 SSD |
|
Documentation |
|
1 x Quick start
guide |
| Operating System |
Windows 11
(22H2 & later), Windows 10 64-bit(21H2 & later) |
| Form Factor |
micro-ATX Form
Factor |
|
9.6 inch x 8.75
inch (24.4 cm x 22.2 cm) |
|
|
|
|
| Dimension |
|
| Product (mm)_ L*W*H |
244mm*222mm*39mm |
| Color Box (mm)_ L*W*H |
270mm*263mm*51.5mm |
| Weight |
|
| Motherboard only |
0.560kg |
| Full package |
0.838kg |
