| Prezzo: | €131,02 Iva Compresa |
|---|---|
| Spese di trasporto: | A partire da € 8,54 Iva CompresaMaggiori dettagli |
| Garanzia: | |
| Pagamenti: |  Sconto esclusivo per pagamenti con bonifico bancario! |
| Nota Bene: | |
| Fatturazione: | |
| Produttore: | Maggiori dettagli |
| Avvertenze: | |
| Disponibilità: | - Disponibile - Spedizione in 3/5 giorni lavorativi |
| Quantità: |

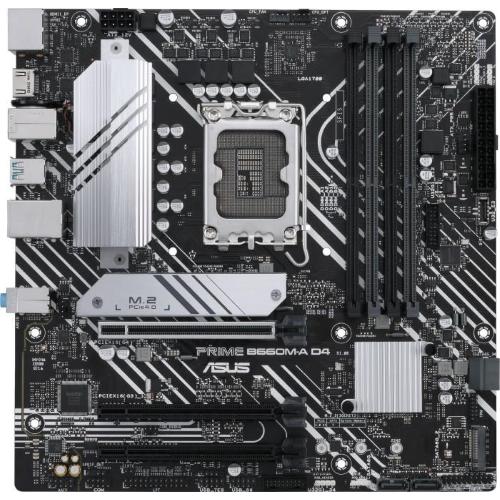

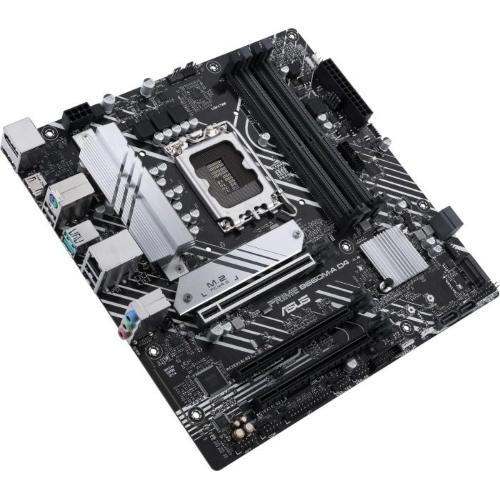

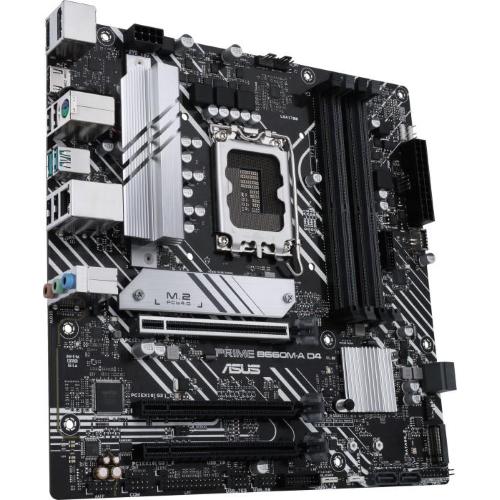

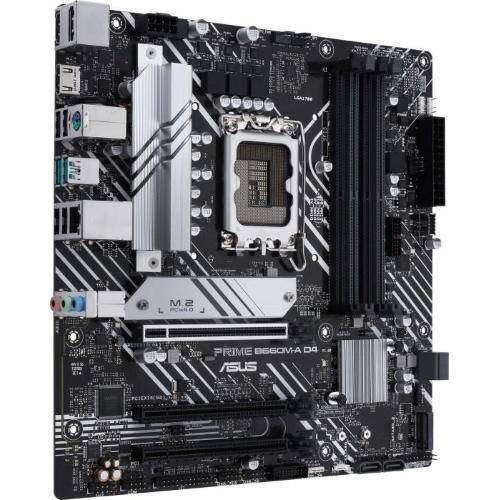

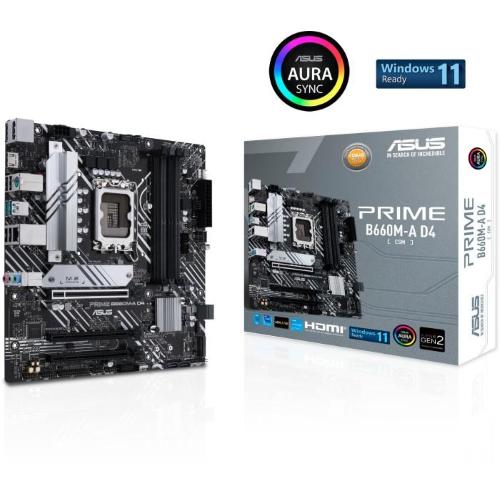

| SPECIFICHE | DETTAGLI |
|---|---|
| shape factor | µATX |
| Socket | Intel 1700 (LGA1700) |
| chipset | Intel B660 |
| CPU-Compatibility | Celeron G6000,Pentium Gold G7000,Core i-12000,Core i-13000,Core i-14000,CPU-compatibility list |
| RAM-Slots | 4x DDR4 DIMM, Dual Channel, UDIMM (Non-ECC), max. 128GB (UDIMM) |
| RAM-data installment OC | max. DDR4-5333 |
| RAM-data installment native | DDR4-3200 (Celeron G6000), DDR4-3200 (Pentium Gold G7000), DDR4-3200 (Core i-12000), DDR4-3200 (Core i-13000), DDR4-3200 (Core i-14000) |
| ECC support | no |
| external connectors | 1x DisplayPort 1.4 (iGPU), 2x HDMI 2.1 (iGPU), 2x USB-A 3.1 (10Gb/?s, PCH), 4x USB-A 2.0 (480Mb/?s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (1000Base-T, Intel I219-V), 1x PS/?2 Combo |
| PCIe-Slots | 1x PCIe 4.0 x16, 2x PCIe 3.0 x16 (1x x4, 1x x1) |
| M.2-Slots | 2x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242) |
| Miscellaneous Interfaces | 4x SATA 6Gb/s (B660) |
| internal connectors - USB | 1x USB 3.0 Header Key-A (5Gb/?s, 1x USB-C, B660), 2x USB 3.0 Header 20-Pin (5Gb/?s, 4x USB-A, B660), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A), 1x USB 2.0 header 4-Pin (480Mb/?s, 1x USB-A) |
| internal connectors - other | 1x serial Header, 1x parallel Header, 1x TPM Header, 1x S/?PDIF Header, 1x Chassis Intrusion Header, 1x COM Debug Header |
| internal connectors - Cooling | 2x CPU fan 4-Pin PWM, 2x fan 4-Pin PWM |
| internal connectors - Power supply | 1x 24-Pin ATX, 1x 8-Pin EPS12V |
| internal connectors - Lighting | 1x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Audio | Realtek ALC897 |
| network | Intel I219-V (1Gb/?s) |
| Graphics | iGPU |
| Wireless | not available |
| RAID level | 0/?1/?5/?10 (B660) |
| VRM-Design | 6+1, 7 virtual CPU-phases (6+1), 7 real CPU-phases (6+1) |
| MOSFETs VCORE | 6x 58A SiRA14BDP/?12x SiRA12BDP (High-/?Low-Side) |
| MOSFETs SOC/VCCGT | 1x 58A SiRA14BDP/?2x SiRA12BDP (High-/?Low-Side) |
| PWM-controller | ASP2100 (RT3628AE, max. 9 phases) |
| Lighting | not available |
| BIOS | 1x 16MB (128Mb) |
| Special features | audio+solid capacitors, white Build compatible (PCB primary black), 1x M.2-passive cooler |
