BRINNO BCC2000 PLUS MOD. BCC2000 PLUS EAN 4712417431648

Brinno BCC2000Plus

Present your project to the world!
Brinno BCC2000Plus is the ultimate time-lapse project camera package to create professional FULL HD time-lapse videos with minimum effort and low cost.

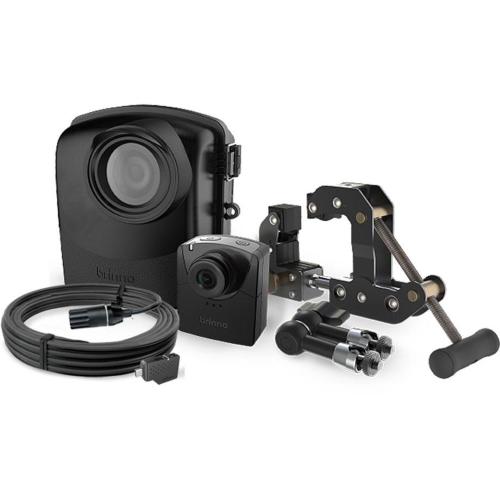

The BCC2000Plus product package consists of a FULL HD/HDR time-lapse camera TLC2000, a flexible and extra robust industrial grade camera mount ACC1000, a weatherproof housing ATH2000 (IPX5) with space for up to 16 additional AA batteries¹ to quadruple the battery life of your construction camera and and the extender kit AFB1000 with 10 m cable for instant access to your camera via your laptop (Windows 64-bit operating system).

(¹ The battery slot of the ATH2000 only supports alkaline batteries, as lithium batteries, Ni-MH batteries and zinc-carbon batteries greatly reduce the runtime of the camera)

Highlights:

• Flexible schedule setup
• Interchangeable lens
• Extremely long battery life
• Adjustable camera mount
• IPX5 waterproof housing
• HDR & Full HD
• Access to camera without a ladder
• Simultaneous recording and downloading
• Brinno Command Centre (Windows 64-bit operating system)

HDR & FHD image technology
The powerful HDR and FULL HD image sensors enable even better, sharper and higher-contrast images. Now you can record fantastic, high-quality time-lapse videos at any time - indoors or outdoors, day or night.

Flexible schedule setup
Customise the time interval and recording schedule to suit your project. The Brinno BCC2000Plus quickly and reliably transforms the recordings into short videos that vividly illustrate any document or project.

IPX5 weatherproof housing
In harsh, windy and wet weather conditions, a weatherproof and reliable housing is essential.

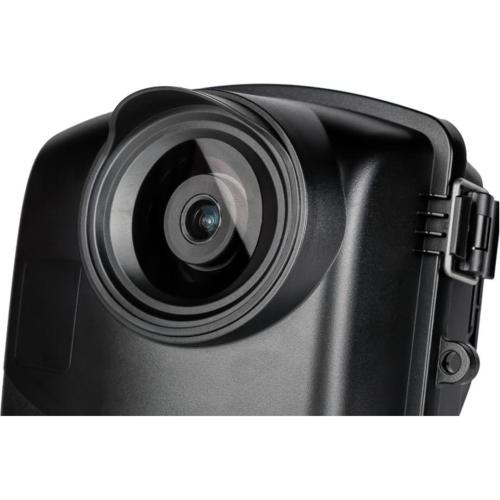

Interchangeable lens
With the CS mount interface, you can choose between various high-quality Brinno zoom lenses to create time-lapse videos with even greater detail.

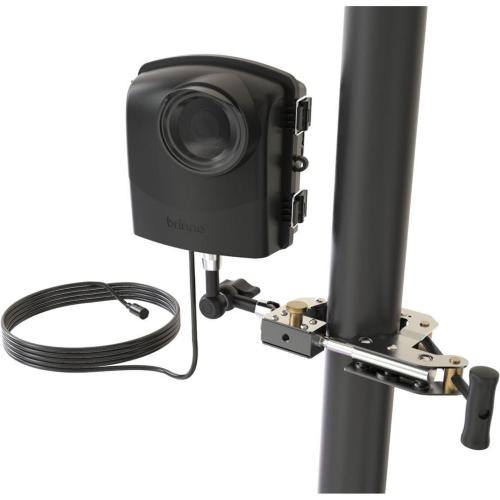

Flexibly adjustable camera mount

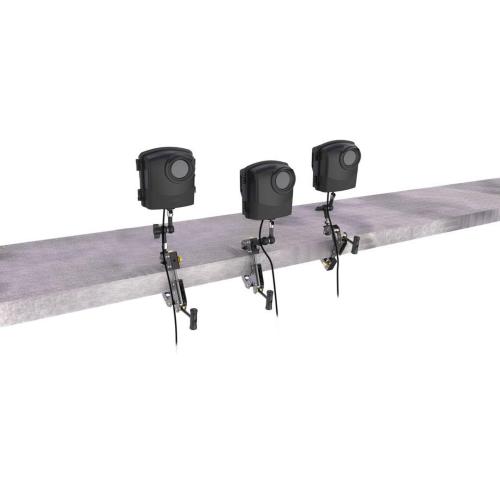

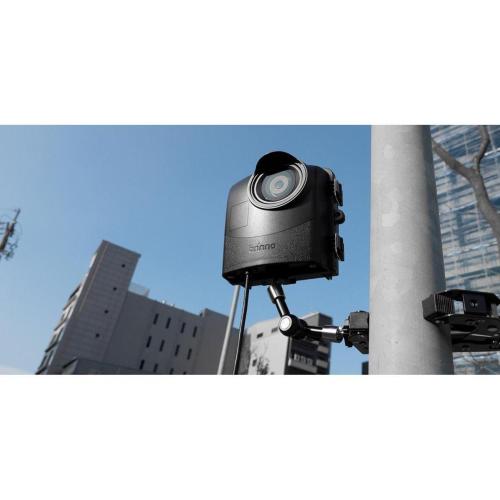

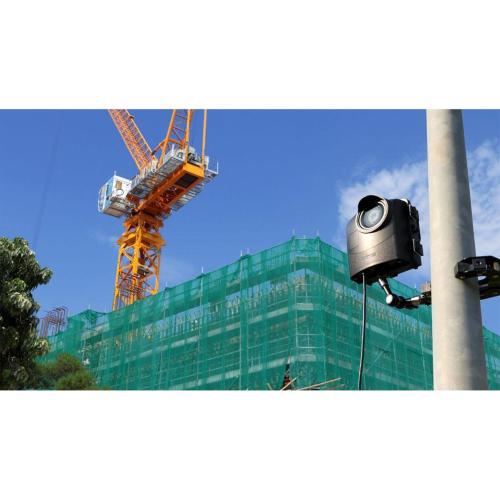

The adjustable, industrial-quality camera mount can be set to thicknesses from a minimum of 1 mm to a maximum of 90 mm. The bracket fixes the camera firmly and securely and can be attached to any object on the construction site. The camera can be rotated through 360° and tilted up to 90°. This enables simple and flexible positioning of the camera. ROBUST, DURABLE and FLEXIBLE.

Ground control
Have complete control over your camera settings while keeping your feet firmly on the ground. The BCC2000Plus makes using a Brinno camera effortless and efficient. Perform all common camera functions in the blink of an eye, without having to fumble with SD cards or a camera LCD screen.

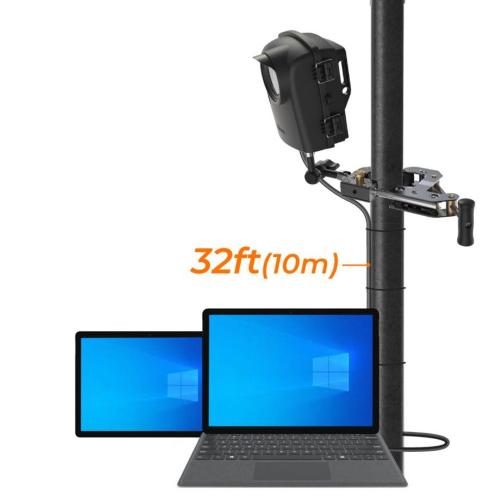

Access without a ladder

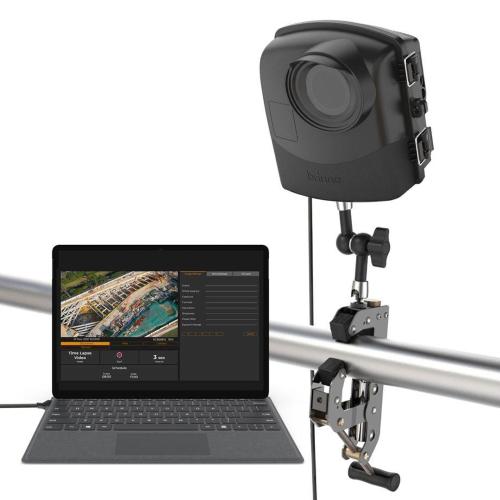

Safety on site is essential for any construction project. With the BCC2000Plus, you have truly ladder-free access to your camera. With the camera extender kit (AFB1000), you no longer have to climb up to access your camera. Connect the 10 metre cable to your laptop (Windows 64-bit) and you have instant access to your camera to download files, adjust the shooting interval and image settings, schedule, start and stop shooting. You can even check the battery life of your camera and the remaining SD card memory.

An enhanced time-lapse experience
Freedom to check your camera as needed. Even time-lapse beginners can rest easy knowing that they can easily check the recording status as part of their regular rounds. No need to climb to great heights to check your camera.

Unlimited power
Combined with the worry-free battery life of the power housing (ATH2000) and the ability of the extender kit to connect to an external power supply, the BCC2000Plus is the best solution for long-term recording.

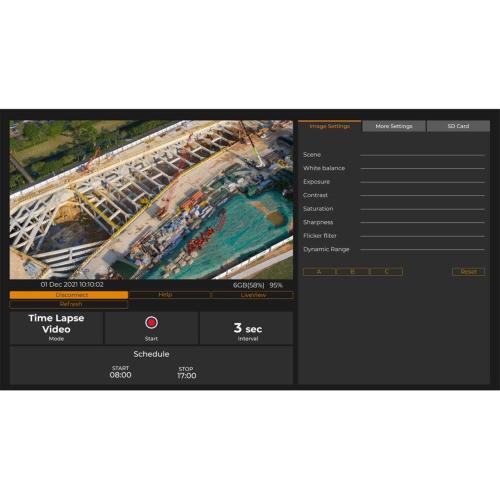

Laptop/tablet control
Get access to the all-in-one camera control platform Brinno Command Centre (Windows 64-bit operating system). Preview the camera frame, change settings, check battery and SD card status and more!

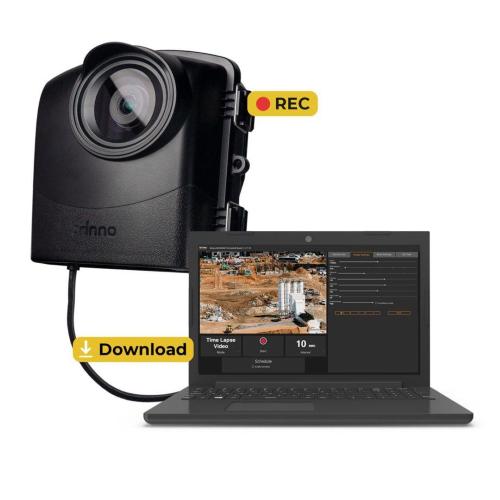

Record and download at the same time
No need to stop recording, use the extender kit (AFB1000) to connect it to your laptop and download time-lapse files efficiently without disrupting your shooting schedule.

10 metre robust cable
Connect to your camera from the ground with the 10 metre long, robust and construction-safe cable. The cable features a UV coating and a special waterproof plug and gasket to ensure safe long-term outdoor use.

Features:

Time Lapse Camera TLC2000:

• Resolution: 1080P
• Aperture: F2.0
• Focal length: 2.8 mm (corresponds to 19 mm with 35 mm equivalent)
• Field of view: 118°
• Recording mode: Time-lapse, step video, stop-motion, still image
• LCD screen: 2 inch/5.1 cm TFT LCD
• Storage: microSD/microSDHC/microSDXC card (up to 128 GB, at least Class 10 recommended, not included)
• Power supply: 2 AA batteries, DC-IN 5V/1A (USB-C connection)
• Operating temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Size (W x H x D): 60 x 70.6 x 42.4 mm (2.4 x 2.8 x 1.7 inch)
• Weight: 87.5 g (without batteries)

Construction Power Housing ATH2000:

• IP rating: IPX5 (weather resistant)
• Compatible cameras: TLC200, TLC200Pro, TLC120, TLC130, TLC2000, TLC2020 (use with supplied battery cover adapter)
• Battery slot: Space for up to 16 additional AA batteries, micro USB connection (output 5V/2A)
• Interchangeable lens covers:
  • Kit lens cover
  • Extension lens cover (for Brinno BCS lens)
• Size: 167 x 156 x 115.5 mm (6.6 x 6.1 x 4.5 inch)
• Weight: 393 g
• Scope of delivery: Construction power housing, camera mounting adapter, battery compartment, extension lens cover, desiccant, screwdriver, USB-C adapter, 2x straps

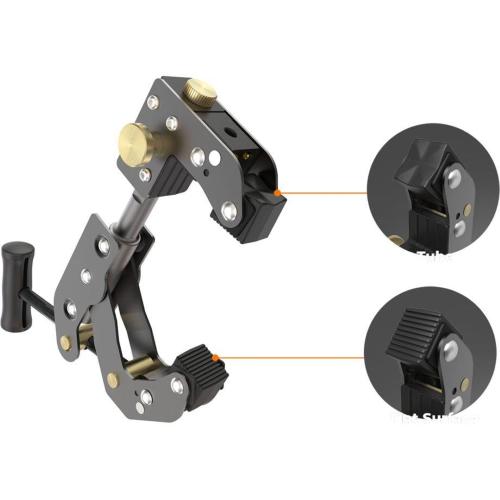

Clamp Mount Kit ACC1000:

• Contents: Camera clamp, Magic arm
• Camera mounting screw: ¼ inch
• Clamping range:
  • Tube: 10-90 mm (0.4-3.5 inch)
  • Flat surface: 1-90 mm (0.04-3.5 inch)
• Load capacity of the magic arm: 3 kg
• Clamp load capacity: 50 kg (without extension bar)
• Size (L x W x H):
  • Folded: 209 x 94 x 39 mm (8.2 x 3.7 x 1.5 inch)
  • Unfolded: 176 x 180 x 60 mm (6.9 x 7.1 x 2.4 inch)
• Weight: 750 g (including magic arm)
• Materials:
  • Clamp: Stainless steel, aluminium
  • Magic arm: Stainless steel, metal, aluminium

Camera Extender Kit AFB1000:

• Dongle interface:
  • Output: USB-C (to camera)
  • Input: USB-C (for USB-C cable)
  • Micro-USB (for ATH2000 power supply)
• USB-C cable:
  • USB-A plug to USB-C plug
  • Weatherproof cap and seal
  • UV coating
  • 10 m (32 feet)
  • Supports USB 2.0 high-speed data transfer at up to 200 Mbps
• Size (W x H x D):
  • Multitasking dongle ACB1000: 47.1 x 27.9 x 9 mm (1.85 x 1.09 x 0.35 inch)
  • USB-C cable: 10 m (32 ft)
  • Mounting adapter: 126 x 69 x 14.7 mm (4.9 x 2.7 x 0.6 inch)
• Weight:
  • Multitasking dongle ACB1000: 9.3 g
  • USB-C cable: 450 g
  • Mounting adapter: 32.5 g
