| Fattore Di Forma |
ATX |
| Sockel |
AMD AM5 |
| Chipsatz |
AMD X870 |
| Compatibilità Cpu |
Ryzen 7000,Ryzen 8000G,Ryzen 9000,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR5, doppio canale, max. UDIMM da 256 GB non ECC |
| Velocità Dati Ram |
DDR5-5200 (Ryzen 7000/?Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-8000OC |
| Ecc-Unterstützung |
nein |

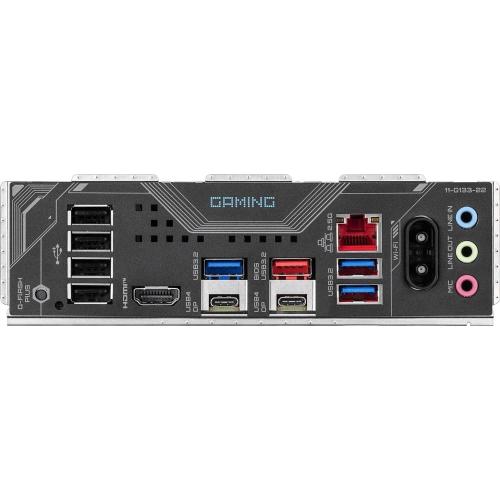

| Collegamento Esterno |
1x HDMI 2.1 (iGPU), 2x USB4 con DisplayPort 1.4 (40Gb/?s, iGPU), 1x USB-A 3.1 (10Gb/?s), 3x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 3x 3.5mm Klinke (Realtek ALC1220), 1x RJ-45 (2.5GBase-T, Realtek RTL8125BG), 2x connettori per antenne Quick Connect |
| Slot Pcie |
1x PCIe 5.0 x16, 2x PCIe 3.0 x16 (x1) |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 25110/?2580/?22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4, 25110/?2580/?22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x2, 25110/?2580/?22110/?2280), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (X870) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.2 Key-A (20Gb/?s, 1x USB-C), 1x Header USB 3.0 a 20 pin (5Gb/?s, 2x USB-A), 4x Header USB 2.0 a 9 pin (480 Mb/?s, 8x USB-A) |
| Anschlüsse Intern - Sonstige |
1x intestazione TPM |
| Anschlüsse Intern - Kühlung |
1x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter/?Pumpe 4-Pin PWM, 4x CPU-Lüfter 4-Pin PWM |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 1x EPS12V a 8 pin, 1x ATX12V a 4 pin |
| Anschlüsse Stagista - Beleuchtung |
3x ARGB a 3 pin (+5V/?DATA/?GND, max. 5A), 1x RGB a 4 pin (+12V/?G/?R/?B, max. 2A) |
| Pulsanti/Interruttori |
USB BIOS Flashback/?Q-Flash Plus (esterno), pulsante di accensione (interno), pulsante di ripristino (interno) |
| Audio |
Realtek ALC1220 |
| Rete |
Realtek RTL8125BG (2,5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Realtek RTL8851BE), Bluetooth 5.3 |
| Livello Raid |
0/?1/?10 (X870) |
| Vrm-Design |
8+2+2, 10 fasi CPU virtuali (2x4+2), 6 fasi CPU reali (4+2) |
| Mosfet Vcore |
8x 55A NCP302155 (DrMOS) [GIGABYTE: 60A] |
| Mosfet Soc/Vccgt |
2x 55A NCP302155 (DrMOS) [GIGABYTE: 60A] |
| Mosfet Sonstige |
2x 46A 4C10N/?4C06N (High-/?Low-Side) |
| Controller Pwm |
RT3678BE (max. 10 fasi) |
| Beleuchtung |
RGB, 1 zona (Chipsatz-Kühler) |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), I/?O-Blende integriert, 1x M.2-Passivkühler |
| Garanzia |
3 anni (Informazioni) |
| Usb-Schreibweise |
Link |
| Aggiornamento Precedente Letztes |
2026-01-13, 14:34 |
| Gelistet Set |
2024-09-02, 18:14 |
