| Fattore Di Forma |
E-ATX, 12"x11,2" (304,8x284,5 mm) |
| Sockel |
Intel 1851 (LGA1851) |
| Chipsatz |
Intel Z890 |
| Compatibilità Cpu |
Core Ultra 200S,Elenco compatibilità CPU |
| Slot Ram |
4x DDR5 DIMM, 2 canali (Dual Channel), UDIMM (Non ECC)/?CUDIMM, max. 256 GB (UDIMM), 256 GB (CUDIMM) |
| Velocità Dati Ram Oc |
max. DDR5-9500 |
| Velocità Dati Ram Nativa |
DDR5-5600 UDIMM/?DDR5-6400 CUDIMM (Core Ultra 200S) |
| Ecc-Unterstützung |
nein |

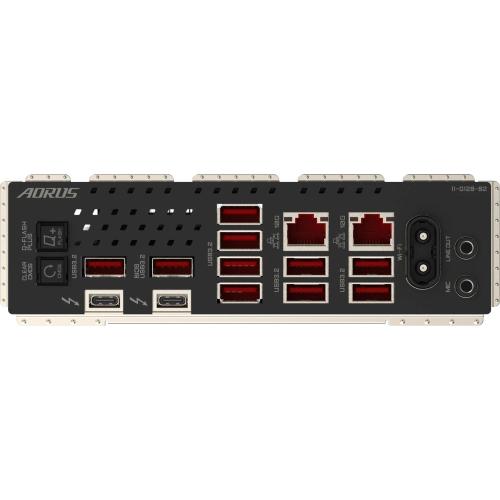

| Collegamento Esterno |
2x Thunderbolt 4 /? USB4 con DisplayPort 1.4 (40Gb/?s, PD-Out, HDCP 2.3, iGPU), 10x USB-A 3.1 (10Gb/?s), 2x 3.5mm Klinke (ESS ES9280), 2x RJ-45 (10GBase-T, Marvell AQtion AQC113CS), 2 connettori per antenna Quick Connect |
| Slot Pcie |
2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/?x0 o x8/?x8], 1x PCIe 4.0 x16 (x4) |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 25110/?2580/?22110/?2280), 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (Z890) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.2 Key-A (20Gb/?s, 1x USB-C), 2x Header USB 3.0 a 20 pin (5Gb/?s, 4x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x intestazione TPM |
| Anschlüsse Intern - Kühlung |
1x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter/?Pumpe 4-Pin PWM, 4x Lüfter 4-Pin PWM, 4x Lüfter/?Pumpe 4-Pin PWM, 2x connettore per sensore termico, 1x connettore per sensore di rumore |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 2x EPS12V a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
1x RGB a 4 pin (+12V/?G/?R/?B, max. 2A), 4x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, GIGABYTE Gen2) |
| Pulsanti/Interruttori |
Pulsante Clear-CMOS (esterno), USB BIOS Flashback/?Q-Flash Plus (esterno), Pulsante di accensione (interno), Pulsante Reset (interno) |
| Audio |
ESS ES9280, DAC (ESS ES9118), DTS:X Ultra |
| Rete |
Marvell AQtion AQC113CS (10Gb/?s) x2 |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Intel BE200), Bluetooth 5.4 |
| Livello Raid |
0/?1/?5/?10 (Z890) |
| Vrm-Design |
20+1+2, 21 fasi CPU virtuali (2x10+1), 11 fasi CPU reali (10+1) |
| Mosfet Vcore |
20x 110A R2209004 (SPS) |
| Mosfet Soc/Vccgt |
1x 80A ISL99380 (SPS) |
| Mosfet Vdd_Misc/Vccsa/Vccaux |
2x 40A NCP81526C (DrMOS) |
| Controller Pwm |
RAA229130 (max. 12 fasi) + RAA229134 (max. 4 fasi) |
| Illuminazione |
RGB, 2 zone (Chipsatz-Kühler, I/?O-Abdeckung) |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), LED diagnostico (segmentanzeige), I/?O-Blende integriert, Backplate, Spannungsmesspunkte, 4x M.2-Passivkühler |
| Garanzia |
3 anni (Informazioni) |
| Usb-Schreibweise |
Link |
| Aggiornamento Preliminare Ufficiale |
2025-11-05, 16:44 |
| Gelistet Set |
2024-10-10, 12:56 |
