| Fattore Di Forma |
ATX |
| Sockel |
AMD AM5 |
| Chipsatz |
AMD X870E |
| Compatibilità Cpu |
Ryzen 7000,Ryzen 8000G,Ryzen 9000,Elenco compatibilità CPU |
| Slot Ram |
4x DDR5 DIMM, 2 canali (Dual Channel), UDIMM (Non ECC), max. 256 GB |
| Velocità Dati Ram Oc |
max. DDR5-9000 |
| Velocità Dati Ram Nativa |
DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000) |
| Ecc-Unterstützung |
nein |

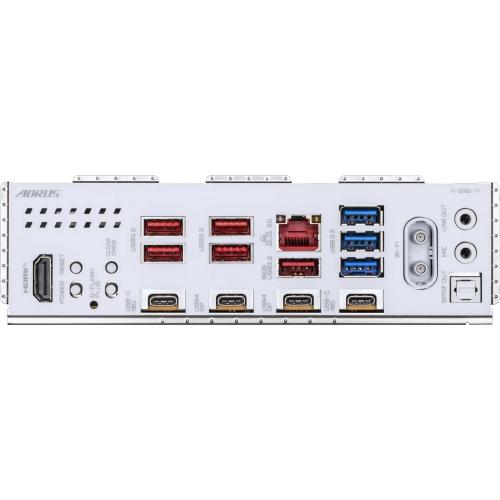

| Accessori Esterni |
1x HDMI 2.1 TMDS (HDCP 2.3, iGPU), 2x USB4 con DisplayPort 1.4 (40Gb/?s, ASMedia, iGPU), 2x USB-C 3.1 (10Gb/?s), 5x USB-A 3.1 (10Gb/?s), 3x USB-A 3.0 (5Gb/?s), 1x uscita Toslink S/?PDIF (Realtek ALC1220), 2x Klinke da 3,5 mm (Realtek ALC1220), 1x RJ-45 (5GBase-T, Realtek), 2x collegamento antenna Quick Connect |
| Slot Pcie |
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x16 (x2) |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 25110/?2580/?22110/?2280), 1x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280), 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (X870E) |
| Anschlüsse Intern - Usb |
1x Header USB 3.2 Key-A (20Gb/?s, PD-Out 65W, QC4+, 1x USB-C), 2x Header USB 3.0 a 20 pin (5Gb/?s, 4x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x HDMI 1.4 (iGPU), 1x header TPM |
| Anschlüsse Intern - Kühlung |
1x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter/?Pumpe 4-Pin PWM, 4x Lüfter 4-Pin PWM, 2x Lüfter/?Pumpe 4-Pin PWM, 2x connettore per sensore termico, 1x connettore per sensore di rumore |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 2x EPS12V a 8 pin, 1x PCIe a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
3x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, GIGABYTE Gen2), 1x RGB a 4 pin (+12V/?G/?R/?B, max. 2A) |
| Pulsanti/Interruttori |
Pulsante Clear-CMOS (esterno), pulsante di accensione (esterno), pulsante Reset (esterno), USB BIOS Flashback/?Q-Flash Plus (esterno) |
| Audio |
Realtek ALC1220 |
| Rete |
Realtek (5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Qualcomm QCNCM865), Bluetooth 5.4 |
| Livello Raid |
0/?1/?10 (X870E) |
| Vrm-Design |
18+2+2, 20 fasi CPU virtuali (2x9+2), 11 fasi CPU reali (9+2) |
| Mosfet Vcore |
18x 80A PMC41410 (SPS) |
| Mosfet Soc/Vccgt |
2x 80A PMC41410 (SPS) |
| Mosfet Vdd_Misc/Vccsa/Vccaux |
2x 46A 4C10N/?4C06N (High-/?Low-Side) |
| Controller Pwm |
XDPE192C3B (max. 12 fasi), RT3672EE (max. 2 fasi) |
| Illuminazione |
RGB, 2 zone (Chipsatz-Kühler, I/?O-Abdeckung) |
| Bios |
1x 64MB (512Mb) |

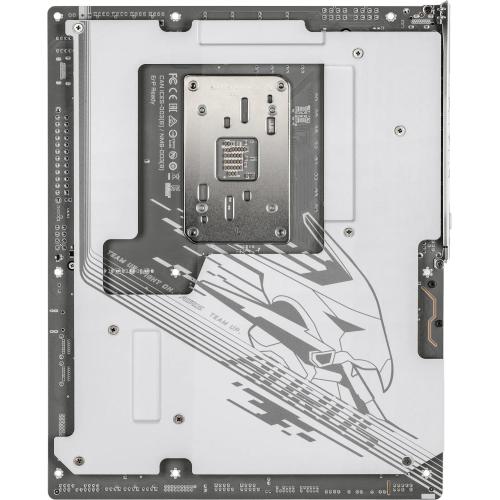

| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), LED diagnostico (segmentazioni), I/?O-Blende integriert, Backplate, White Build-kompatibel (PCB weiß), 4x M.2-Passivkühler |
| Garanzia |
3 anni (Informazioni) |
| Usb-Schreibweise |
Link |
| Aggiornamento Preliminare Ufficiale |
2025-11-05, 16:44 |
| Gelistet Set |
2025-09-16, 13:01 |
