| Fattore Di Forma |
ATX |
| Sockel |
Intel 1700 (LGA1700) |
| Chipsatz |
Intel B760 |
| Compatibilità Cpu |
Celeron G6000,Pentium Gold G7000,Core i-12000,Core i-13000,Core i-14000,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR4, doppio canale, max. UDIMM da 128 GB non ECC |
| Velocità Dati Ram |
DDR4-3200 (Celeron G6000/?Pentium Gold G7000/?Core i-12000/?Core i-13000/?Core i-14000), max. DDR4-5333OC |
| Ecc-Unterstützung |
nein |

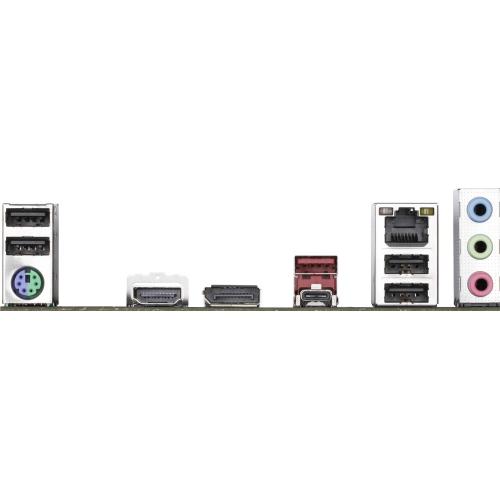

| Accessori Esterni |
1x DisplayPort 1.2 (HDCP 2.3, iGPU), 1x HDMI 2.1 TMDS (HDCP 2.3, iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 3x Klinke da 3,5 mm (Realtek ALC897), 1x RJ-45 (1000Base-T, Realtek), 1x PS/?2 Combo |
| Slot Pcie |
1x PCIe 4.0 x16, 4x PCIe 3.0 x16 (x1) |
| Slot M.2 |
1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4, 2280) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (B760) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.0 Key-A (5 Gb/?s, 1x USB-C), 1x Header USB 3.0 a 20 pin (5 Gb/?s, 2x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x intestazione seriell, 1x intestazione TPM, 1x intestazione S/?PDIF |
| Anschlüsse Intern - Kühlung |
1x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter/?Pumpe 4-Pin PWM, 3x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter/?Pumpe 4-Pin PWM |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 1x EPS12V a 8 pin |
| Anschlüsse Intern - Beleuchtung |
2x RGB a 4 pin (+12V/?G/?R/?B, max. 2A), 2x ARGB a 3 pin (+5V/?DATA/?GND, max. 5A) |
| Pulsanti/Interruttori |
Pulsante Reset (interno), USB BIOS Flashback/?Q-Flash Plus (interno) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek (1Gb/?s) |
| Grafica |
iGPU |
| Livello Raid |
0/?1/?5/?10 (B760) |
| Vrm-Design |
8+2+1, 10 fasi CPU virtuali (2x4+2), 6 fasi CPU reali (4+2) |
| Mosfet Vcore |
8x 46A 4C10N/?16x 4C06N (High-/?Low-Side) |
| Mosfet Soc/Vccgt |
2x 46A 4C10N/?4x 4C06N (High-/?Low-Side) |
| Mosfet Sonstige |
1x |
| Controller Pwm |
NCP81530R (max. 10 fasi) |
| Beleuchtung |
N/?D |
| Bios |
1x 16MB (128Mb) |
| Besonderheiten |
Condensatori audio+solidi, LED diagnostici (indicatori LED) |
| Garanzia |
3 anni (Informazioni) |
| Usb-Schreibweise |
Link |
| Aggiornamento Precedente Letztes |
2026-03-04, 15:47 |
| Gelistet Set |
2023-01-06, 13:34 |
