| Fattore Di Forma |
ATX |
| Sockel |
AMD AM5 |
| Chipsatz |
AMD B650 |
| Compatibilità Cpu |
Ryzen 7000,Ryzen 8000G,Ryzen 9000,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR5, doppio canale, max. UDIMM da 192 GB non ECC+ECC |
| Velocità Dati Ram |
DDR5-5200 (Ryzen 7000/?Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-7600OC |
| Ecc-Unterstützung |
ja |

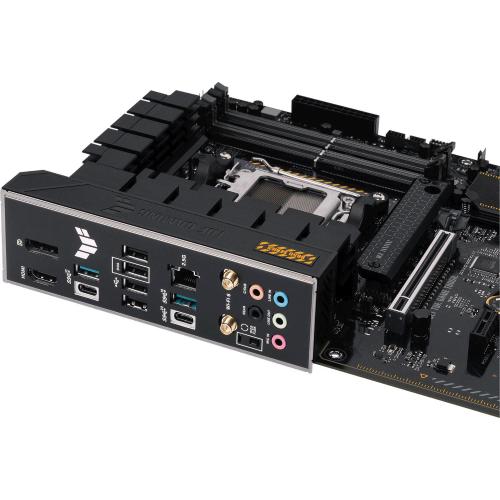

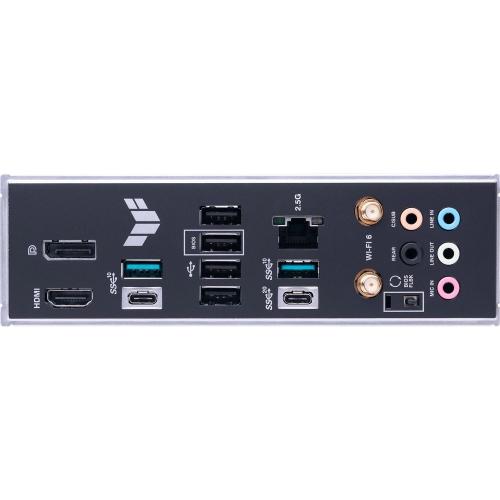

| Accessori Esterni |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-C 3.1 (10Gb/?s), 2x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 5x Klinke da 3,5 mm (Realtek ALC1200), 1x RJ-45 (2.5GBase-T, Realtek), 2x antenne RP-SMA |
| Slot Pcie |
2x PCIe 4.0 x16 (1x x16, 1x x4), 2x PCIe 4.0 x1 |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (B650) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.0 Key-A (5 Gb/?s, 1x USB-C), 1x Header USB 3.0 a 20 pin (5 Gb/?s, 2x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x intestazione seriell, 1x intestazione Chassis Intrusion, 1x intestazione Thunderbolt a 13 pin, 1x intestazione COM Debug |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 4x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 1x EPS12V a 8 pin, 1x ATX12V a 4 pin |
| Anschlüsse Stagista - Beleuchtung |
1x RGB a 4 pin (+12V/?G/?R/?B, max. 3A), 3x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Pulsanti/Interruttori |
Flashback BIOS USB (esterno) |
| Audio |
Realtek ALC1200, elaborazione audio DTS |
| Rete |
Realtek (2,5Gb/?s) |
| Grafica |
iGPU |

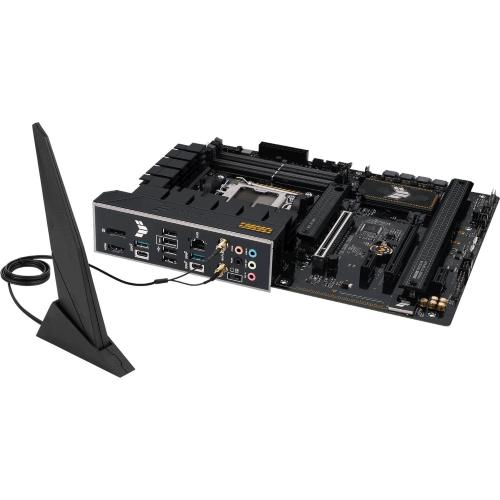

| Senza Fili |
Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Realtek RTL8852BE), Bluetooth 5.3 |
| Livello Raid |
0/?1/?10 (B650) |

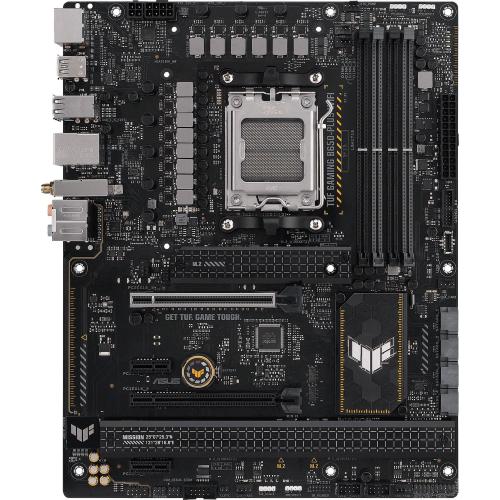

| Vrm-Design |
12+2+1, 14 fasi CPU virtuali (3x4+2), 6 fasi CPU reali (4+2) |
| Mosfet Vcore |
12x 60A AOZ5312UQI (DrMOS) |
| Mosfet Soc/Vccgt |
2x 60A AOZ5312UQI (DrMOS) |
| Mosfet Sonstige |
1x 30A MxL7630P (DrMOS) |
| Controller Pwm |
ASP2208 (RT3678BE, max. 10 fasi) |
| Beleuchtung |
N/?D |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), I/?O-Blende integriert, 3x M.2-Passivkühler |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Anticipato |
2026-01-13, 13:45 |
| Gelistet Set |
2022-10-03, 19:27 |
