| Fattore Di Forma |
ATX |
| Sockel |
AMD AM4 |
| Chipsatz |
AMD B550 |
| Compatibilità Cpu |
Ryzen 3000,Ryzen 4000G,Ryzen 5000,Ryzen 5000G,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR4, doppio canale, max. UDIMM da 128 GB non ECC+ECC |
| Velocità Dati Ram |
DDR4-3200 (Ryzen 3000/?Ryzen 4000G/?Ryzen 5000/?Ryzen 5000G), max. DDR4-4866OC |
| Ecc-Unterstützung |
ja |
| Accessori Esterni |

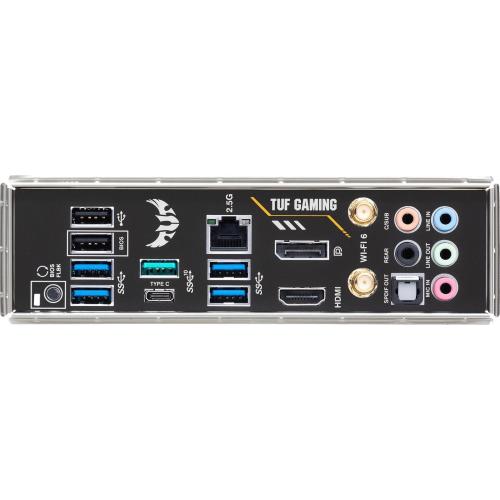

1x DisplayPort 1.2 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/?s, PCH), 1x USB-A 3.1 (10Gb/?s, PCH), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 1x uscita Toslink S/?PDIF (Realtek ALC1200), 5x Klinke da 3,5 mm (Realtek ALC1200), 1x RJ-45 (2.5GBase-T, Realtek RTL8125B), 2x antenna RP-SMA |
| Slot Pcie |
1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1 |
| Slot M.2 |
1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
6x SATA 6Gb/s (B550) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.0 a 20 pin (5 Gb/?s, 2x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x intestazione seriell, 1x intestazione TPM, 1x intestazione Thunderbolt a 13 pin, 1x intestazione COM Debug |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 3x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM, 1x Thermal-Sensor Header |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 1x EPS12V a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
2x RGB a 4 pin (+12V/?G/?R/?B, max. 3A), 2x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Pulsanti/Interruttori |
Flashback BIOS USB (esterno) |
| Audio |
Realtek ALC1200, audio personalizzato DTS |
| Rete |
Realtek RTL8125B (2,5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, MediaTek MT7921K), Bluetooth 5.3 |
| Livello Raid |
0/?1/?10 (B550) |
| Vrm-Design |
8+2, 10 fasi CPU virtuali (2x4+2), 6 fasi CPU reali (4+2) |
| Mosfet Vcore |
8x 50A SiC639 (DrMOS) |
| Mosfet Soc/Vccgt |
2x 50A SiC639 (DrMOS) |
| Controller Pwm |
ASP1106 (RT3667BE, max. 6 fasi) |
| Illuminazione |
RGB, 1 zona (pagina destra) |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori audio+solidi, LED diagnostico (indicatore LED), 2x M.2-Passivkühler |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Anticipato |
2026-01-13, 13:44 |
| Gelistet Set |
29-11-2021, 14:25 |
