| Fattore Di Forma |
ATX |
| Sockel |
Intel 1851 (LGA1851) |
| Chipsatz |
Intel Z890 |
| Compatibilità Cpu |
Core Ultra 200S,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR5, doppio canale, max. UDIMM da 256 GB non ECC |
| Velocità Dati Ram |
DDR5-5600 UDIMM/?DDR5-6400 CUDIMM (Core Ultra 200S), max. DDR5-9066OC |
| Ecc-Unterstützung |
nein |

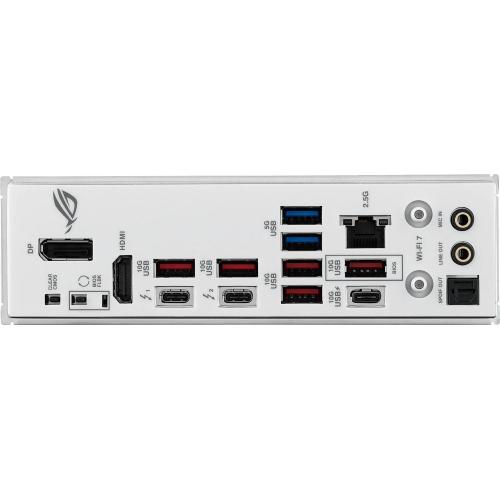

| Accessori Esterni |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 /? USB4 con DisplayPort 2.1 (40Gb/?s, PD-Out 15W, iGPU), 1x USB-C 3.1 (10Gb/?s, PD-Out 30W), 5x USB-A 3.1 (10Gb/?s), 2x USB-A 3.0 (5Gb/?s), 1x Toslink S/?PDIF Out (Realtek ALC4080), 2x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (2.5GBase-T, Intel I226-V), 2x Antennenanschluss Quick Connect |
| Slot Pcie |
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4) |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280/?2260/?2242), 2x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (Z890) |
| Anschlüsse Intern - Usb |
1x Header USB 3.2 Key-A (20Gb/?s, PD-Out 60W, QC4+, 1x USB-C), 1x Header USB 3.0 a 20 pin (5Gb/?s, 2x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x ASUS Thunderbolt USB4 Header (TB(USB4)), 1x Chassis Intrusion Header |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 5x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM, 1x Thermal-Sensor Header |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 2x EPS12V a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
3x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Pulsanti/Interruttori |
Pulsante Clear-CMOS (esterno), USB BIOS Flashback (esterno), Pulsante di accensione (interno) |
| Audio |
Realtek ALC4080, DAC (ESS ES9219Q), ASUS SupremeFX |
| Rete |
Intel I226-V (2,5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Intel BE200), Bluetooth 5.4 |
| Livello Raid |
0/?1/?5/?10 (Z890) |
| Vrm-Design |
16+1+2+2, 17 fasi CPU virtuali (2x8+1), 9 fasi CPU reali (8+1) |
| Mosfet Vcore |
16x 90A |
| Mosfet Soc/Vccgt |
1x 90A |
| Mosfet Sonstige |
2x 90A |
| Mosfet Vnnaon |
2x 80A |
| Illuminazione |
RGB, 1 zona (I/?O-Abdeckung) |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), I/?O-Blende integriert, White Build-kompatibel (PCB weiß), 5x M.2-Passivkühler |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Anticipato |
2026-01-13, 13:44 |
| Gelistet Set |
2024-10-11, 11:53 |
