| Fattore Di Forma |
ATX |
| Sockel |
AMD AM5 |
| Chipsatz |
AMD B850 |
| Compatibilità Cpu |
Ryzen 7000,Ryzen 8000G,Ryzen 9000,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR5, doppio canale, max. UDIMM da 256 GB non ECC+ECC |
| Velocità Dati Ram |
DDR5-5200 (Ryzen 7000/?Ryzen 8000G), DDR5-5600 (Ryzen 9000), max. DDR5-8000OC |
| Ecc-Unterstützung |
ja |

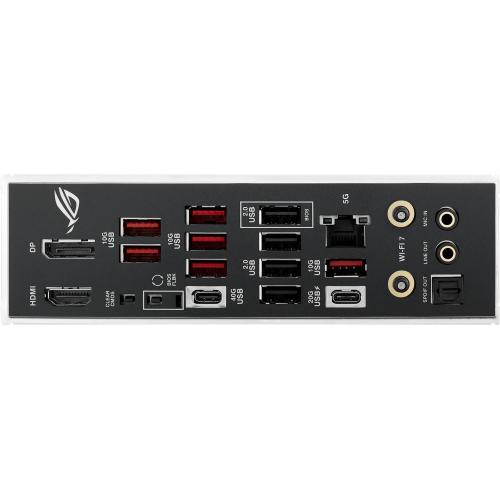

| Accessori Esterni |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB4 con DisplayPort 1.4a (40Gb/?s, PD-Out 15W, iGPU), 1x USB-C 3.1 (10Gb/?s, PD-Out 30W), 6x USB-A 3.1 (10Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x Toslink S/?PDIF Out (Realtek ALC4080), 2x 3.5mm Klinke (Realtek ALC4080), 1x RJ-45 (5GBase-T, Realtek), 2x Antennenanschluss Quick Connect |
| Slot Pcie |
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4) |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 5.0 x4, 2280), 2x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (B850) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.1 Key-A (10 Gb/?s, 1x USB-C), 1x Header USB 3.0 a 20 pin (5 Gb/?s, 2x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Stagista - Sonstige |
1x ASUS Thunderbolt USB4 Header (TB(USB4)) |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 5x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM, 1x Thermal-Sensor Header |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 2x EPS12V a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
3x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Pulsanti/Interruttori |
Pulsante Clear-CMOS (esterno), USB BIOS Flashback (esterno), Pulsante di accensione (interno) |
| Audio |
Realtek ALC4080, AMP (Savitech SV3H712), ASUS SupremeFX |
| Rete |
Realtek (5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, MediaTek MT7927), Bluetooth 5.3 |
| Livello Raid |
0/?1/?10 (B850) |
| Design Vrm |
16+2+2, 18 fasi CPU virtuali (16+2) |
| Mosfet Vcore |
16x 90A MP87691 (SPS) |
| Mosfet Soc/Vccgt |
2x 90A MP87691 (SPS) |
| Mosfet Sonstige |
2x 80A SiC629 (DrMOS) |
| Controller Pwm |
ASP2206 (MP2857, max. 12 fasi), RT3672EE (max. 2 fasi) |
| Illuminazione |
RGB, 1 zona (I/?O-Abdeckung) |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (segmentanzeige), I/?O-Blende integriert, 4x M.2-Passivkühler |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Anticipato |
2026-01-13, 13:44 |
| Gelistet Set |
2025-01-05, 14:59 |
