| Fattore Di Forma |
ATX |
| Sockel |
Intel 1851 (LGA1851) |
| Chipsatz |
Intel Z890 |
| Compatibilità Cpu |
Core Ultra 200S,Elenco compatibilità CPU |
| Slot Ram |
4x DDR5 DIMM, 2 canali (Dual Channel), UDIMM (Non ECC)/?CUDIMM, max. 256 GB (UDIMM), 256 GB (CUDIMM) |
| Velocità Dati Ram Oc |
max. DDR5-9200 |
| Velocità Dati Ram Nativa |
DDR5-5600 UDIMM/?DDR5-6400 CUDIMM (Core Ultra 200S) |
| Ecc-Unterstützung |
nein |

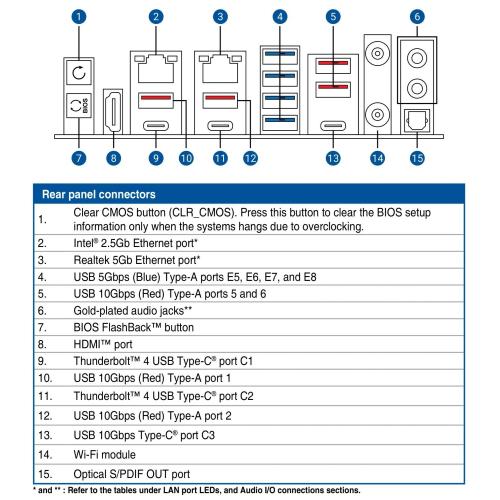

| Accessori Esterni |
1x HDMI 2.1 (iGPU), 2x Thunderbolt 4 /? USB4 con DisplayPort 2.1 (40Gb/?s, PD-Out 15W, iGPU), 1x USB-C 3.1 (10Gb/?s), 4x USB-A 3.1 (10Gb/?s), 4x USB-A 3.0 (5Gb/?s), 1x uscita Toslink S/?PDIF (Realtek ALC4082), 2x 3,5 mm Klinke (Realtek ALC4082), 1x RJ-45 (5GBase-T, Realtek), 1x RJ-45 (2,5GBase-T, Intel I226-V), 2x antenne Quick Connect |
| Slot Pcie |
1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 4.0 x1 |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280/?2260/?2242), 2x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 2x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (Z890, Rückseite) |
| Anschlüsse Intern - Usb |
1x USB 3.2 Header Key-A (20Gb/?s, PD-Out 60W, QC4+, 1x USB-C, Rückseite), 1x USB 3.1 Header Key-A (10Gb/?s, 1x USB-C, Rückseite), 2x USB 3.0 Header 20-Pin (5Gb/?s, 4x USB-A, Rückseite), 2x USB 2.0 Header a 9 pin (480 Mb/?s, 4x USB-A, Rückseite) |
| Anschlüsse Intern - Sonstige |
1x ASUS Thunderbolt USB4 Header (TB(USB4), Rückseite) |
| Anschlüsse Intern - Kühlung |
1x CPU-Lüfter 4-Pin PWM, 1x CPU-Lüfter 4-Pin PWM (Rückseite), 4x Lüfter 4-Pin PWM (Rückseite), 1x AIO-Pumpe 4-Pin PWM (Rückseite), 1x Pumpe 4-Pin PWM (Rückseite), 1x Intestazione del sensore termico |
| Anschlüsse Intern - Stromversorgung |
1x 24-Pin ATX (Rückseite), 2x 8-Pin EPS12V (Rückseite), 1x GC-HPWR /? ASUS BTF, 1x 12V-2x6 (Rückseite, für PCIe High Power Connector) |
| Anschlüsse Stagista - Beleuchtung |
3x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2, Rückseite) |
| Pulsanti/Interruttori |
Pulsante Clear CMOS (esterno), Flashback BIOS USB (esterno), Commutatore modalità PCIe alternativa (interno), Pulsante FlexKey (interno), Pulsante Riprova (interno), Pulsante Start (interno) |
| Audio |
Realtek ALC4082, DAC (ESS ES9219Q), ASUS SupremeFX |
| Rete |
Realtek (5Gb/?s), Intel I226-V (2,5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Intel BE200), Bluetooth 5.4 |
| Livello Raid |
0/?1/?5/?10 (Z890) |
| Vrm-Design |
22+1+2+2, 23 fasi CPU virtuali (2x11+1), 12 fasi CPU reali (11+1) |
| Mosfet Vcore |
22x 110A |
| Mosfet Soc/Vccgt |
1x 90A |
| Mosfet Vdd_Misc/Vccsa/Vccaux |
2x 90A |
| Mosfet Vnnaon |
2x 80A |
| Illuminazione |
RGB, 1 zona (I/?O-Abdeckung) |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), LED diagnostico (segmentazioni), I/?O-Blende integriert, Backplate, 6x M.2-Passivkühler, interne Anschlüsse rückseitig (ASUS Advanced BTF) |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Preliminare Ufficiale |
2025-11-05, 16:40 |
| Gelistet Set |
2025-02-14, 11:50 |
