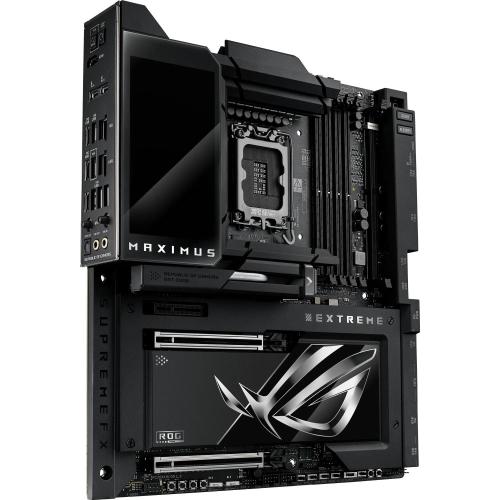

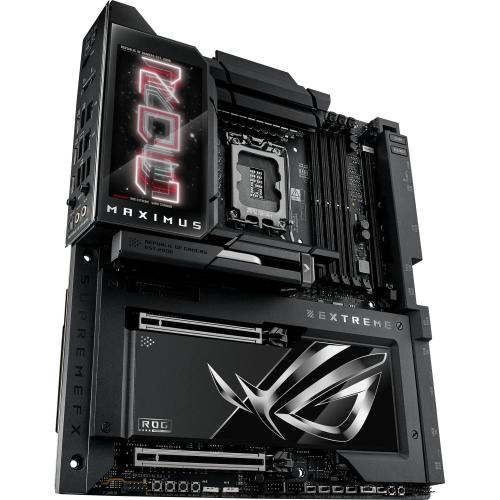

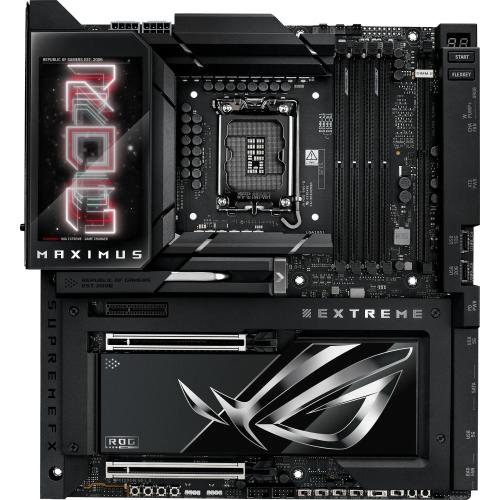

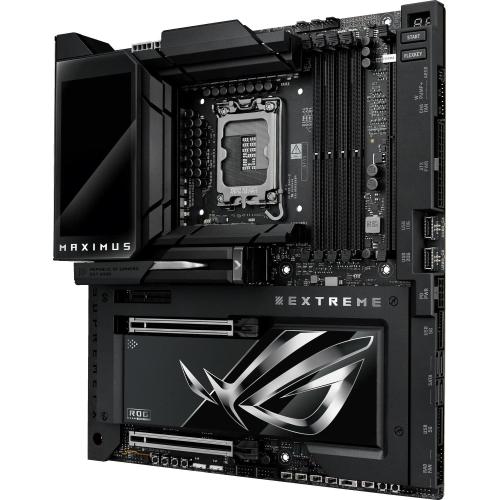

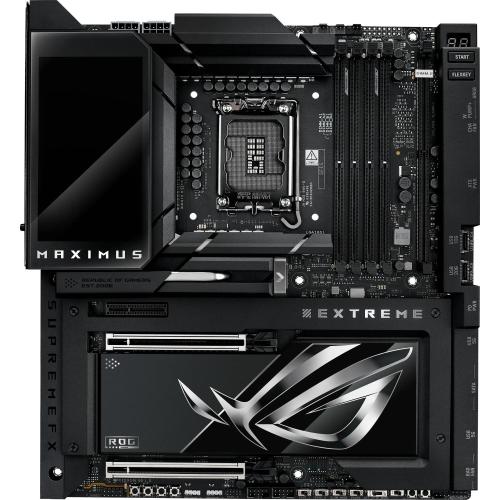

| Fattore Di Forma |
E-ATX, 12"x10,9" (304,8x276,9 mm) |
| Sockel |
Intel 1851 (LGA1851) |
| Chipsatz |
Intel Z890 |
| Compatibilità Cpu |
Core Ultra 200S,Elenco compatibilità CPU |
| Slot Ram |
4x DDR5 DIMM, 2 canali (Dual Channel), UDIMM (Non ECC)/?CUDIMM, max. 256 GB (UDIMM), 256 GB (CUDIMM) |
| Velocità Dati Ram Oc |
max. DDR5-9200 |
| Velocità Dati Ram Nativa |
DDR5-5600 UDIMM/?DDR5-6400 CUDIMM (Core Ultra 200S) |
| Ecc-Unterstützung |
nein |

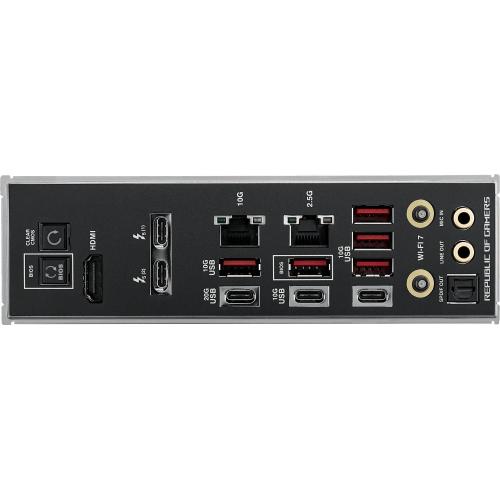

| Collegamento Esterno |
1x HDMI 2.1 (iGPU), 2x Thunderbolt 5 /? USB4 v2 con DisplayPort 2.1 UHBR20 (80Gb/?s, PD-Out 15W, iGPU), 1x USB-C 3.2 (20Gb/?s), 2x USB-C 3.1 (10Gb/?s), 5x USB-A 3.1 (10Gb/?s), 1x Toslink S/?PDIF Out (Realtek ALC4082), 2x 3.5mm Klinke (Realtek ALC4082, compatibile), 1x RJ-45 (2.5GBase-T, Intel I226-V), 1x RJ-45 (10GBase-T, Marvell), 2x Antenna Quick Connettiti |
| Slot Pcie |
2x PCIe 5.0 x16 (1x x16, 1x x8) [x16/?x0 o x8/?x8], 1x PCIe 4.0 x4 |
| Slot M.2 |
2x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 5.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 2x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242/?2230, DIMM.2), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (Z890) |
| Anschlüsse Intern - Usb |
1x USB 3.2 Header Key-A (20Gb/?s, PD-Out 60W, QC4+, 1x USB-C), 1x USB 3.1 Header Key-A (10Gb/?s, 1x USB-C), 2x USB 3.0 Header 20-Pin (5Gb/?s, 4x USB-A), 2x Basetta USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Stagista - Sonstige |
N/?A |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 5x Lüfter 4-Pin PWM, 2x Pumpe 4-Pin PWM, 1x Thermal-Sensor Header |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 2x EPS12V a 8 pin, 1x PCIe a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
2x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2), 2x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2, tramite adattatore) |
| Pulsanti/Interruttori |
Pulsante Clear-CMOS (esterno), USB BIOS Flashback (esterno), 2x RSVD-Switch (interno), 4x BCLK-Button (interno), Alternativa PCIe Mode-Switch (interno), BIOS-Switch (interno), FlexKey-Button (interno), Pause-Switch (interno), Power-Button (interno), Retry-Button (interno), SafeBoot-Button (stagista), SlowMode-Switch (stagista) |
| Audio |
Realtek ALC4082, DAC (ESS ES9219Q), ASUS SupremeFX |
| Rete |
Marvell (10Gb/?s), Intel I226-V (2,5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 7 (WLAN 802.11a/?b/?g/?n/?ac/?ax/?be, 2x2, Intel BE200), Bluetooth 5.4 |
| Livello Raid |
0/?1/?5/?10 (Z890) |
| Vrm-Design |
24+1+2+2, 25 fasi CPU virtuali (2x12+1), 13 fasi CPU reali (12+1) |
| Mosfet Vcore |
24x 110A PMC41430 (SPS) |
| Mosfet Soc/Vccgt |
1x 90A PMC41420 (SPS) |
| Mosfet Vdd_Misc/Vccsa/Vccaux |
2x 90A PMC41420 (SPS) |
| Mosfet Vnnaon |
2x 80A MP87681 (SPS) |
| Controller Pwm |
ASP2412 (XDPE192C3B, max. 12 fasi) + MP2940C (max. 3 fasi) |
| Illuminazione |
RGB, 1 zona (I/?O-Abdeckung) |
| Bios |
2x 32 MB (256 Mb), doppio BIOS |

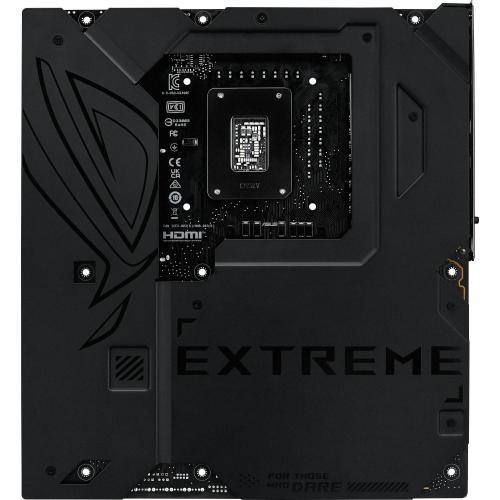

| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), LED diagnostico (segmentanzeige), I/?O-Blende integriert, Backplate, Spannungsmesspunkte, 6x M.2-Passivkühler |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Preliminare Ufficiale |
2025-11-05, 16:40 |
| Gelistet Set |
2024-10-11, 11:01 |
