| Fattore Di Forma |
ATX |
| Sockel |
Intel 1851 (LGA1851) |
| Chipsatz |
Intel Z890 |
| Compatibilità Cpu |
Core Ultra 200S,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR5, doppio canale, max. UDIMM da 256 GB non ECC |
| Velocità Dati Ram |
DDR5-5600 UDIMM/?DDR5-6400 CUDIMM (Core Ultra 200S), max. DDR5-8666OC |
| Ecc-Unterstützung |
nein |

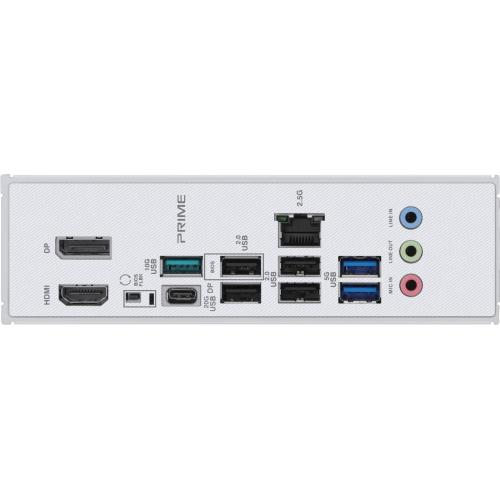

| Accessori Esterni |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 con DisplayPort 1.4 (20Gb/?s, iGPU), 1x USB-A 3.1 (10Gb/?s), 2x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 3x Klinke da 3,5 mm (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek) |
| Slot Pcie |
1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (2x x4, 1x x1) |
| Slot M.2 |
1x M.2/?M-Key (PCIe 5.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 2280/?2260/?2242) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (Z890) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.1 Key-A (10 Gb/?s, 1x USB-C), 2x Header USB 3.0 a 20 pin (5 Gb/?s, 4x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x intestazione ASUS Thunderbolt USB4 (TB(USB4)), 1x intestazione seriell, 1x intestazione S/?PDIF, 1x intestazione TPM |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 4x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 2x EPS12V a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
1x RGB a 4 pin (+12V/?G/?R/?B, max. 3A), 3x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Pulsanti/Interruttori |
Flashback BIOS USB (esterno) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek (2,5Gb/?s) |
| Grafica |
iGPU |
| Livello Raid |
0/?1/?5/?10 (Z890) |
| Vrm-Design |
14+1+2+1, 15 fasi CPU virtuali (2x7+1), 8 fasi CPU reali (7+1) |
| Mosfet Vcore |
14x 80A |
| Mosfet Soc/Vccgt |
1x 80A |
| Mosfet Sonstige |
2x 80A |
| Mosfet Vnnaon |
1x 80A |
| Beleuchtung |
N/?D |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, I/?O-Blende integriert, White Build-compatibel (PCB primimär schwarz), 1x M.2-Passivkühler |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Precedente Letztes |
2026-01-13, 13:43 |
| Gelistet Set |
2024-10-11, 16:08 |
