| Fattore Di Forma |
ATX |
| Sockel |
Intel 1700 (LGA1700) |
| Chipsatz |
Intel Z790 |
| Compatibilità Cpu |
Celeron G6000,Pentium Gold G7000,Core i-12000,Core i-13000,Core i-14000,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR5, doppio canale, max. UDIMM da 192 GB non ECC |
| Velocità Dati Ram |
DDR5-4800 (Celeron G6000/?Pentium Gold G7000/?Core i-12000), DDR5-4800/?DDR5-5600 (Core i-13000/?Core i-14000), max. DDR5-7200OC |
| Ecc-Unterstützung |
nein |

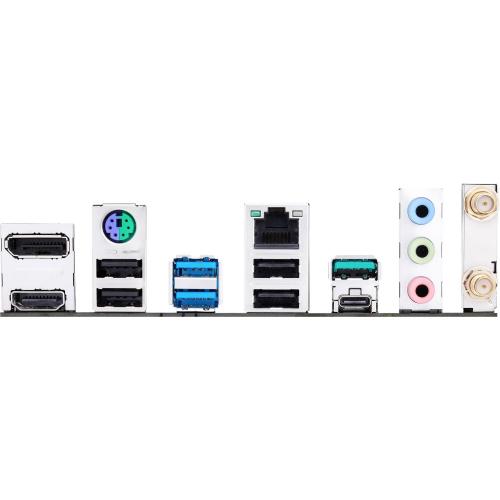

| Accessori Esterni |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-A 3.1 (10Gb/?s), 2x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 3x Klinke da 3,5 mm (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek), 1x PS/?2 Combo, 2x Antenna RP-SMA |
| Slot Pcie |
1x PCIe 5.0 x16, 3x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1 |
| Slot M.2 |
1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?E-Key (2230, collegato con modulo WiFi+BT) |
| Sonstige Schnittstellen |
4x SATA 6Gb/s (Z790) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.1 Key-A (10 Gb/?s, 1x USB-C), 2x Header USB 3.0 a 20 pin (5 Gb/?s, 4x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x connettore seriell, 1x connettore TPM, 1x connettore Thunderbolt a 13 pin, 1x connettore S/?PDIF |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 3x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 1x EPS12V a 8 pin, 1x ATX12V a 4 pin |
| Anschlüsse Stagista - Beleuchtung |
2x RGB a 4 pin (+12V/?G/?R/?B, max. 3A), 3x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek (2,5Gb/?s) |
| Grafica |
iGPU |
| Senza Fili |
Wi-Fi 6 (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX201), Bluetooth 5.2 |
| Livello Raid |
0/?1/?5/?10 (Z790) |
| Design Vrm |
14+1, 15 fasi CPU virtuali (2x7+1), 8 fasi CPU reali (7+1) |
| Mosfet Vcore |
14x 50A SiC639 (DrMOS) |
| Mosfet Soc/Vccgt |
1x 50A SiC639 (DrMOS) |
| Controller Pwm |
ASP2100 (RT3628AE, max. 9 fasi) |
| Beleuchtung |
N/?D |
| Bios |
1x 24MB (192Mb) |
| Besonderheiten |
Condensatori audio+solidi, Bianco Build-compatibel (PCB primimär schwarz), 1x M.2-Passivkühler |
| Garanzia |
3 anni |
| Hinweis |
Compatibile con Sockel 115x/?1200-Kühler. Durch Unterschiede der Z-Höhe (Stack-Up-Height), verringert sich jedoch der Anpressdruck und damit die Kühlleistung. |
| Usb-Schreibweise |
Link |
| Aggiornamento Precedente Letztes |
2026-01-13, 13:43 |
| Gelistet Set |
2022-09-27, 21:22 |
