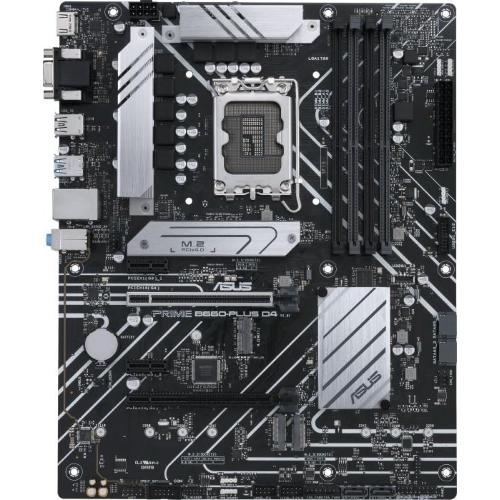

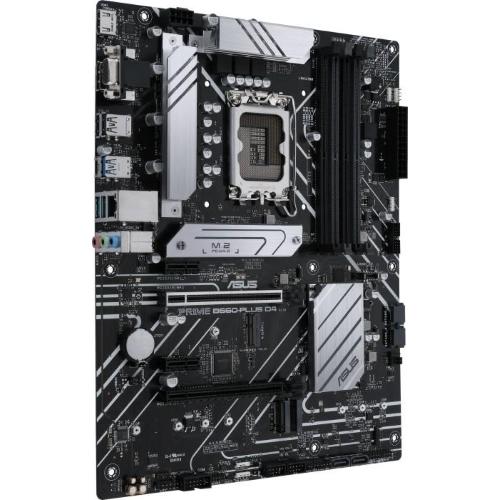

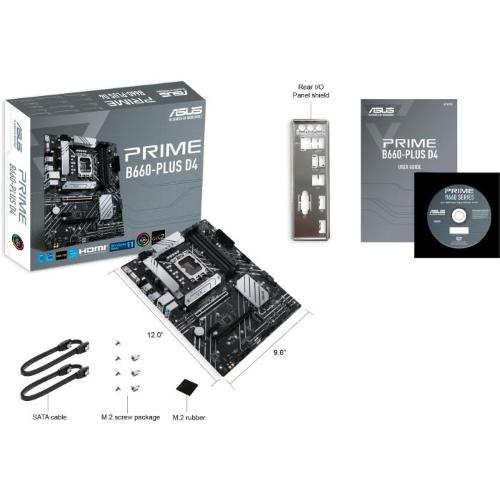

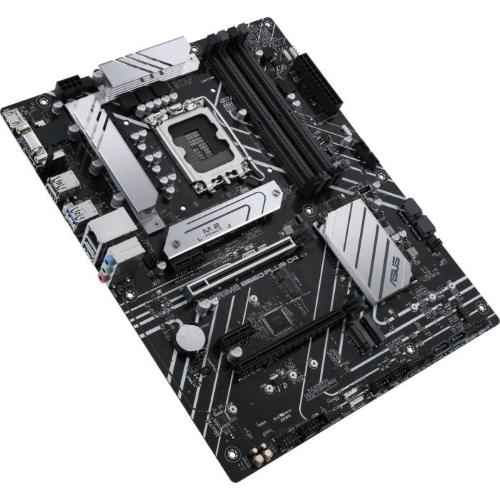

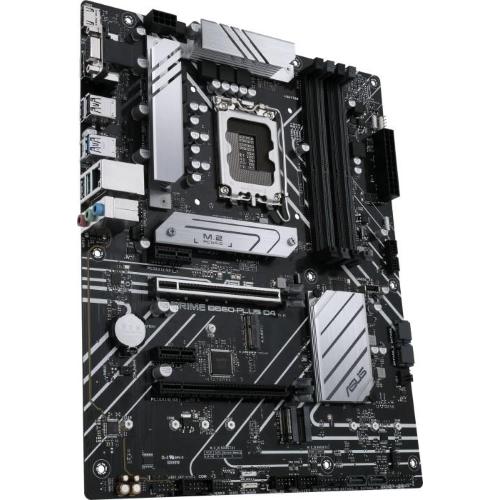

| shape factor |
ATX |
| Socket |
Intel 1700 (LGA1700) |
| chipset |
Intel B660 |
| CPU-Compatibility |
Celeron G6000,Pentium Gold G7000,Core i-12000,Core i-13000,Core i-14000,CPU-compatibility list |
| RAM-Slots |
4x DDR4 DIMM, Dual Channel, UDIMM (Non-ECC), max. 128GB (UDIMM) |
| RAM-operating frequency OC |
max. DDR4-5066 |
| RAM-operating frequency native |
DDR4-3200 (Celeron G6000), DDR4-3200 (Pentium Gold G7000), DDR4-3200 (Core i-12000), DDR4-3200 (Core i-13000), DDR4-3200 (Core i-14000) |
| ECC support |
no |

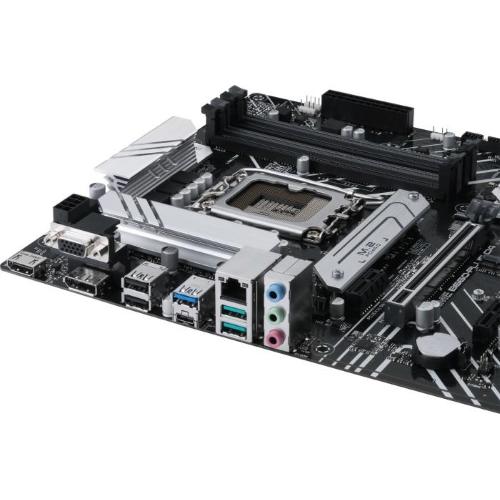

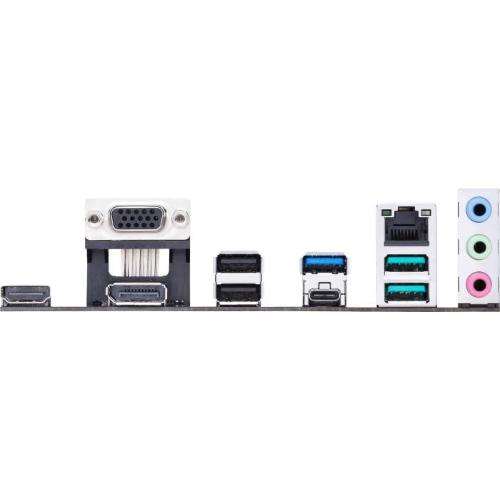

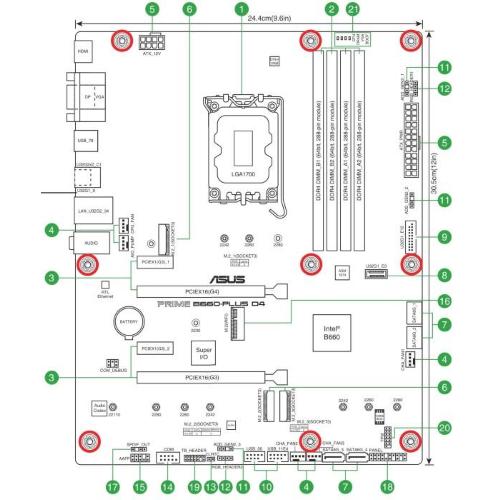

| external connectors |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x VGA (iGPU), 1x USB-C 3.2 (20Gb/?s, B660), 2x USB-A 3.1 (10Gb/?s, B660), 1x USB-A 3.0 (5Gb/?s, B660), 2x USB-A 2.0 (480Mb/?s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2.5GBase-T, Realtek) |
| PCIe-Slots |
1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1 |
| M.2-Slots |
1x M.2/?M-Key (PCIe 4.0 x4, 2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x4, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 4.0 x2, 2280/?2260/?2242), 1x M.2/?E-Key (2230) |
| Miscellaneous Interfaces |
4x SATA 6Gb/s (B660) |
| internal connectors - USB |
1x USB 3.0 Header Key-A (5Gb/?s, 1x USB-C, B660), 1x USB 3.0 Header 20-Pin (5Gb/?s, 2x USB-A, B660), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other |
1x serial Header, 1x Thunderbolt Header 13-Pin (ASUS), 1x TPM Header, 1x S/?PDIF Header, 1x Chassis Intrusion Header, 1x COM Debug Header |
| internal connectors - Cooling |
1x CPU fan 4-Pin PWM, 3x fan 4-Pin PWM, 1x AIO-pump 4-Pin PWM |
| internal connectors - Power supply |
1x 24-Pin ATX, 1x 8-Pin EPS12V |
| internal connectors - Lighting |
2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 3x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Audio |
Realtek ALC897 |
| network |
Realtek (2.5Gb/?s) |
| Graphics |
iGPU |
| Wireless |
not available |
| RAID level |
0/?1/?5/?10 (B660) |
| VRM-Design |
6+1, 7 virtual CPU-phases (6+1), 7 real CPU-phases (6+1) |
| MOSFETs VCORE |
6x 46A 4C10B/?12x 4C06B (High-/?Low-Side) |
| MOSFETs SOC/VCCGT |
1x 46A 4C10B/?2x 4C06B (High-/?Low-Side) |
| PWM-controller |
ASP2100 (RT3628AE, max. 9 phases) |
| Lighting |
not available |
| BIOS |
1x 16MB (128Mb) |
| Special features |
audio+solid capacitors, Diagnostic LED (LED indicators), white Build compatible (PCB primary black) |
| Note |
new product-revision with aktualisiertem BIOS for Core i-14000 (Raptor Lake-S Refresh) in the trade (PN: 90MB18X0-M1EAY0 /? EAN: 4711081523017). |
