| Fattore Di Forma |
ATX |
| Sockel |
AMD AM4 |
| Chipsatz |
AMD B550 |
| Compatibilità Cpu |
Ryzen 3000,Ryzen 4000G,Ryzen 5000,Ryzen 5000G,Elenco compatibilità CPU |
| Ram |
4x slot DIMM DDR4, doppio canale, max. UDIMM da 128 GB non ECC+ECC |
| Velocità Dati Ram |
DDR4-3200 (Ryzen 3000/?Ryzen 4000G/?Ryzen 5000/?Ryzen 5000G), max. DDR4-4800OC |
| Ecc-Unterstützung |
ja |

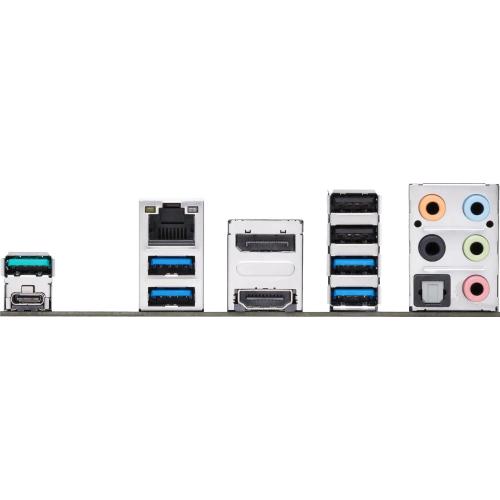

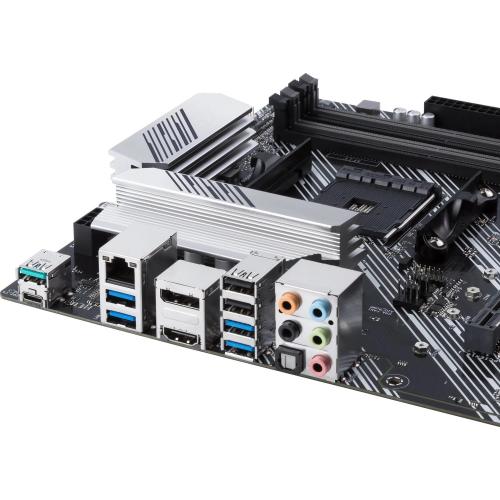

| Accessori Esterni |
1x DisplayPort 1.2 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.1 (10Gb/?s, PCH), 1x USB-A 3.1 (10Gb/?s, PCH), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480 Mb/?s), 1x uscita Toslink S/?PDIF (Realtek ALC887), 5x Klinke da 3,5 mm (Realtek ALC887), 1x RJ-45 (1000Base-T, Realtek RTL8111H) |
| Slot Pcie |
1x PCIe 4.0 x16, 1x PCIe 3.0 x16 (x4), 3x PCIe 3.0 x1 |
| Slot M.2 |
1x M.2/?M-Key (PCIe 4.0 x4/?SATA, 22110/?2280/?2260/?2242), 1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 22110/?2280/?2260/?2242) |
| Sonstige Schnittstellen |
6x SATA 6Gb/s (B550) |
| Anschlüsse Stagista - Usb |
1x Header USB 3.0 a 20 pin (5 Gb/?s, 2x USB-A), 2x Header USB 2.0 a 9 pin (480 Mb/?s, 4x USB-A) |
| Anschlüsse Intern - Sonstige |
1x intestazione seriell, 1x intestazione TPM, 1x intestazione Thunderbolt a 13 pin, 1x intestazione COM Debug |
| Anschlüsse Intern - Kühlung |
2x CPU-Lüfter 4-Pin PWM, 3x Lüfter 4-Pin PWM, 1x AIO-Pumpe 4-Pin PWM, 1x Thermal-Sensor Header |
| Anschlüsse Stagista - Stromversorgung |
1x ATX a 24 pin, 1x EPS12V a 8 pin |
| Anschlüsse Stagista - Beleuchtung |
2x RGB a 4 pin (+12V/?G/?R/?B, max. 3A), 1x ARGB a 3 pin (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Audio |
Realtek ALC887 |
| Rete |
Realtek RTL8111H (1Gb/?s) |
| Grafica |
iGPU |
| Livello Raid |
0/?1/?10 (B550) |
| Vrm-Design |
8+2, 10 fasi CPU virtuali (2x4+2), 6 fasi CPU reali (4+2) |
| Mosfet Vcore |
8x 58A SiRA14DP/?SiRA12DP (High-/?Low-Side) |
| Mosfet Soc/Vccgt |
2x 58A SiRA14DP/?SiRA12DP (High-/?Low-Side) |
| Controller Pwm |
ASP1106 (RT3667BE, max. 6 fasi) |
| Beleuchtung |
arancione, 1 zona (Audio-Signalweg) |
| Bios |
1x 32MB (256Mb) |
| Besonderheiten |
Condensatori solidi+audio, LED diagnostico (indicatore LED), compatibile con la struttura bianco (PCB inizialmente nero), compatibile AMD 2-Way-CrossFireX (x16/?x4) |
| Garanzia |
3 anni |
| Usb-Schreibweise |
Link |
| Aggiornamento Anticipato |
2026-01-13, 13:41 |
| Gelistet Set |
2020-05-25, 11:41 |
