| Type |
Mini PC |
| chipset |
System-on-Chip (SoC) |
| Socket |
not available |
| CPU |
Intel Core i7-1260P, 4C+8c/16T, 2.10-4.70GHz, 18MB+9MB cache, 28-64W TDP (PBP/MTP), 35W cTDP (Intel), Codename "alder Lake-P" (golden Cove + Gracemont, Intel 7) |
| RAM |
2x DDR4 SO-DIMM, dual PC4-25600S/?DDR4-3200, max. 64GB (UDIMM) |
| HDD |
1x SATA 6Gb/?s, 1x M.2/?M-Key (PCIe 4.0 x4, 2280), 1x M.2/?B-Key (PCIe 3.0 x1/?SATA, 2242) |
| drive bays external |
not available |
| Drive bays internal |
1x 2.5" (7mm) |
| Graphics |
Intel Iris Xe Graphics (iGPU), 96EU/768SP, 1.40GHz, Architecture "Gen 12.2" (alder Lake GT1) |
| GPU-Connectors |
not available |

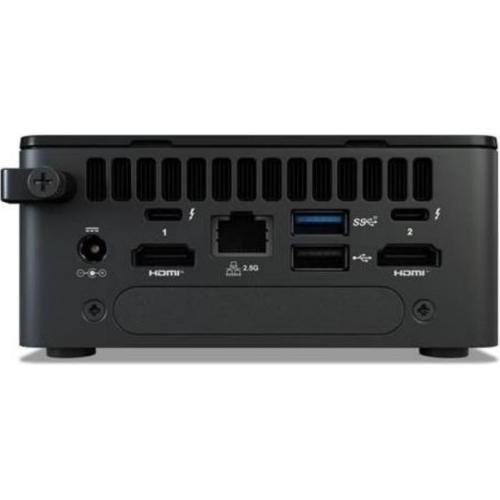

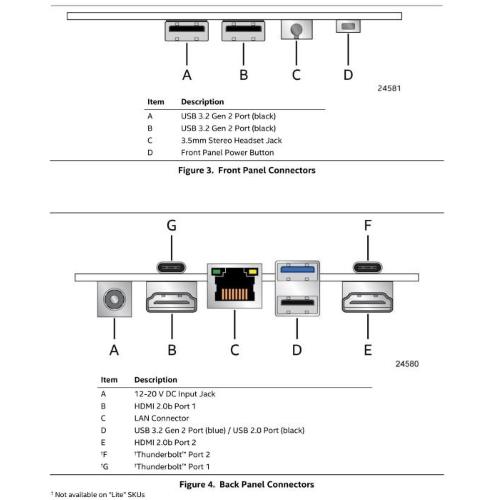

| connectors rear |
2x HDMI 2.0b, 1x USB-A 3.1 (10Gb/?s), 1x USB-A 2.0 (480Mb/?s), 2x Thunderbolt 4 (40Gb/?s), 1x RJ-45 2.5Gb LAN (Intel I225-V), 1x hollow socket (mains connection) |

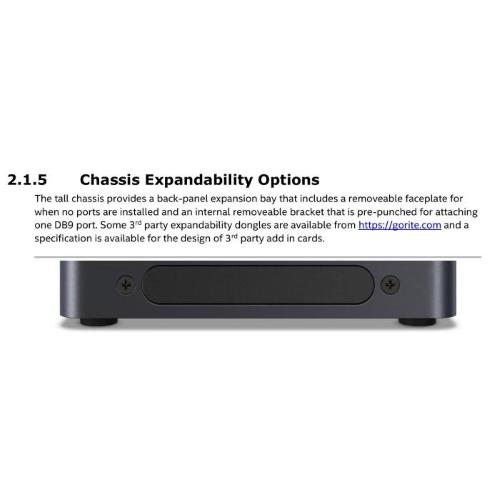

| retrofittable connectors rear |
1x serial |

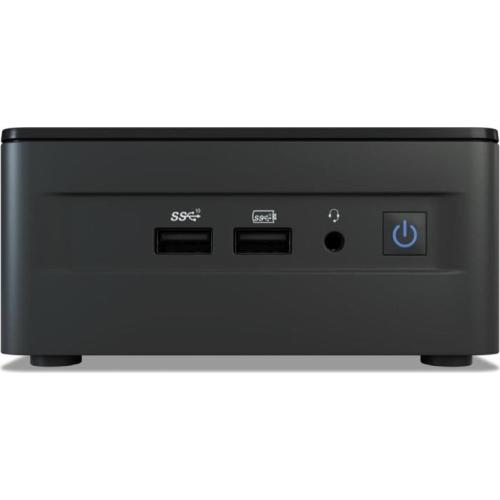

| connectors front/page |
1x USB-A 3.1 (10Gb/?s), 1x USB-A 3.1 (10Gb/?s, BC), 1x 3.5mm jack |
| Extension slots |
1x M.2/?E-Key (Intel CNVi, 2230, occupied with WiFi+BT module) |
| Wireless |
Wi-Fi 6E (WLAN 802.11a/?b/?g/?n/?ac/?ax, 2x2, Intel AX211), Bluetooth 5.3 |
| card readers |
not available |
| Power supply |
external, 1x barrel connector (120W/?19V) |
| VESA-mounting |
75x75/?100x100 (included) |
| Dimensions (WxHxD) |
117x54x112mm |
| Capacity |
0.7l |
| CPU Coolers |
included |
| Special features |
security lock (Kensington), 4x display support, suitable for continuous operation |
| Note |
Different power adapter cables possible. Please note the ordering code's final digit. (RNUC12WSHI7000[x],Overview) |
