- 120 mm PWM intake fan in white with configurable LC display in a 3-pack
- Practical plug system and improved daisy-chaining for less cable clutter
- 32 digitally addressable RGB LEDs
- Speed and lighting controllable via Lian Li L-Connect 3 software
- Max. 1,900 RPM speed at 31 dB(A)
- 92.3 m³/h max. airflow and max. 2.83 mmH2O static pressure
- Rubber pads to decouple disruptive vibrations
- Lian Li 12TL fan controller included
Note: This fan set requires the Lian Li 12TL fan controller. A direct connection to the motherboard is not possible.
Lian Li UNI FAN TL LCD Series Reverse Blade: Intake fan to complement your setup
The reverse blade variant of the Lian Li UNI FAN TL LCD Series is an intake fan that perfectly integrates into your setup with conventional Lian Li UNI FAN TL LCD Series. The PWM fan uses the same plug system that frees gaming PCs from unnecessary cable clutter. Lian Li also impresses in terms of cooling performance, delivering breathtaking RGB lighting that sets new standards.
With the reverse blade fans of the Lian Li UNI FAN TL LCD Series, you can create airflow in the reverse direction while still showcasing the stylish side with the hub of the fans. This ensures that, despite the reversed airflow, you always see the attractive side of the fan - for a cohesive look in your case.
Personalise your fans via LCD

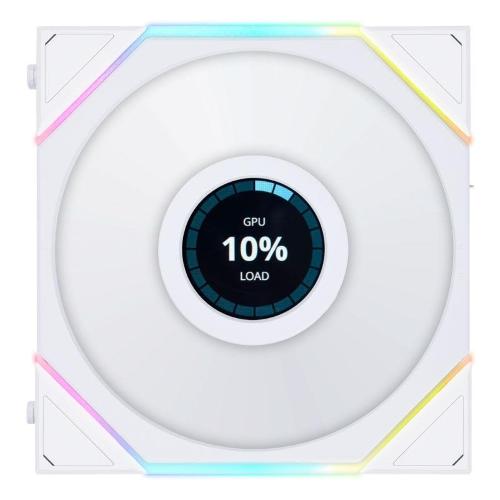

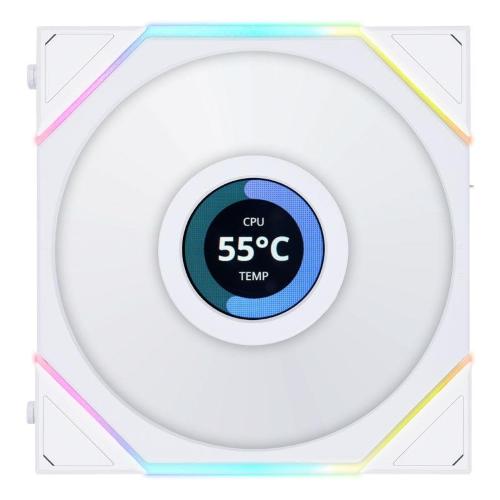

At the hub of the Lian Li UNI FAN TL LCD Series, there is a 1.6-inch display with a resolution of 400 x 400 pixels that can be configured almost freely. For example, fan speed, temperature, or CPU and GPU load can be displayed there. Alternatively, you can upload your own images, GIFs, or short videos via L-Connect 3 software to give the fans your personal touch. Lian Li points out that the more sensors used, the more the CPU is stressed, and therefore no more than three sensors should be used.
Plug system for seamless fan clusters

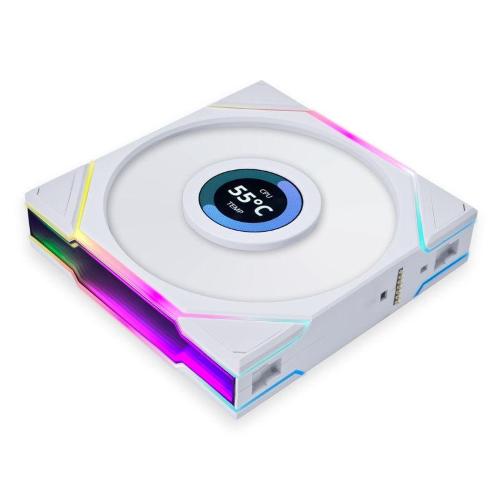

The installation of the Lian Li UNI FAN TL LCD Series follows the clever concept of the other fans from Lian Li: The fans are equipped with contact points and are connected via a practical plug system. Multiple fans can be combined into a cluster and conveniently connected to the controller with just one cable. Thanks to this improved daisy-chain system, you save time, nerves, and prevent unnecessary cable clutter. The pin contacts carry both power and PWM and ARGB signals.
Revised plug system of the Lian Li UNI FAN TL LCD Series
The plug system introduced with the UNI FAN SL and AL Series has been further improved in the Lian Li UNI FAN TL LCD Series. On the one hand, the plug system has been designed so that the connection plug can be removed. This prevents possible collisions with connections on the radiator while providing a tidy appearance.
Additionally, the connection for the cable module has been removed; instead, the cable can now be connected directly to the fan. The connection is flatly embedded in the frame, thus providing more space for the use of radiators.

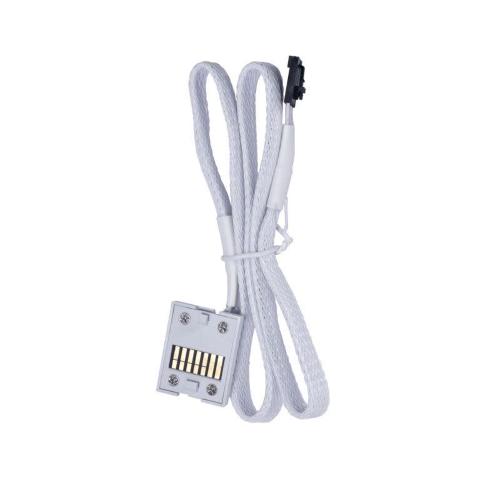

The usually separate cables for power and ARGB signals have been combined into a 7-pin cable. You can connect these cables directly to the controller. Up to four fans in a cluster can be powered with one cable. With the appropriate extension cable, you can connect up to 6 fans with LCD to the two ports of the controller and control them via L-Connect 3 software.
Note: The connections of the Lian Li UNI FAN TL LCD Series are
not compatible with the SL and AL Series!
Lian Li UNI FAN TL LCD Series Reverse Blade: Impressive performance values
The intake fans operate relatively quietly at max 31 dB(A) under full load. The small distance of the fan blades to the frame and the resulting reduced friction resistance allow for higher speeds at the same power consumption, resulting in a significantly increased airflow and excellent performance values. Cooler temperatures are also favoured by the increased height of 28 millimetres.
Additionally, via L-Connect 3 software, you can activate the start/stop mode for your Lian Li UNI FAN TL LCD Series. If your components are below a temperature you set (maximum 50 degrees), the fans remain off. Moreover, L-Connect 3 offers the possibility to create an optimised fan curve for speed and temperature.
Optimised concept for lighting and look

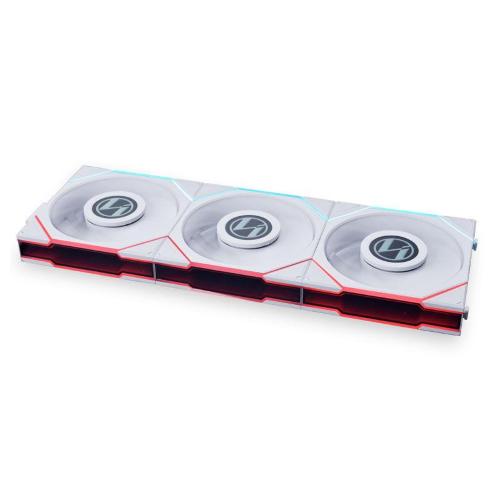

Lian Li has significantly improved the fans. The side LED strips of connected fans now have a distance of 0.7 millimetres compared to 3 and 5.6 millimetres in the previous generation, resulting in a significantly reduced gap between individual fans. This creates seamless transitions of the illuminated areas, and effects across fan clusters are enhanced. Lian Li has redesigned the rubber pads and added additional cutouts. The elaborate RGB lighting, which also illuminates the infinity mirror on two sides, is thus better showcased.
