Raijintek Ophion M Evo ALS Micro-ATX Case - Black Mod. 0R20B00138

Raijintek has created the Ophion M EVO ALS as the bigger brother of the Ophion EVO. The Ophion M EVO ALS version offers impressive, stylish and high-quality materials along with two side panels in tempered glass. The exterior is entirely aluminium. The case offers space for Mini-ITX- and mATX motherboards. Behind its stylish exterior, users will enjoy the opportunity to install some seriously high-end hardware. This case even allows the installation of a 360 mm radiator at the top.

The Raijintek Ophion M EVO ALS Micro-ATX Case at a Glance:

• Black aluminium case from Raijintek
• Two aluminium side panels
• Compatible with Mini-ITX- and Micro-ATX motherboards
• Exterior is high quality aluminium with polished surfaces
• Space for a 360 mm radiator and powerful ATX power supplies
• Supports dual-slot gaming graphics cards up to 41 cm in length
• Includes riser module with full PCI Express 3.0 x16 speeds
• Space for three 3,5"- or five 2,5" storage devices

The Raijintek Ophion M EVO ALS Micro-ATX Case in Detail

The ingenious design of the Ophion M EVO ALS from Raijintek enables owners to install an uncompromisingly powerful gaming PC despite its small dimensions: The graphics card is installed in parallel to the rear of the motherboard tray in a separate chamber. Furthermore, every square inch of the Raijintek Ophion M EVO ALS is used in the most space-efficient manner, minimising wasted space that is usually present in many tower-style cases.

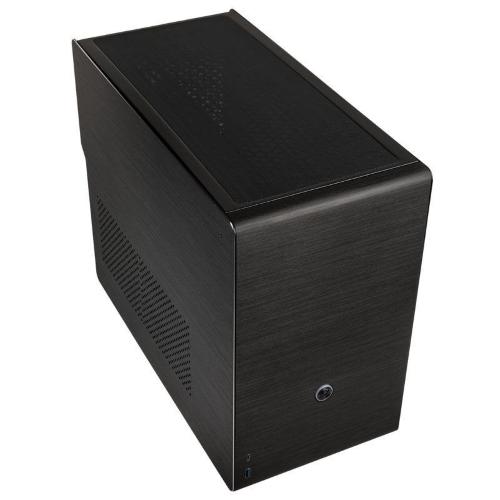

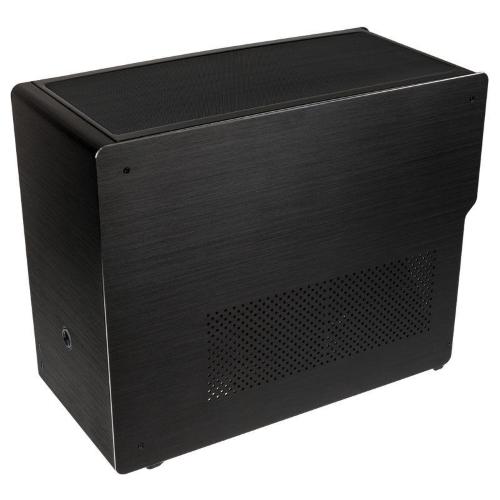

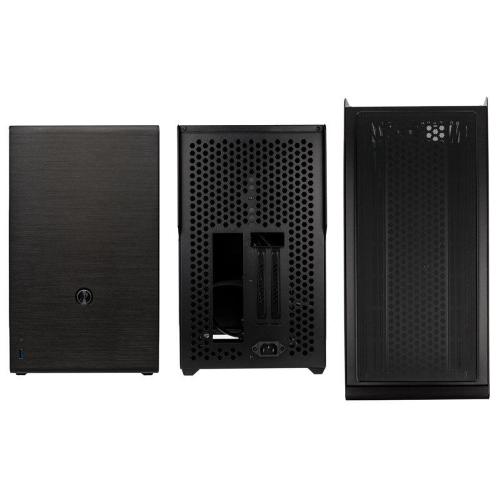

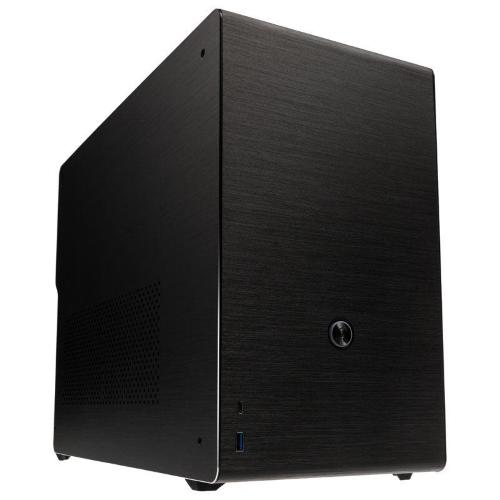

The exterior of the case is sleek and offers flawless craftsmanship. The anodised black aluminium is 2 mm thick and the stylish hairline finish ensures a unique and distinctive look. The clean and sleek front of the Ophion M EVO ALS includes, in addition to the power button with the Raijintek logo, two USB ports with motherboard connectors. Apart from the USB 3.0 Type A port, Raijintek has also included a modern USB 3.0 Type C connection.

The clever yet minimalist design of the case also ensures that airflow moves from the bottom to the top with minimal obstruction. The bottom of the case allows for an optional 120-, 140-, or even 200 mm fan to intake fresh air. This air is pushed out by up to three 120 mm fans. The airflow therefore cools the main chamber with the motherboard and CPU as well as the chamber to the rear where the graphics card is installed. The back and top are equipped with large air vents, while the side panels are attached to the case with spacers and screws, thus contributing to the overall airflow once again. The Ophion M EVO ALS even has enough space for two 200mm fans or a 360 mm radiator at the top.

The Riser Module: Perfect for High-End Graphics Cards

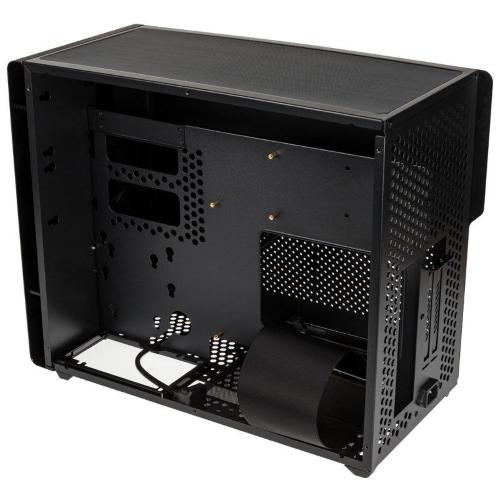

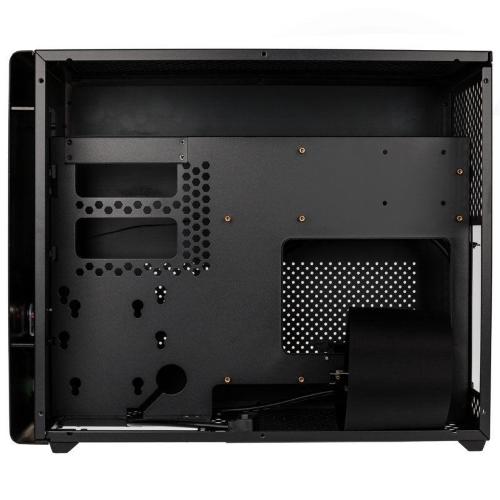

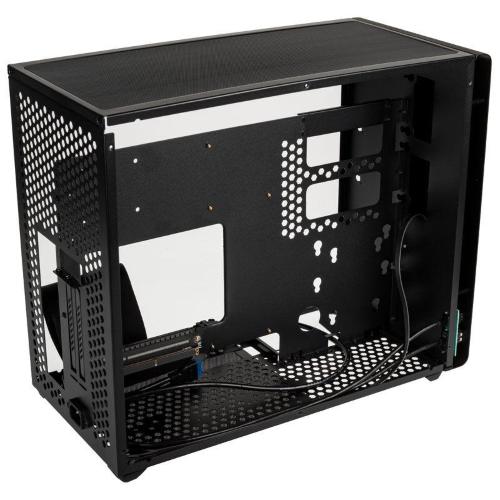

The right side of the case's interior allows for a motherboard in either Mini-ITX- or mATX formats to be installed. The CPU can be cooled with a cooler up to 82 mm tall. Flat top-blower coolers are adequate thanks to the falling TDPs of modern processors. Alternatively, an AiO can be used instead. A riser cable allows the PCI-Express x16 slot of the motherboard to be guided into the case's second chamber. This is where graphics cards up to 410 mm in length can be installed.

The power supply of this diminutive gaming system can be PS/2 ATX standard and sits next to the motherboard. An extension for the mains cable leads to the corresponding plug on the back of the housing. Of course, the more compact SFX or SFX-L power supplies can also be used instead.

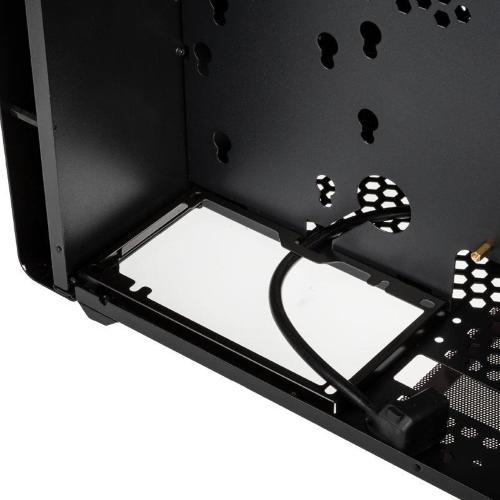

Two 2.5" storage devices fit directly behind the front cover. A total of up to five 2.5" drives or three 3.5" drives can be installed. In order to keep the inside of the stylish case dust-free, magnetic and thus removable filters are attached to the lid and the bottom.

Technical Details:

• Dimensions: 231 x 365 x 453 mm (W x H x D)
• Materialstärke: 2 mm (Aluminium), 0,8 mm (Stahl)
• Weight: 5,89 kg
• Volume: 20,1 l
• Colour: Black
• Form factor: Mini-ITX, mATX
• Total possible fans:
  3x 120 / 2x 140 / 2x 200 mm (top)
  1x 120 / 140 / 1x 200 mm (bottom)
• Total possible radiators:
  1x 120 / 140 / 240 / 280 / 360 mm (top, max. 28 mm thick)
• Dust filters:
  Roof (removable)
  Bottom (removable)
• Drive bays: max. 5x 2,5" / 3x 3,5"
• PSU: ATX, SFX (optional)
• Expansion slots: 2x PCIe (Dual-Slot)
• I/O-Panel:
  1x USB 3.0 Type C (internal connection)
  1x USB 3.0 Type A (internal connection)
• Max CPU cooler height: 82 mm
• Max GPU length: 410 mm
• Max GPU height: 55 mm (dual-slot)
• Special feature: PCIe 3.0 x16 riser module for GPU installation
