- Full tower PC case with unique features and design
- Tempered glass front and side panels to showcase your hardware
- Supports E-ATX motherboards up to 280 mm wide
- Extensive cooling with up to twelve fans or four radiators
- 490 mm GPU clearance, support bracket included
- Hinged rear mesh panel with extensive cable management
- Two ARGB strips frame the motherboard, controller included

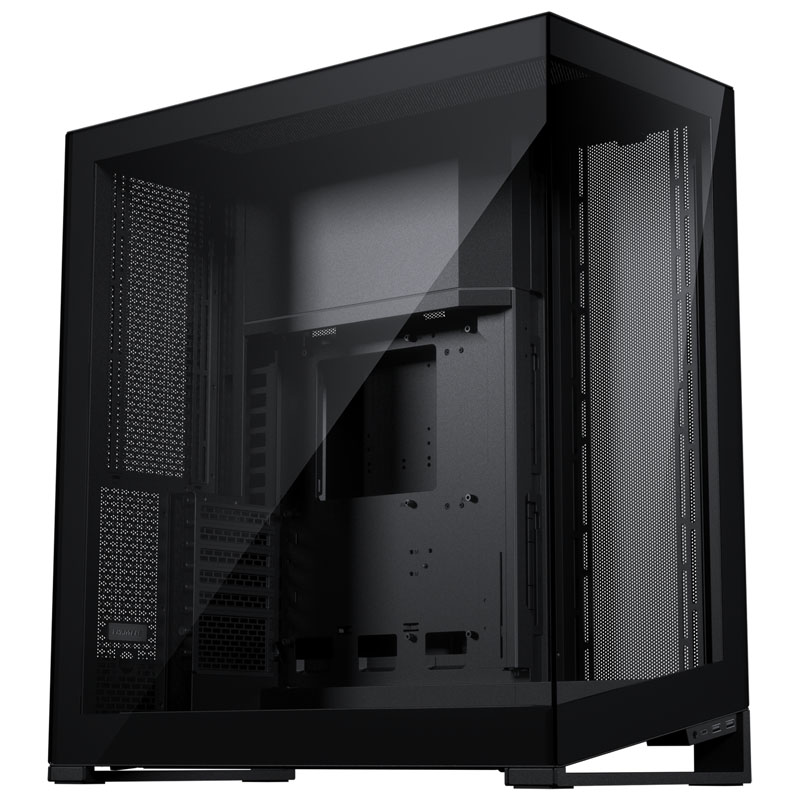

PHANTEKS NV9: Full Tower for High-end Hardware
Taking design to the next level, PHANTEKS presents the NV9 showcase full tower to introduce a brand-new series of cases that combine form and function in a unique way. The NV9's breathtaking aesthetics, well-thought-out functionality, and distinct features result in an unparalleled gaming case, perfect for modern hardware. Whether you want air or water cooling, the NV9 offers plenty of room for both, making it the ideal solution for overclockers with a desire for striking design.
Setting the Picture for Your Gaming Build

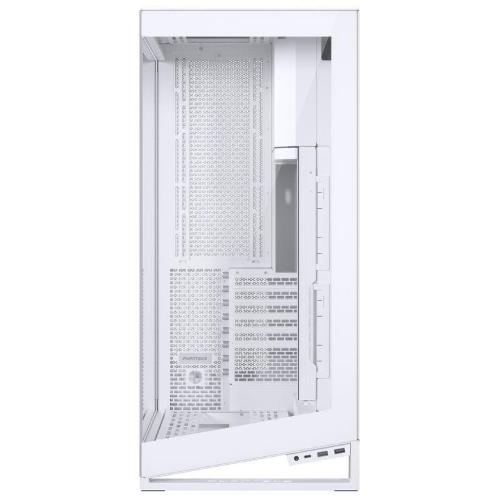

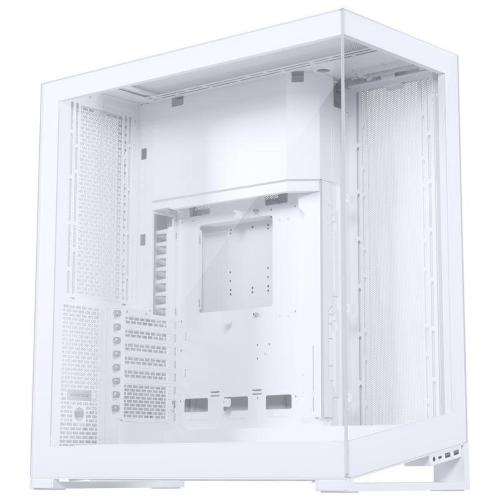

The Phanteks NV9 is designed as a spacious showcase, serving as a picture-perfect frame for a motherboard up to E-ATX in size. The tempered glass panels at the side and front, with their broad silk printing hiding, offer a breathtaking view of the interior, at the same time hiding the sturdy chassis frame. The panels fit together almost seamlessly for an unobstructed view.
Perfect Look from all Sides

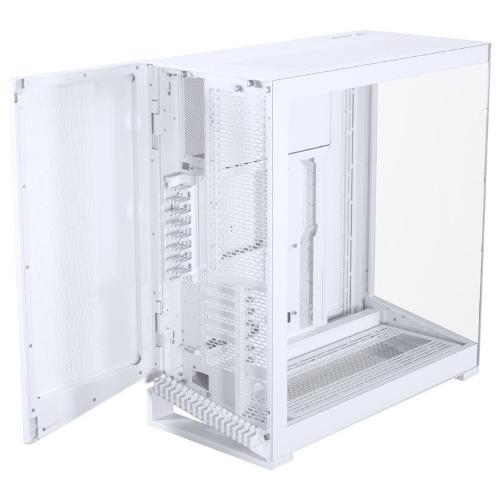

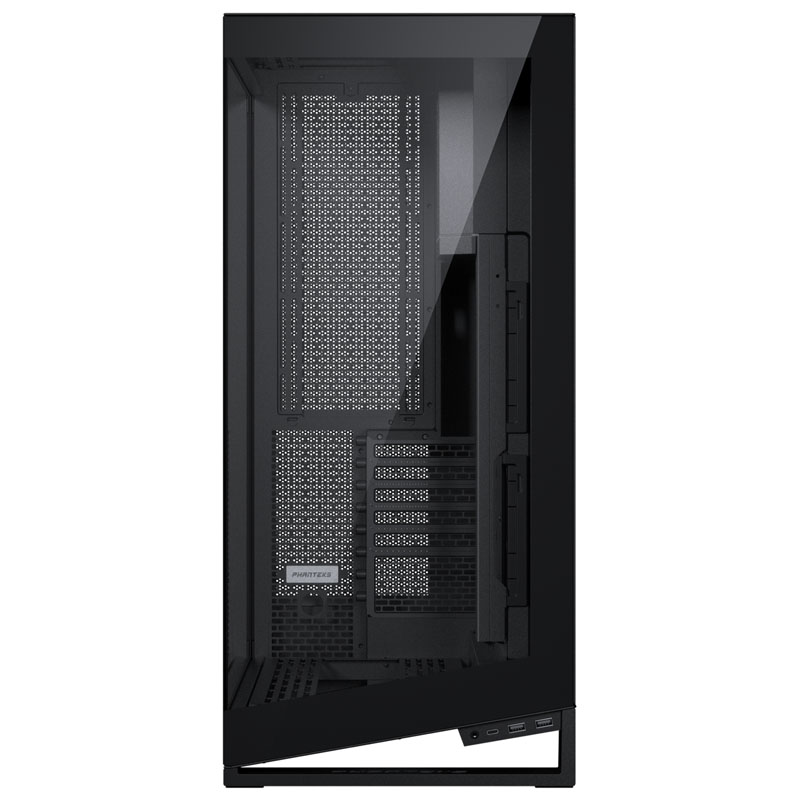

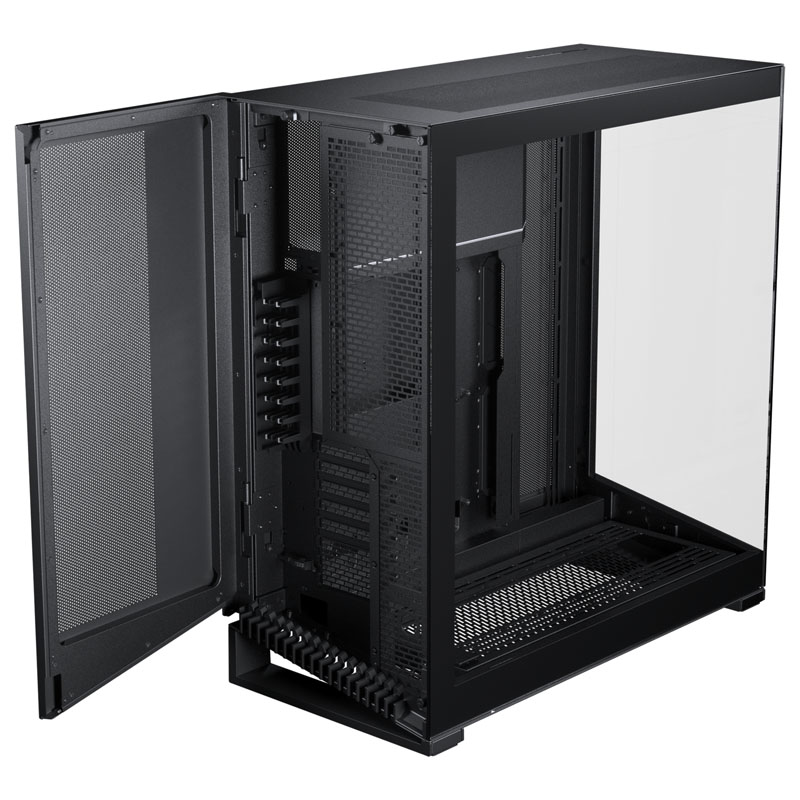

Having a hinged mesh panel at the rear of the case is one of the distinct features of the NV9. It hides the traditionally messy back, letting you place the full tower anywhere you want, without tainting your perfect setup. With this feature comes an extensive cable management. It lets you route your cables in a shaft and individually through a grill at the bottom of the rear door. There is also a hidden grommet underneath the case for further cable routing to the outside.
Plenty of Options for Air and Water-cooling

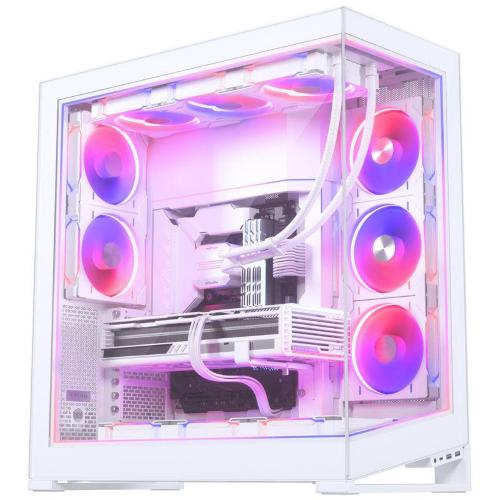

Up to four 120 mm fans at the side, three at the top, three at the floor, and uniquely, two at the rear, further help highlight the motherboard and your high-end hardware at the centre of your build. You can install three 140 mm fans at the side and top. Two 140 mm fans can be placed at the rear. Alternatively, you can place 360 mm radiators at the top, and floor, and even a 480 mm radiator at the side, if you prefer more water-cooling. All three slots can hold a 420 mm radiator simultaneously for even more powerful cooling. Further, the rear can hold a 240 or 280 mm radiator. If you need special cooling for your next-gen graphics card, you can install three 140 mm fans or a 280 mm radiator on the floor instead.
For Perfectly Cooled Next-Gen GPUs

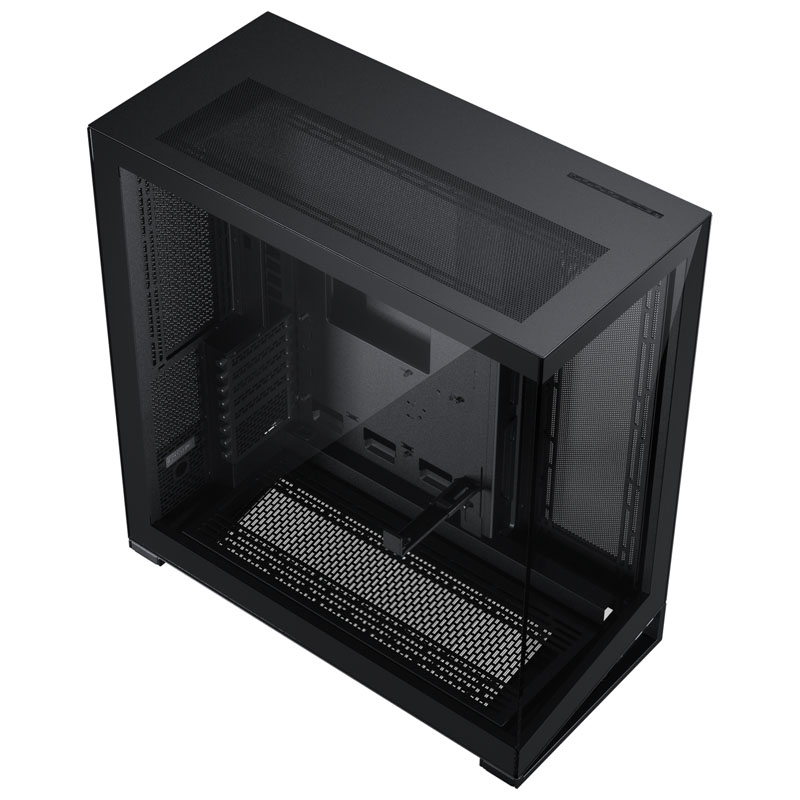

The sloped floor provides plenty of clearance of up to 65 mm, creating an immense intake area. Combined with the high-quality dust filter, this provides the best cooling performance for your graphics card, which can be up to 450 mm in length. An included bracket supports lengthy GPUs when installed horizontally. With an optional bracket, the GPU can be installed vertically, if you wish.
Sophisticated Cable Management

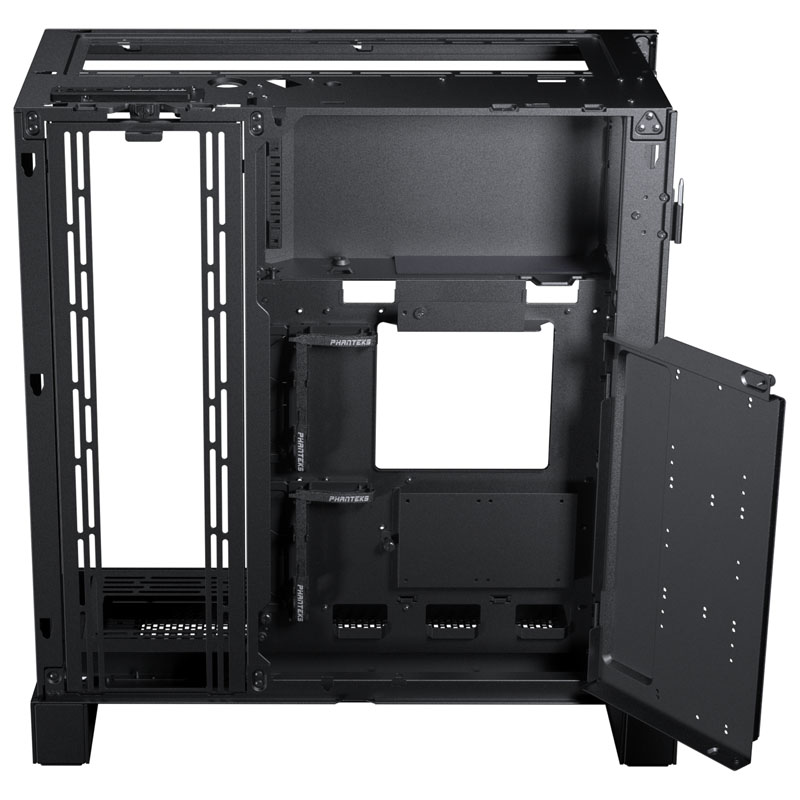

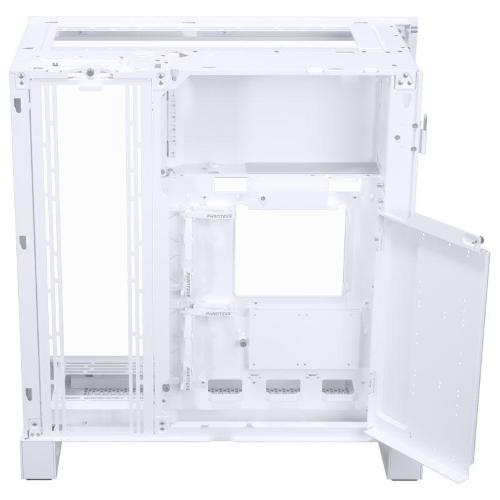

The PSU, with a maximum length of 210 mm, is placed at the top rear of the case, making it easier to route your cables to the motherboard, graphics card, and other hardware components, whilst keeping them hidden from sight at the same time. You can install up to three HDDs or four SSDs in a hinged HDD cage behind the motherboard backplate, all nicely kept from view as well. Another two SDDs can be installed directly at the rear of the motherboard tray.
D-RGB Controller Included

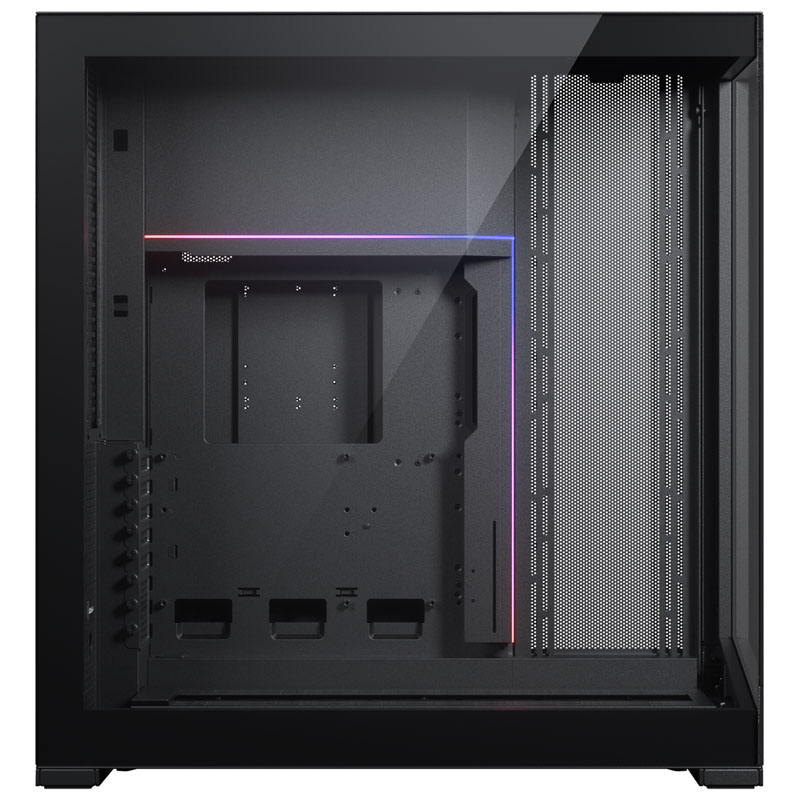

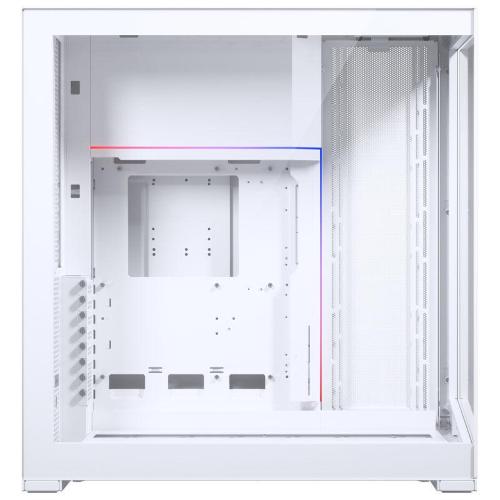

Included is a dual-channel D-RGB controller with four ports in total, to which two LED strips are connected, that decorate the PSU cover and right side of the motherboard backplate. You can choose a channel of the controller, and then adjust speed, colour or mode of the connected lighting with the help of four buttons at the I/O panel, or sync via your motherboard software.
Modular I/O Panel
The I/O panel also provides a USB-C 3.1 and two USB-A 3.0 ports besides the usual power button, and combined headphone and microphone jack. By default, it is placed at the bottom front of the NV9. You can also remove it and place it at the rear of the case for an immaculate front look.
Technical Details:
- Dimensions: 280 x 615 x 575 mm (W x H x D)
- Material: Steel, Tempered Glass
- Weight: approx. 20 kg
- Colour: Black
- Form factor: E-ATX up to 280 mm, SSI-CEB, ATX, Micro-ATX, Mini-ITX
- Fan Support:
Side: 4x 120 / 3x 140 mm
Top: 3x 120 / 140 mm
Floor: 3x 120 / 140 mm
Rear: 2x 120 140 mm
- Pre-installed: none
- Radiator Mountings:
Side: 1x max. 480 / 420 mm (max. 154 x 515 mm)
Top: 1x max. 360 / 420 mm (max. 154 x 515 mm)
Floor: 1x max. 360 / 420 mm (max. 162 x 480 mm)
Rear: 1x max. 240 mm (max. 154 x 325 mm)
- Dust filters: Rear, side, floor
- Drive Bays:
2x 2.5" (Motherboard backplate)
3x 3.5" or 4x 2.5" (HDD cage)
- PCI slots: 8
- I/O Panel:
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x 3.5 mm HD-Audio
1x Power button
1x D-RGB Mode button
1x D-RGB Colour button
1x D-RGB Speed button
1x D-RGB Channel button
- GPU Clearance:
490 mm length
205 mm width
- CPU Cooler Clearance: max. 205 mm
- PSU Clearance: max. 210 mm
- Scope of delivery:
1x SSD/Cable bracket
1x SSD/HDD bracket
1x Two-channel D-RGB controller
1x Front-I/O module
1x Top LED strip
1x Side LED strip
1x GPU support bracket
2x Airflow covers
D-RGB motherboard adapter cable
6x Cable ties
1x Microfiber cloth
1x Screw assortment box
|
