Developed with Roman "der8auer" Hartung,

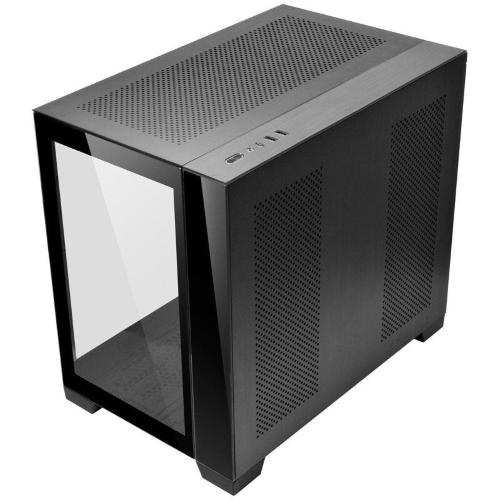

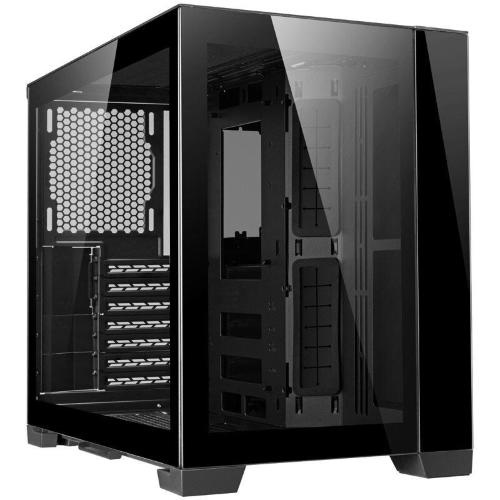

Lian Li with the O11 Dynamic Mini offers not only a smaller, but also an extremely versatile version of the popular O11 Dynamic case. An adjustable rear panel enables users to customise the interior space for the motherboard, the number of expansion slots and radiator options. Thanks to the exchangeable rear panel, the space for the motherboard, the number of expansion slots and the radiator options change. The power supply, drives and cables are housed in a second chamber. The
O11 Dynamic Mini comes with a stylish combination of aluminium and tempered glass.
The Features of the Lian Li O11 Dynamic Mini Mid Tower at a Glance:
- Extremely versatile case with a modular back panel
- Accommodates motherboards with an ATX, Micro-ATX or Mini-ITX form factor
- Front and left side panel from tempered glass
- Roof and right side panel made of aluminium
- I/O panel with one USB-C and two USB 3.0 ports
- Support for graphics cards up to 395 in length
- Up to nine 120 mm fans possible
- Suitable for SFX and SFX-L power supplies
- Including three modular pump stands for easy mounting
O11 Dynamic Mini: Modular PC case with a Stylish Design

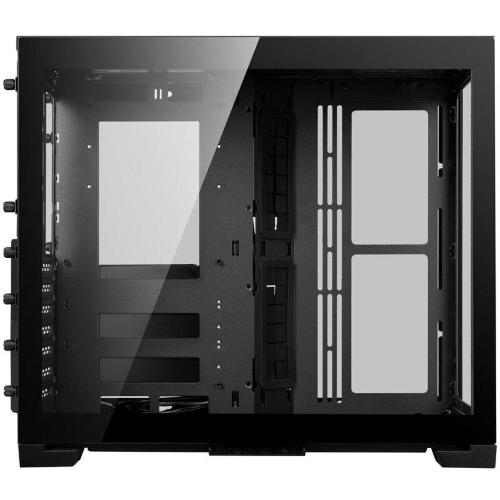

The Lian Li O11 Dynamic Mini is extremely versatile thanks to its modular back panel. The scope of delivery contains various brackets that can be used to adjust the rear panel. This greatly affects the choice of components. The smaller the motherboard, the more space is available for other components.
7 Slots

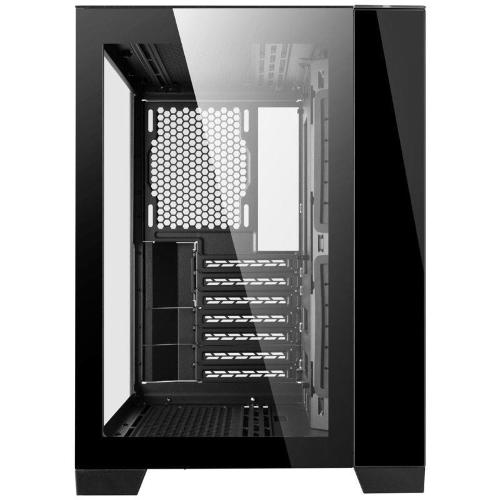

When the rear panel is in its seven slot configuration, an ATX motherboard can be installed. Radiators cannot be attached to the top but it is possible to mount fans there instead. However, you can fit one radiator right next to the motherboard and mount a second one to the bottom of the case.
- Motherboards: ATX, Micro-ATX, Mini-ITX
- Expansion slots: 7
- Roof: 120 or 140 mm fans (up to 25 mm thick)
- Side: 280 mm radiator up to 65 mm thick or 240 mm radiator up to 85 mm thick
- Bottom (ATX): Max. 360 radiator or 120 mm fans
- Bottom (Micro-ATX/Mini-ITX): Max. 360/280 radiator or 140 mm fans
5 Slots
When the rear panel has been configured for five expansion slots, it is possible to install motherboards up to Micro-ATX form factor. The motherboard is mounted in a lower position, so that a radiator can be mounted to the top.
- Motherboards: Micro-ATX, Mini-ITX
- Expansion slots: 5
- Roof: Max. 360 or 280 radiator (up to 65 mm)
- Side: 280 mm radiator up to 65 mm thick or 240 mm radiator up to 85 mm thick
- Bottom (Micro-ATX): Max. a 360 radiator or 120 mm fans
- Bottom (Mini-ITX): Max. a 360 or 280 mm radiator or 140 mm fans
3 Slots
When the rear panel has been set to three expansion slots tehre is room for virtually any graphics card to be installed with the Mini-ITX motherboard. Even the largest radiators can be mounted above and below the motherboard in this configuration.
- Motherboards: Mini-ITX only
- Expansion slots: 3
- Roof: Max. 360 or 280 radiators (up to 100 mm)
- Side: 280 mm radiator up to 65 mm thick or 240 mm radiator up to 85 mm thick
- Bottom: Max. 360/280 mm radiator (up to 75 mm thick) or 140 mm fans

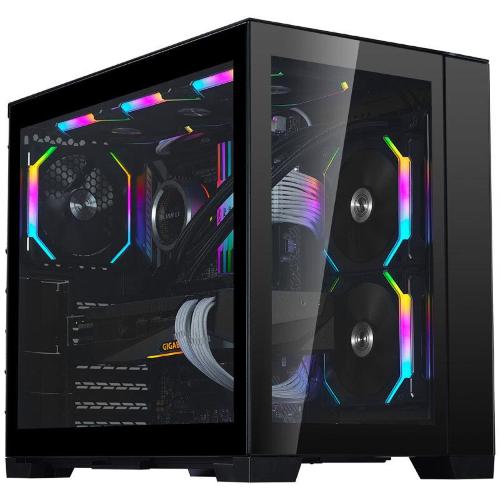

Room for a Powerful Gaming System
A 120 mm fan can be mounted to the rear panel. The air inlets at the bottom, top, and side are equipped with magnetic dust filters, so the interior remains clean. The Lian Li O11 Dynamic Mini accommodates CPU coolers up to 170 mm in height, so that there are practically no limits when choosing a powerful processor cooler. This case also supports particularly large graphics cards up to 395 mm in length.
Hard Drives and SSDs

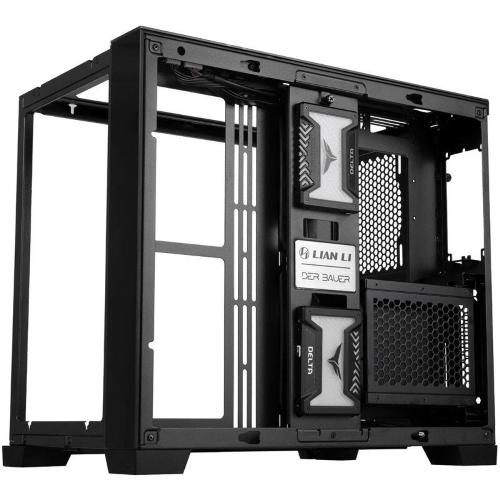

The power supply unit and the drives are housed in the right chamber of the O11 Dynamic Mini. The case supports SFX and SFX-L form factor power supplies and offers bays for a total of four drives:
Design, Materials and Connectivity
The
Lian Li O11 Dynamic Mini has the same distinctive, stylish design that makes the O11 series so popular. The case is based upon a sturdy steel frame. The top and the right side panel are made of black anodized aluminium. The left side panel and the front panel are made of 4 mm thick, tinted tempered glass, so that you can showcase your hardware. The ports and buttons integrated into the top of the Lian Li O11 Dynamic Mini are easily accessible:
- 2x USB 3.0 type-A
- 1x USB 3.1 type-C
- 1x 3.5 mm audio jack (4-pole)
- Power button with integrated HDD LED
Technical Details:
- Dimensions: 269,5 x 380 x 420 mm (W x H x D)
- Materials: steel (interior), aluminium, tempered glass
- Weight: 8.5 kg
- Colour: black
- Form factor: ATX, Micro-ATX, Mini-ITX
- Total fans possible:
3x 120 / 2x 140 mm (top)
2x 120 / 2x 140 mm (side)
3x 120 / 2x 140 mm (bottom)
1x 120 mm (rear)
- Radiator-Mountings:
1x max. 360 / 280 mm (top)
1x max. 240 / 280 mm (side)
1x max. 360 / 280 mm (bottom)
- Dust filters: bottom, top, side
- Drive bays:
2x 3.5/2.5" (internal)
2x 2.5" (internal)
- PSU support: 1x SFX/SFX-L (optional)
- Expansion slots: 7 / 5 / 3 (depending on the rear panel)
- I/O panel:
1x USB 3.1 type-C (internal connector)
2x USB 3.0 type-A (internal connector)
1x 3.5 mm combo audio jack (4-pole, TRRS)
Power button
- Maximum VGA length: 395 mm
- Maximum CPU cooler height: 170 mm
