The

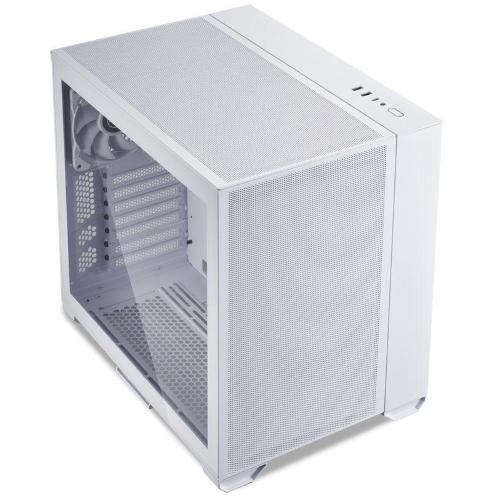

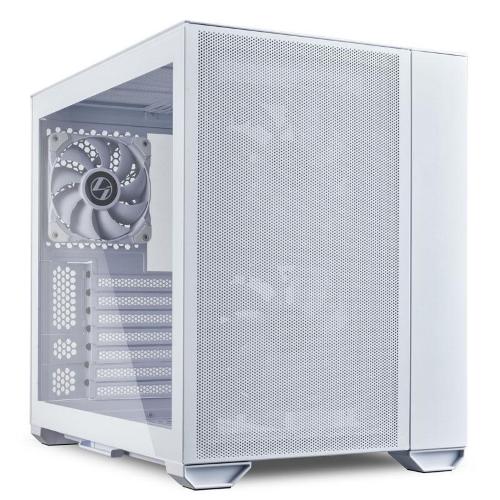

Lian Li O11 Air Mini offers excellent airflow, so that your high-end PC hardware runs cool and quiet. Its adjustable rear panel enables you to customise the interior space for the motherboard, the number of expansion slots and radiator options. The power supply, drives and cables are housed in a second chamber, allowing for clean looking builds. Combining materials such as aluminium and tempered glass, the Lian Li O11 Air Mini looks as stylish as it gets.
The Features of the Lian Li O11 Air Mini Mid-Tower at a Glance:
- Extremely versatile case with a modular back panel
- Accommodates motherboards with an E-ATX, ATX, Micro-ATX or Mini-ITX form factor
- Clear tempered glass side panel to showcase your hardware
- Top, front and right side panel made of aluminium
- I/O panel with one USB-C and two USB 3.0 ports
- Support for high-end graphics cards up to 362 mm in length
- Up to ten 120 mm fans possible for maximised cooling
- Suitable for full-size ATX power supplies to satisfy power-hungry hardware
- Including three PWM fans for efficient cooling out of the box
O11 Air Mini: Modular PC Case with Excellent Airflow
The Lian Li O11 Air Mini is extremely versatile thanks to its modular back panel. The scope of delivery contains various brackets that can be used to adjust the rear panel. This greatly affects the choice of components. The smaller the motherboard, the more space is available for other components.
7-Slot Rear Panel Configuration
When the rear panel is in its seven slot configuration, an ATX motherboard can be installed. Radiators cannot be attached to the top, but it is possible to mount fans there instead. However, you can fit one radiator right next to the motherboard, mount one to the front, and one to the bottom of the case. Sacrificing the side radiator, you'll be able to install an E-ATX motherboard that is up to 280 mm in width.
- Motherboards: E-ATX (without side radiator), ATX, Micro-ATX, Mini-ITX
- Expansion slots: 7
- Top: Three 120 or two 140 mm fans (up to 25 mm thick)
- Side: 240 mm radiator up to 59 mm thick
- Front: Max. 240 / 280 mm radiator or two 120 / 140 mm fans
- Bottom (ATX): max. 240 radiator or two 140 mm fans
- Bottom (Micro-ATX / Mini-ITX): max. 240 or 280 radiator or two 120 / 140 mm fans
5-Slot Rear Panel Configuration
When the rear panel has been configured for five expansion slots, it is possible to install motherboards up to Micro-ATX form factor. The motherboard is mounted in a lower position so that a radiator can be mounted to the top.
- Motherboards: Micro-ATX, Mini-ITX
- Expansion slots: 5
- Top: Max. 240 / 280 mm radiator (up to 65 mm)
- Side: 240 mm radiator up to 59 mm thick
- Front: Max. 240 / 280 mm radiator or 2x 120 / 140 mm fans
- Bottom (Micro-ATX): max. 240 radiator or 2x 120 / 140 mm fans
- Bottom (Mini-ITX): max. 240 or 280 mm radiator or 2x 120 / 140 mm fans
Room for a Powerful Gaming System
An additional 120 mm fan can be mounted to the rear panel in all possible configurations. Super-fine ventilation openings at the front, top, and side panels allow for excellent airflow. The Lian Li O11 Air Mini accommodates CPU coolers up to 170 mm in height so that there are practically no limits when choosing a powerful processor cooler. This case also supports particularly large graphics cards up to 362 mm in length.
Hard Drives and SSDs
The power supply unit and the drives are housed in the right chamber of the O11 Air Mini. The case supports ATX form factor power supplies up to 200 mm in length and offers mounting slots for a total of six drives:
Design, Materials and Connectivity
The

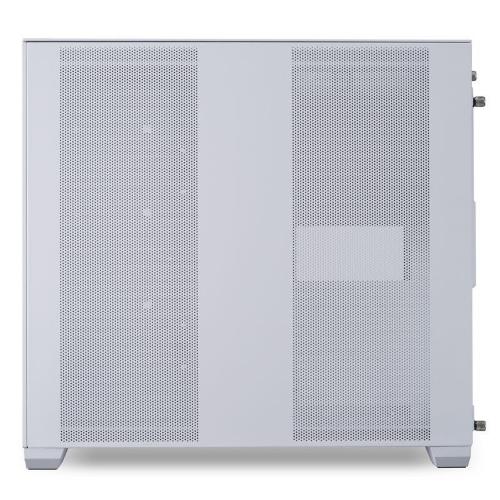

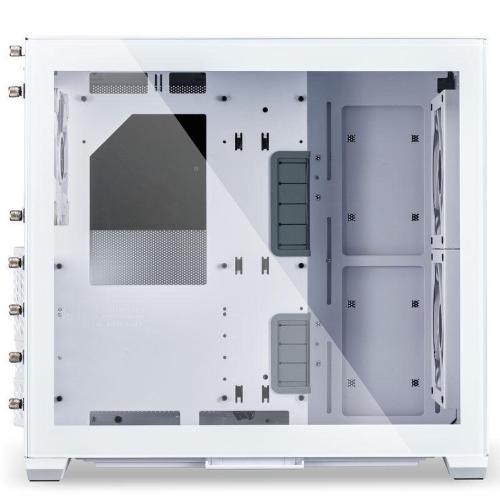

Lian Li O11 Air Mini has a functional, yet distinctive and stylish design. The case is based upon a sturdy steel frame. The top, the front and the right side panel are made of white powder-coated aluminium. The left side panel is made of 4 mm thick tempered glass, so that you can showcase your hardware. The ports and buttons integrated into the top panel of the Lian Li O11 Air Mini are easily accessible:
- 2x USB 3.0 type A
- 1x USB 3.1 type C
- 1x 3.5 mm audio jack (4-pole)
- Power button with integrated HDD LED
Technical Details:
- Dimensions: 288 x 384 x 400 mm (W x H x D)
- Materials: steel, aluminium, tempered glass
- Weight: 8.5 kg
- Colour: white, light grey (rubber grommets), silver (screws)
- Form factor: E-ATX (up to 280 mm wide), ATX, Micro-ATX, Mini-ITX
- Total fans possible:
2x 120 / 140 mm (front)
3x 120 / 2x 140 mm (top)
2x 120 / 140 mm (side)
2x 120 / 140 mm (bottom)
1x 120 mm (rear)
- Radiator-Mountings:
1x max. 240 / 280 mm (front)
1x max. 240 / 280 mm (top)
1x max. 240 mm (side)
1x max. 240 / 280 mm (bottom)
- Dust filters: bottom (slide-in)
- Drive bays:
4x 3.5/2.5" (internal)
2x 2.5" (internal)
- PSU support: 1x ATX (optional)
- Expansion slots: 7 / 5 (depending on the rear panel)
- I/O panel:
1x USB 3.1 type C (internal connector)
2x USB 3.0 type A (internal connector)
1x 3.5 mm combo audio jack (4-pole, TRRS)
Power button
- Maximum VGA length: 362 mm
- Maximum CPU cooler height: 170 mm
- Maximum PSU length: 200 mm
