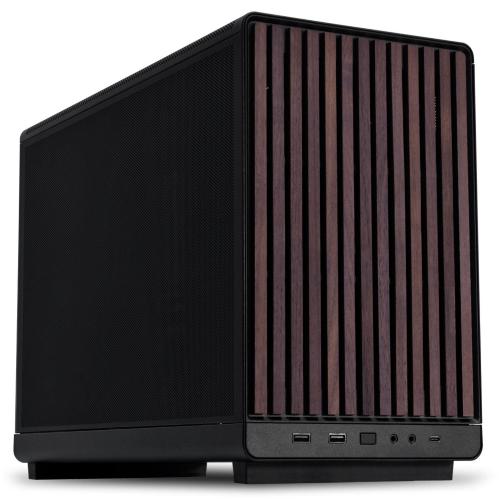

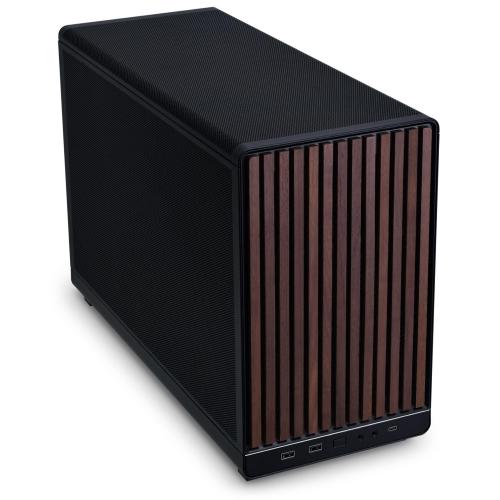

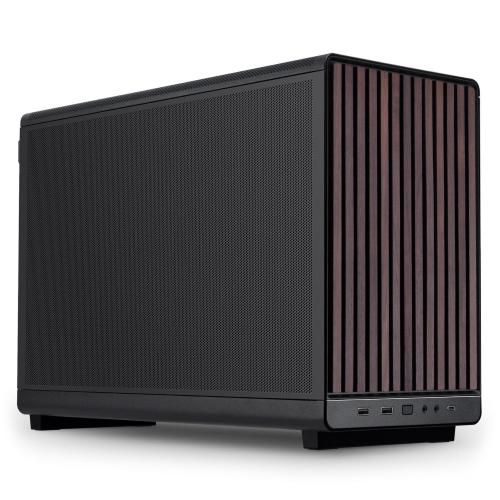

The Lian Li DAN Cases A3-mATX Wood Edition in black combines modern design with a luxurious walnut wood front panel.
With excellent airflow through mesh panels, flexible configuration options, and room for high-end hardware, this case is the perfect choice for those seeking performance and style in a compact form factor.
Ideal for demanding builds with a personal touch!
- Micro-ATX case by Lian Li in collaboration with DAN Cases
- Elegant front panel made of premium walnut wood

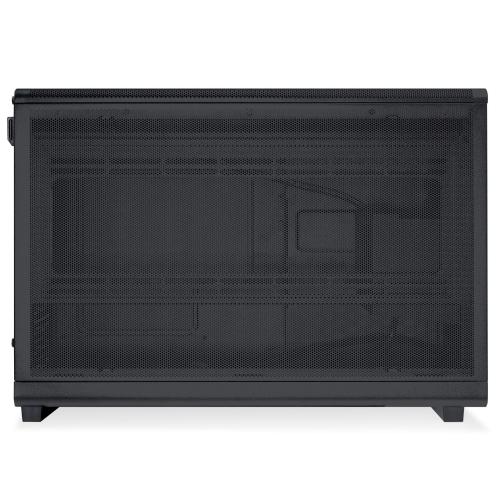

- Mesh panels on the sides and top for excellent airflow
- Highly adaptable: unleash your creativity
- Excellent cooling with space for 360 mm radiators
- Compatible with Micro-ATX or Mini-ITX motherboards
- Supports power supplies from SFX to ATX
A Touch of Luxury: The Lian Li DAN Cases A3-mATX Wood Edition
If you’re looking for a small form factor case for high-performance PC hardware, the Lian Li DAN Cases A3-mATX Wood Edition is an excellent choice. This case combines minimalist design with luxurious features, and the elegant walnut wood front adds a touch of exclusivity to your setup.
With a capacity of approximately 26 litres, this Micro-ATX case is compact and space-saving. At the same time, the A3-mATX Wood Edition is perfectly suited for high-end PC components, providing effective cooling despite its small size. With ample space for fans, radiators, and generous ventilation openings, this mini-tower effortlessly meets the demands of powerful hardware.
Flexibility Meets Performance: The Cooling Options of the Lian Li DAN Cases A3-mATX Wood Edition
The Lian Li DAN Cases A3-mATX Wood Edition offers space for up to ten 120mm fans. These are distributed as follows: three on the top, three on the side, three on the bottom, and one at the rear. Alternatively, two 140 mm fans can be mounted on both the top and the side. With 25 mm thick fans at the bottom of the case, the height of the GPU is limited to 61 mm (3 slots). What's more, there is 165mm clearance for CPU air coolers.
.
Lian Li and Daniel Hansen have also considered water cooling in the design of the A3-mATX. A radiator can be mounted in three locations within the case. The top or side can accommodate a 360 mm (triple radiator) or 280 mm (dual radiator). The bottom of the case offers space for an additional 240 mm radiator. If you mount the fans below the radiator, you can install a 360 mm radiator.
Customisable Configuration: The Versatile Options of the Lian Li DAN Cases A3-mATX Wood Edition
The Lian Li DAN Cases A3-mATX supports Micro-ATX or Mini-ITX motherboards. Unlike a Mini-ITX case, this PC case offers 4 expansion slots, allowing you to install a 4-slot high graphics card up to 415 mm in length.
You can install two 2.5-inch SSDs on a bracket. Additionally, a 3.5-inch HDD or another 2.5-inch drive can be mounted at the bottom of the case. You can decide between an ATX, SFX-L, or SFX power supply, which can be flexibly mounted at the front or side to create more space for your graphics card or radiator—depending on your preference. The general rule for the A3-mATX is: the smaller the power supply, the more room there is for the rest of the hardware.

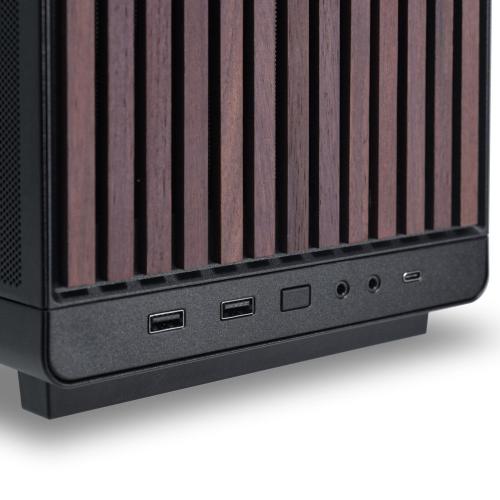

The I/O panel, at the front of the Lian Li DAN Cases A3-mATX Wood Edition, features two USB 3.0 Type-A ports, one USB 3.1 Type-C port, two 3.5 mm audio jacks (mic-in/audio-out), and a power button.
Note: The Lian Li DAN Cases A3-mATX Wood Edition offers numerous configuration options, but space within the case is limited. The size and positioning of the power supply are crucial when selecting the right PC components. We recommend careful planning using the manual before assembly.
