- White Micro-ATX Case by Lian Li in collaboration with DAN Cases
- Mesh panels on sides and top for excellent airflow
- Highly customisable: Let your imagination run wild
- Excellent cooling thanks to 360mm radiator support
- Suitable for Micro-ATX or Mini-ITX form factor motherboards
- Support for PSUs from SFX to ATX
Power Packed, Pocket Sized: The Lian Li DAN Cases A3-mATX Micro-ATX Case
If you're looking for a small form factor case for powerful PC hardware, then it's worth having a look at the Lian Li DAN Cases A3-mATX. With approximately 26 litres of capacity, this micro-ATX case is compact and takes up little space on your desk. Nonetheless, this mini-tower fulfils the cooling requirements of high-end PC hardware.
Flexibility Meets Performance: The Fan and Cooling Options of the Lian Li DAN Cases A3-mATX
The Lian Li DAN Cases A3-mATX can accommodate up to ten 120mm fans. These are distributed as follows: three at the top, three at the side, three at the bottom, and one at the rear. Alternatively, two 140mm fans can be mounted to the top and side. With 25mm thick fans at the bottom, the GPU thickness will be limited to 61mm. For CPU air coolers, there is 165mm clearance.
Lian Li and Daniel Hansen have also considered liquid cooling support in the development of the A3-mATX: A radiator can be mounted at three locations in the case. On the top or side, there is room for a maximum of one 360mm (triple) radiator or 280mm (dual) radiator. An additional 240mm radiator (dual) can be installed at the bottom. With the fans mounted below the radiator, even a 360mm radiator (triple) can be installed.
Customisable Configuration: The Versatile Options of the Lian Li DAN Cases A3-mATX
The Lian Li DAN Cases A3-mATX is suitable for a Micro-ATX or Mini-ITX form factor motherboard. Unlike a Mini-ITX case, this PC case has 4 expansion slots and facilitates a 4-slot high and up to 430mm long graphics card.
Two 2.5-inch SSDs can be installed on a bracket with four mounting positions to choose from. At the bottom of the case, you can mount an additional 3.5-inch HDD or another 2.5-inch drive. For the power supply unit, you have the choice between ATX, SFX-L, and SFX. The PSU can be mounted to the front or the side to create more space for the graphics card or radiator - depending on your preferences. In general, the smaller your power supply, the more space is available for additional hardware.

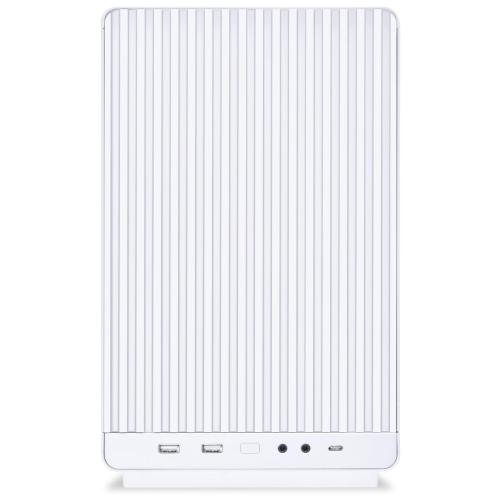

The front I/O panel of the Lian Li DAN Cases A3-mATX has two USB 3.0 Type-A ports, one USB 3.1 Type-C port, two 3.5mm audio jacks (Mic-In/Audio-Out), and a power button.
Note: The Lian Li DAN Cases A3-mATX offers numerous configuration options, but space inside this case is limited. For choosing compatible PC components, the size and position of the power supply are crucial. Therefore, we recommend careful planning using the provided instructions beforehand.
Specifications:
- Dimensions: 194 x 321.5 x 443mm (W x H x D)
- Materials: Steel, Plastic
- Weight: 5kg
- Capacity: 26.3l
- Colour: White
- Form Factor: Micro-ATX, Mini-ITX
- Total Fans Possible:
Top: 3x 120mm / 2x 140mm
Side: 3x 120mm / 2x 140mm
Bottom: 3x 120mm (GPU clearance limited to 61mm with 25mm fans)
Rear: 1x 120mm
- Radiator Mountings:
Top: 1x 360mm / 1x 280mm / 1x 240mm
Sode: 1x 360mm / 1x 280mm / 1x 240mm
Bottom: 1x 240mm / 1x 360mm (only with fans mounted below the radiator)
- Dust Filters: Bottom
- Drive Bays:
2x 2,5" (Tray)
1x 3,5 / 2,5" (Bottom)
- Power Supply: ATX / SFX / SFX-L (optional)
- Expansion Slots: 4
- I/O Panel:
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s, internal connectivity)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s, internal connectivity)
2x 3.5mm audio jack (In / Out)
- Maximum CPU Cooler Height: 165
- Maximum GPU Length: 415mm
- Maximum PSU Length: 220mm
