- Mid tower with improved integrated 2,5K screen including touch function
- 688 x 2,560 (2.5K) resolution and 60 Hz refresh rate
- Tempered Glass side and front panels
- Fresh air supply at the bottom
- Vertical mounting of the graphics card possible
- PCIe 4.0 riser cable included
- Radiators possible on the side, top, or back
- Graphics cards up to a length of 390mm possible
- Maximum CPU cooler height of 180mm
Exceptional design and functionality

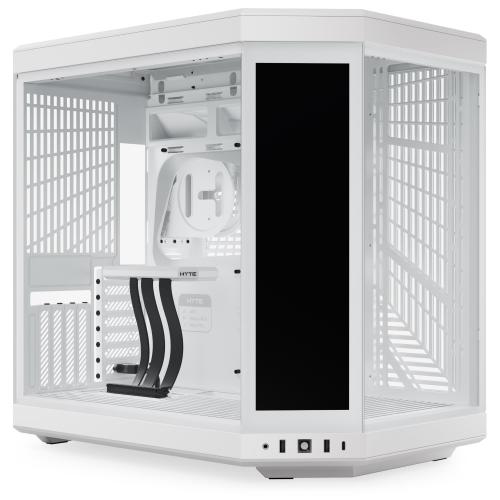

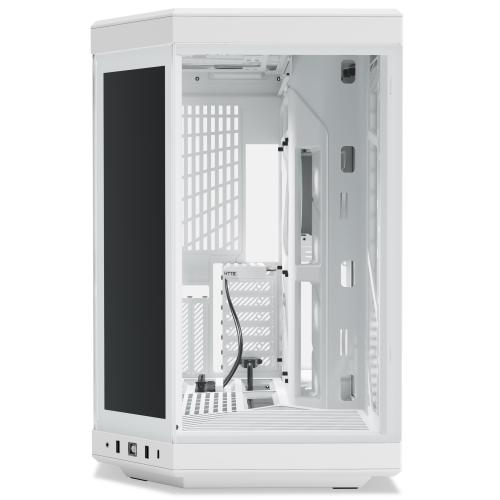

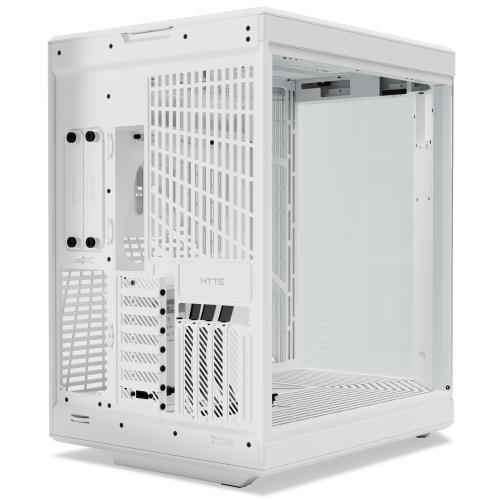

With the Hyte Y70 Touch Infinite, you enter new territory when it comes to the look of your PC build. The mid tower offers you a panoramic view of your hardware with its front and large, three-part Tempered Glass window, allowing you to view it not just from the side. With built-in ventilation slots at the bottom and side of the case, you provide your hardware with optimal cooling airflow.
Furthermore, it's up to you whether you prefer water or air cooling for your components. Due to its exceptional arrangement, the Y70 is well-prepared for both options.
The horizontal PCI slots are low-profile. You can optionally mount your graphics card vertically using the included PCIe 4.0 riser cable and show it off to everyone.
Unique integrated screen

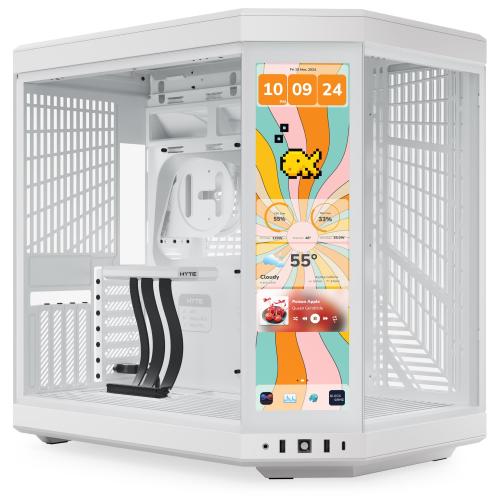

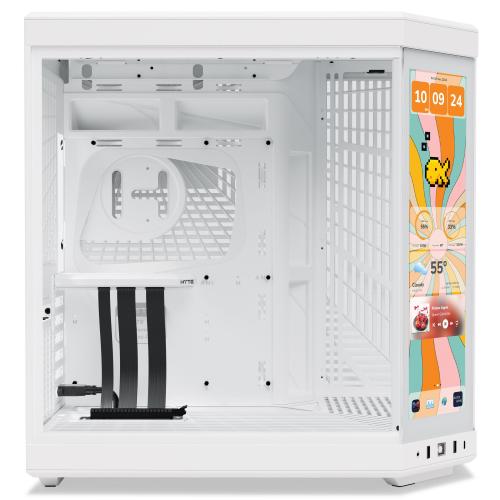

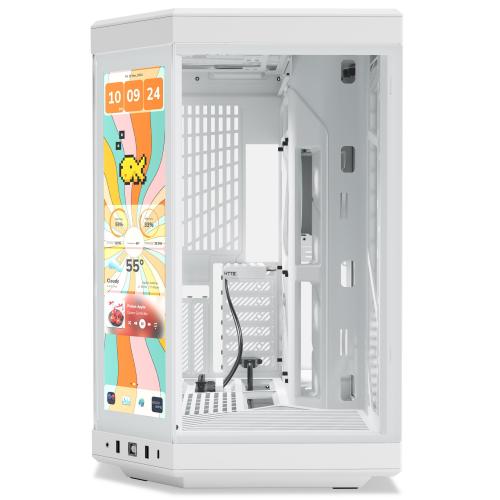

The impressive 14.5-inch 2,5K 60Hz capacitive touchscreen with a resolution of 688 x 2,560 pixels offers a truly sharp and fluid visual experience. It also supports 10-point multitouch capability, opening up many possibilities. Thanks to extensive screen adjustments via the HYTE Nexus Software, you can customise the screen to your liking. All these features are integrated into your case, allowing for meaningful stylish interaction with your applications.
The larger, brighter, and faster 2nd generation panel compared to the regular Hyte Y70 Touch also has a 33% tighter pixel pitch, 17% higher brightness, a 25% higher contrast ratio, and a 50% faster pixel response time for an even better user experience. All in a single package integrated into the case structure, enabling meaningful digital interaction with a superior display in a case.
Good airflow through Cold Floor Cooling

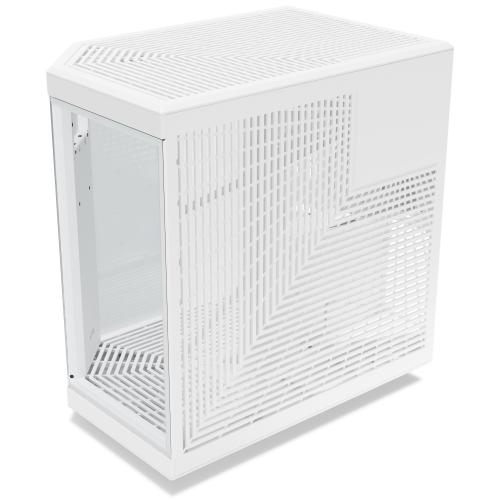

In the Hyte Y70 Touch Infinite, there is room for large components with high power requirements. Therefore, the case is designed to be very open and focused on uninterrupted airflow. Through the Cold Floor, fresh air is sucked in from below and unhindered into the interior of the case. There, it then meets the most important and warmest components like the CPU and GPU, providing very good cooling. With many fan options, the heated air is quickly and efficiently expelled from the case.

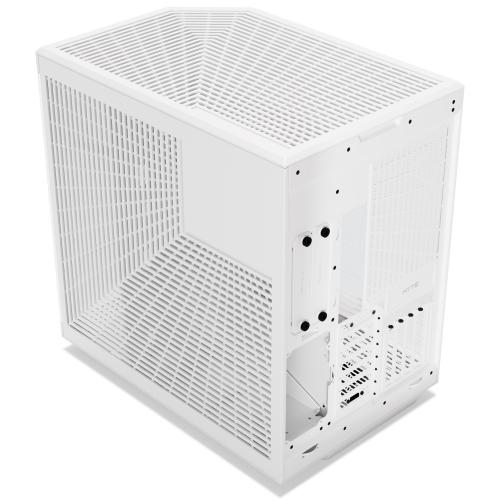

At the bottom, you can fit either 3x 120mm fans or 2x 140mm fans. At the top, there is room for three 120mm fans, on the side three 120mm or two 140mm fans, and at the back 1x 120mm or 1x 140mm fan. Additionally, easily cleanable dust filters are attached to the top, bottom, and side to prevent dust build-up.
If you plan to install a water cooling system, you won't be disappointed here either. There is enough space on the side for a 280mm or 360mm radiator with a maximum height of 125mm. On the top of the case, radiators up to 280mm or 360mm can be placed. The back offers the possibility to use a 120mm or 140mm radiator, for example, for small all-in-one water cooling solutions.
Space for components and vertical GPU

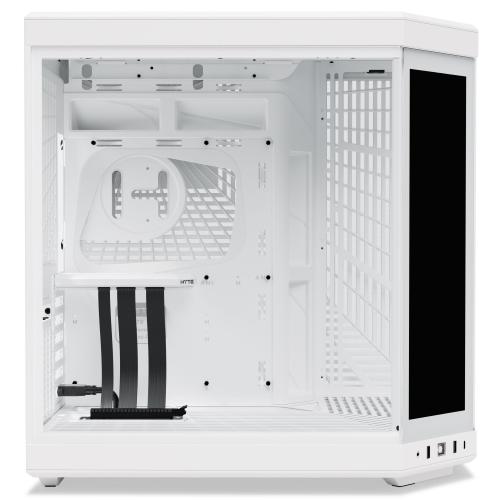

The Y70 Touch Infinite offers the ability to install E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards. This provides a wide selection of platforms and configurations. Additionally, CPU coolers up to a height of 180mm and high-end graphics cards up to a maximum length of 390mm can be accommodated. If you want to showcase your graphics card in the large window, you can optionally mount it vertically. The required riser cable is already included.
By being positioned behind the motherboard, the power supply unit is shielded from the rest of the case. This ensures that the PSU's heat does not enter the main chamber of the case, where the other warm components are located, resulting in lower temperatures inside the case. The orientation of the power supply draws fresh air from the side rather than from the bottom. This helps prevent dust build-up and ensures a longer life for your power supply. For power-hungry hardware, optional ATX power supplies up to a size of 235mm (with cables) can be placed under the cover.
Mounting options for storage drives and I/O panel
In the Y70 Touch Infinite, there are plenty of mounting options for storage drives. You can accommodate either two 3.5-inch or four 2.5-inch drives. This provides enough storage for your games and applications.
The sleek, fish tank design of the Y70 Touch Infinite allows you to build discreet builds with good cooling performance. The side panel and front are made of Tempered Glass, providing a clear view of the internal components. This means there is no obstacle to creating a show-stopping RGB build. The I/O panel does not disappoint fans of mobile storage devices. It features a power button, reset button, 3.5mm combined audio and microphone jack, two USB 3.0 Type-A ports, and one USB 3.1 Type-C port for faster file transfers. Additionally, it is angled and facing towards you.
