| Fattore Di Forma |
µATX |
| Presa |
Intel 1851 (LGA1851) |
| Chipset |
Intel Z890 |
| Compatibilità Cpu |
Core Ultra 200s, elenco di compatibilità della CPU |
| Error 500 (Server Error)!!1500.That’S An Error.There Was An Error. Please Try Again Later.That’S All We Know. |
4x ddr5 dimm, doppio canale, udimm (noncc)/cudimm, max. 256 GB (UDIMM), 256 GB (Cudimm) |
| Ram-Data Rata Oc |
max. DDR5-8800 |
| Ram-Data Rate Nativa |
DDR5-5600 UDIMM/DDR5-6400 Cudimm (Core Ultra 200S) |
| Supporto Ecc |
NO |

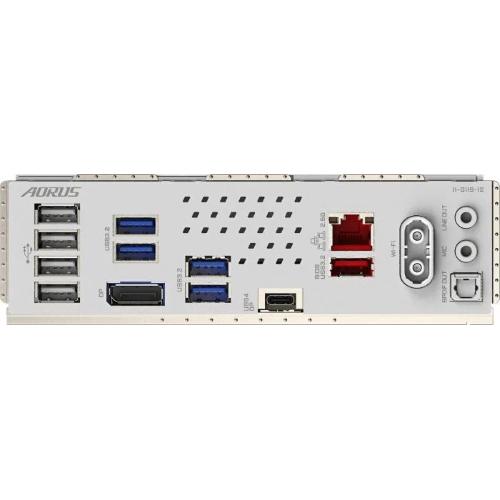

| Connettori Esterni |
1x DisplayPort 2.1 (HDCP 2.3, IGPU), 1x USB4 con DisplayPort 2.1 (40GB/S, PD-O-O-Out, HDCP 2.3, IGPU), 1x USB-A 3.1 (10GB/S), 4x USB-A 3.0 (5GB/S), 4x USB-A 2.0 (480MB/S) (Realtek ALC897), jack 2x da 3,5 mm (Realtek ALC897), 1x 3,5 mm (Realtek ALC897), 1x RJ-45 (2,5 Gbase-T, Realtek RTL8125BG), 2x Connector Antenna Connector Connector |
| Pcie Slots |
1x PCIE 5.0 X16, 1x PCIE 4.0 X16 (X4) |
| M.2-Slot |
1x M.2/M-Key (PCIE 5.0 X4, 2580/2280), 1x M.2/M-Key (PCIE 4.0 X4, 2580/2280), 1x M.2/M-Key (PCIE 4.0 X4, 25110/2580/22110/2280), 1x M.2/Ke-Key (2230, occupato con Wifi+BT) |
| Interfacce Varie |
4x SATA 6GB/S (Z890) |
| Connettori Interni - Usb |
1x USB 3.1 Chiave di intestazione-A (10 GB/S, 1x USB-C), 1x USB 3.0 Intesta a 20 pin (5 GB/S, 2x USB-A), 2x USB 2.0 Intestazione 9-pin (480MB/S, 4x USB-A) |
| Connettori Interni - Altro |
Intestazione 1x TPM, 1x HDMI 1.4, 1x Thunderbolt Waster 5-pin, 1x Gigabyte USB4 Card Connector (THB_U4) |
| Connettori Interni - Raffreddamento |
1x ventola CPU PWM a 4 pin, 1x ventola CPU/pwm a 4 pin, ventola 3x PWM a 4 pin, ventola 1x/pwm a 4-pin |
| Connettori Interni - Alimentazione |
1x a 24 pin ATX, 2x 8-pin EPS12V |
| Connettori Interni - Illuminazione |
1x 4-pin RGB (+12V/G/R/B, Max. 2A), 3x 3-pin Argb (+5V/Data/GND, Max. 3A, Gigabyte Gen2) |
| Pulsanti/Interruttori |
Power-Button (Internal), Reset-Button (Internal), USB BIOS Flashback/Q-Flash Plus (Internal) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek RTL8125BG (2,5 GB/S) |
| Grafica |
Igpu |
| Wireless |
Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2), Bluetooth 5.4 (AMD RZ717 [MediaTek MT7925] o Realtek RTL8922AE) |
| Livello Raid |
0/1/5/10 (Z890) |
| Vrm-Design |
12+1+2, 13 PHASS CPU virtuali (2x6+1), 7 Fase CPU reali (6+1) |
| Mosfets Vcore |
12x 60a |
| Mosfets Soc/Vccgt |
1x 40a |
| Mosfets Vdd_Misc/Vccsa/Vccaux |
2x 60a |
| Illuminazione |
RGB, 1 zona (dispositivo di raffreddamento del chipset) |
| Bios |
1x 32 MB (256 MB) |
| Caratteristiche Speciali |
Capacità audio+solide, LED diagnostico (indicatori a LED), integrato I/O, compatibile con build bianca (PCB bianco), dispositivo di raffreddamento 3x m.2 |
| Warranty |
3 years (Info) |
| Usb Nomenclature |
Link |
| Last Price Update |
2025-09-08, 1:00pm |
| Listed Since |
2024-10-10, 12:52pm |
