| Fattore Di Forma |
ATX |
| Presa |
Intel 1700 (LGA1700) |
| Chipset |
Intel Z790 |
| Compatibilità Cpu |
Celeron G6000, Pentium Gold G7000, Core I-12000, Core I-13000, Core I-14000, Elenco di compatibilità CPU |
| Error 500 (Server Error)!!1500.That’S An Error.There Was An Error. Please Try Again Later.That’S All We Know. |
4x DDR5 Dimm, Dual Channel, UDIMM (non ECC), max. 256 GB (UDIMM) |
| Ram-Data Rata Oc |
max. DDR5-7600 |
| Ram-Data Rate Nativa |
DDR5-4800 (Celeron G6000), DDR5-4800 (Pentium Gold G7000), DDR5-4800 (Core I-12000), DDR5-4800/DDR5-5600 (Core I-13000), DDR5-4800/DDR5-5600 (Core I-14000) |
| Supporto Ecc |
NO |

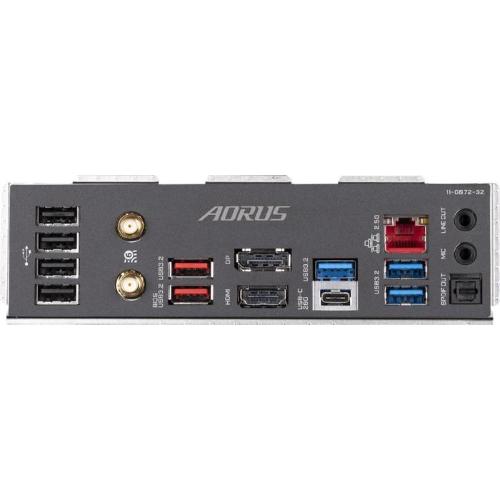

| Connettori Esterni |
1x DisplayPort 1.2 (HDCP 2.3, IGPU), 1x HDMI 2.1 TMDS (HDCP 2.3, IGPU), 1x USB-C 3.2 (20GB/S), 2x USB-A 3.1 (10GB/s), 3x USB-A 3.0 (5GB/s), 4x USB-A 2.0 (480MB/s) S/PDIF OUT, jack da 3,5 mm 2x (Realtek ALC897), 1x RJ-45 (2,5GBase-T, Realtek RTL8125BG), connettore antenna 2x RP-SMA |
| Pcie Slots |
1x PCIE 5.0 X16, 1x PCIE 4.0 X16 (X4), 1x PCIE 3.0 X16 (X4) |
| M.2-Slot |
3x M.2/M-Key (PCIE 4.0 X4, 22110/2280), 1x M.2/M-Key (PCIE 4.0 X4/SATA, 22110/2280), 1x M.2/Ke-e-Ke (2230, occupato con modulo WiFi+BT) |
| Interfacce Varie |
6x SATA 6GB/S (Z790) |
| Connettori Interni - Usb |
1x USB 3.1 Chiave di intestazione-A (10 GB/S, 1x USB-C), 1x USB 3.0 Intesta a 20 pin (5 GB/S, 2x USB-A), 2x USB 2.0 Intestazione 9-pin (480MB/S, 4x USB-A) |
| Connettori Interni - Altro |
Intestazione 1x tpm, header fulmine 1x 5-pin, header 1x rtd3, header di intrusione del telaio 1x |
| Connettori Interni - Raffreddamento |
1x ventola CPU PWM a 4 pin, 1x ventola CPU/pwm a 4 pin, ventola 3x PWM a 4 pin, ventola 1x/pwm a 4-pin |
| Connettori Interni - Alimentazione |
1x a 24 pin ATX, 2x 8-pin EPS12V |
| Connettori Interni - Illuminazione |
2x 4-pin RGB (+12V/G/R/B, Max. 2A), Argb a 3 pin 2x (+5V/Data/GND, Max. 5A) |
| Pulsanti/Interruttori |
Clear-CMOS-Button (Internal), Power-Button (Internal), Reset-Button (Internal), USB BIOS Flashback/Q-Flash Plus (Internal) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek RTL8125BG (2,5 GB/S) |
| Grafica |
Igpu |
| Wireless |
Wi-Fi 6E (WLAN 802.11a/b/g/nac/nac/an, 2x2, Intel ax211), Bluetooth 5.3 |
| Livello Raid |
0/1/5/10 (Z790) |
| Vrm-Design |
16+1+1, 17 virtuali CPU-PHASE (2x8+1), 9 Fase CPU reali (8+1) |
| Mosfets Vcore |
16x 70A FDFM5062 (SPS) |
| Mosfets Soc/Vccgt |
1x 60A NCP303160 (DRMOS) |
| Mosfets Vdd_Misc/Vccsa/Vccaux |
1x |
| Pwm-Controller |
NCP81530R (fasi Max. 10) |
| Illuminazione |
RGB, 1 zona (dispositivo di raffreddamento del chipset) |
| Bios |
1x 32 MB (256 MB) |
| Caratteristiche Speciali |
Capacità audio+solide, LED diagnostico (indicatori a LED), integrato I/O, coolier-passive 4x M.2, supporta AMD a 2 vie-crossfirex (x16/x4) |
| Warranty |
3 years (Info) |
| Usb Nomenclature |
Link |
| Last Price Update |
2025-09-08, 1:00pm |
| Listed Since |
2022-09-27, 8:05pm |
