| Fattore Di Forma |
µATX |
| Presa |
Intel 1700 (LGA1700) |
| Chipset |
Intel B760 |
| Compatibilità Cpu |
Celeron G6000, Pentium Gold G7000, Core I-12000, Core I-13000, Core I-14000, Elenco di compatibilità CPU |
| Ram-Slot |
4x DDR5 Dimm, Dual Channel, UDIMM (non ECC), max. 256 GB (UDIMM) |
| Ram-Data Rate Nativa |
DDR5-4800 (Celeron G6000), DDR5-4800 (Pentium Gold G7000), DDR5-4800 (Core I-12000), DDR5-4800/DDR5-5600 (Core I-13000), DDR5-4800/DDR5-5600 (Core I-14000) |
| Supporto Ecc |
NO |

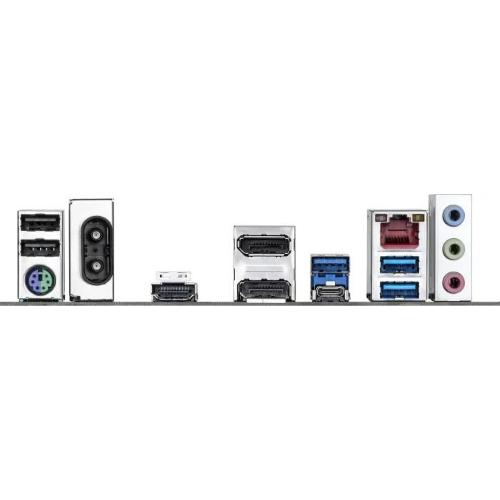

| Connettori Esterni |
2x DisplayPort 1.2 (HDCP 2.3, IGPU), 1x HDMI 2.1 TMDS (HDCP 2.3, IGPU), 1x VGA (IGPU), 1x USB-C 3.1 (10GB/s), 3x USB-A 3.0 (5GB/s), 2x USB-A 2.0 (480mb/s) (real. ALC897), 1x RJ-45 (2,5GBase-T, Realtek RTL8125BG), 1x PS/2 Combo, connettore antenna 2x Quick Connect |
| Pcie Slots |
1x pcie 5.0 x16, 2x pcie 3.0 x1 |
| M.2-Slot |
2x M.2/M-Key (PCIE 4.0 X4, 2280), 1x M.2/E-Key (2230, occupato con modulo WiFi+BT) |
| Interfacce Varie |
4x SATA 6GB/S (B760) |
| Connettori Interni - Usb |
1x USB 3.0 Intesta a 20 pin (5 GB/S, 2x USB-A), 2x USB 2.0 Intestazione 9-pin (480MB/S, 4x USB-A) |
| Connettori Interni - Altro |
Testa seriale 1x, intestazione parallela 1x, intestazione 1x tpm, header 1x s/pdif |
| Connettori Interni - Raffreddamento |
1x ventola CPU 4-pin PWM, 3x ventola a 4 pwm |
| Connettori Interni - Alimentazione |
1x a 24 pin ATX, 1x 8-pin EPS12V |
| Connettori Interni - Illuminazione |
1x 4-pin RGB (+12V/G/R/B, Max. 2A), Argb 2x 3-pin (+5V/Data/GND, Max. 3A, Gigabyte Gen2) |
| Pulsanti/Interruttori |
USB BIOS Flashback/Q-Flash Plus (interno) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek RTL8125BG (2,5 GB/S) |
| Grafica |
Igpu |
| Wireless |
Wi-Fi 6E (WLAN 802.11a/G/G/N/AC/AC/AC, 2x2, Intel Ax210), Bluetooth 5.3 |
| Livello Raid |
0/1/5/10 (B760) |
| Vrm-Design |
6+2+1, 8 PHASS CPU virtuali (6+2), 8 PASE CPU reali (6+2) |
| Mosfets Vcore |
6x 46A 4C10n/12x 4C06N (alto/basso) |
| Mosfets Soc/Vccgt |
2x 46A 4C10N/4C06N (alto/basso) |
| Mosfets Vdd_Misc/Vccsa/Vccaux |
1x |
| Pwm-Controller |
NCP81530R (fasi Max. 10) |
| Illuminazione |
non disponibile |
| Bios |
1x 16 MB (128 MB) |
| Caratteristiche Speciali |
Audio+condensatori solidi, 1x m.2-paesaggio |
| Warranty |
3 years (incl.from date of manufacture, processing via specialized dealers) |
| Usb Nomenclature |
Link |
| Last Price Update |
- |
| Listed Since |
2025-08-14, 1:18pm |
