| Fattore Di Forma |
µATX |
| Presa |
AMD AM5 |
| Chipset |
AMD B650 |
| Compatibilità Cpu |
Ryzen 7000, Ryzen 8000G, Ryzen 9000, elenco di compatibilità della CPU |
| Error 500 (Server Error)!!1500.That’S An Error.There Was An Error. Please Try Again Later.That’S All We Know. |
4x DDR5 Dimm, Dual Channel, UDIMM (non ECC), max. 256 GB (UDIMM) |
| Ram-Data Rata Oc |
max. DDR5-8000 |
| Ram-Data Rate Nativa |
DDR5-5200 (Ryzen 7000), DDR5-5200 (Ryzen 8000G), DDR5-5600 (Ryzen 9000) |
| Supporto Ecc |
NO |

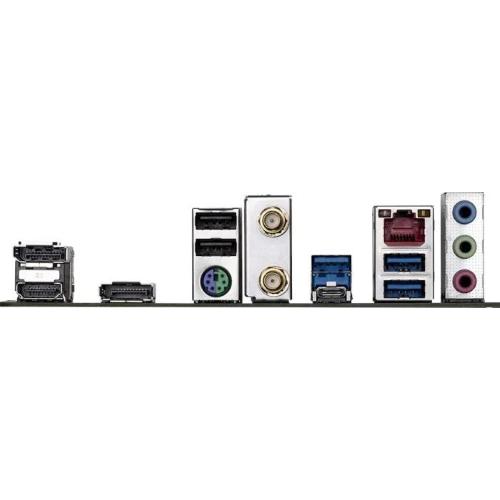

| Connettori Esterni |
2x DisplayPort 1.4 (IGPU), 1x HDMI 2.1 (IGPU), 1x USB-C 3.0 (5GB/S), 3x USB-A 3.0 (5GB/S), 2x USB-A 2.0 (480MB/S), 3x 3,5 mm Jack (Realtek Alc897), 1x Rj-45 (Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek (Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek-T, Realtek/S) RTL8125BG), 1x PS/2 Combo, connettore antenna 2x RP-SMA |
| Pcie Slots |
1x PCIE 4.0 X16, 1x PCIE 3.0 X1 |
| M.2-Slot |
1x M.2/M-Key (PCIE 4.0 X4, 2580/2280), 1x M.2/M-Key (PCIe 4.0 X4, 22110/2280), 1x M.2/E-Key (2230, occupato con modulo WiFi+BT) |
| Interfacce Varie |
4x SATA 6GB/S (B650) |
| Connettori Interni - Usb |
1x USB 3.0 TEADER KEY-A (5 GB/S, 1x USB-C), 1x USB 3.0 Intestazione 20-pin (5 GB/S, 2x USB-A), 2x USB 2.0 Intestazione 9-pin (480MB/S, 4x USB-A) |
| Connettori Interni - Altro |
Testa seriale 1x, header 1x tpm |
| Connettori Interni - Raffreddamento |
1x ventola CPU PWM a 4 pin, 2x ventole a 4-pin PWM |
| Connettori Interni - Alimentazione |
1x a 24 pin ATX, 1x 8-pin EPS12V |
| Connettori Interni - Illuminazione |
2x 3-pin Argb (+5V/Data/GND, Max. 5A), 1x 4-pin RGB (+12V/G/R/B, Max. 2A) |
| Pulsanti/Interruttori |
USB BIOS Flashback/Q-Flash Plus (interno) |
| Audio |
Realtek ALC897 |
| Rete |
Realtek RTL8125BG (2,5 GB/S) |
| Grafica |
Igpu |
| Wireless |
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Realtek RTL8852CE), Bluetooth 5.3 |
| Livello Raid |
0/1/10 (B650) |
| Vrm-Design |
5+2, 7 PHASS CPU virtuali (5+2), 7 PASE CPU reali (5+2) |
| Mosfets Vcore |
5x 46A 4C10n/10x 4C06N (alto/basso) |
| Mosfets Soc/Vccgt |
2x 46A 4C10N/4X 4C06N (alto/basso) |
| Pwm-Controller |
RT3678BE (fasi Max. 10) |
| Illuminazione |
non disponibile |
| Bios |
1x 32 MB (256 MB) |
| Caratteristiche Speciali |
Audio+condensatori solidi, 1x m.2-paesaggio |
| Warranty |
3 years (Info) |
| Usb Nomenclature |
Link |
| Last Price Update |
2025-09-08, 1:00pm |
| Listed Since |
2023-11-28, 2:36pm |
