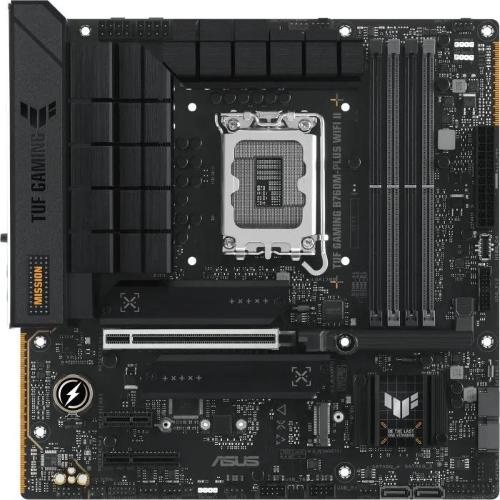

| Fattore Di Forma |
µATX |
| Presa |
Intel 1700 (LGA1700) |
| Chipset |
Intel B760 |
| Compatibilità Cpu |
Celeron G6000, Pentium Gold G7000, Core I-12000, Core I-13000, Core I-14000, Elenco di compatibilità CPU |
| Ram-Slot |
4x DDR5 Dimm, Dual Channel, UDIMM (non ECC), max. 256 GB (UDIMM) |
| Ram-Data Rata Oc |
max. DDR5-7800 |
| Ram-Data Rate Nativa |
DDR5-4800 (Celeron G6000), DDR5-4800 (Pentium Gold G7000), DDR5-4800 (Core I-12000), DDR5-4800/DDR5-5600 (Core I-13000), DDR5-4800/DDR5-5600 (Core I-14000) |
| Supporto Ecc |
NO |

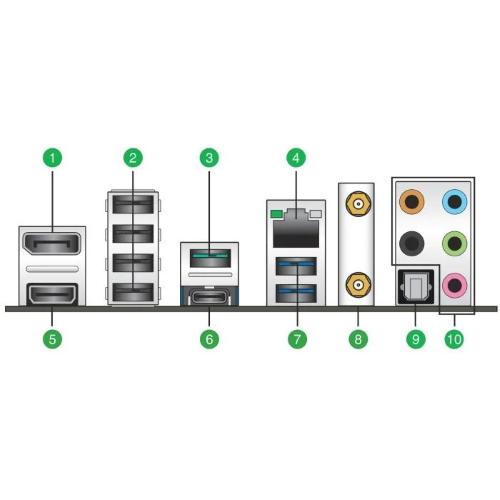

| Connettori Esterni |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x USB-C 3.2 (20Gb/?s), 1x USB-A 3.1 (10Gb/?s), 2x USB-A 3.0 (5Gb/?s), 4x USB-A 2.0 (480Mb/?s), 1x toslink S/?PDIF Out, 5x 3.5mm jack (Realtek ALC897), 1x RJ-45 (2,5 Gbase-T, Realtek), connettore antenna 2x Connector Quick Connect |
| Pcie Slots |
1x PCIE 5.0 X16, 1x PCIE 4.0 X4, 1x PCIE 3.0 X1 |

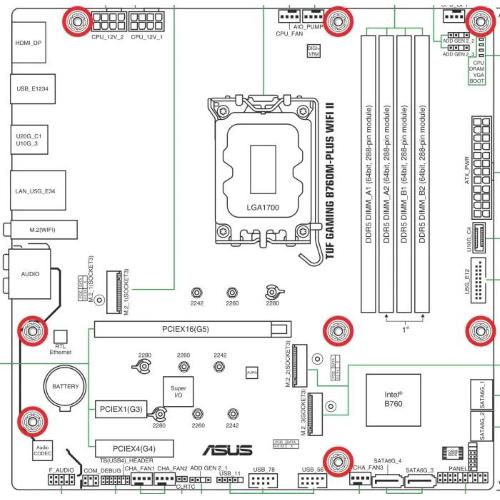

| M.2-Slot |
2x M.2/M-KEY (PCIE 4.0 X4, 2280/2260/2242), 1x M.2/M-Key (PCIe 4.0 X2, 2280/2260/2242), 1x M.2/E-Key (2230, occupato con modulo WiFi+BT) |
| Interfacce Varie |
4x SATA 6GB/S (B760) |
| Connettori Interni - Usb |
1x USB 3.1 Chiave header-A (10 GB/S, 1x USB-C), 1x USB 3.0 Intestazione 20-pin (5 GB/S, 2x USB-A), 2x USB 2.0 Intestazione 9-pin (480MB/S, 4x USB-A), 1x USB 2.0 4-pin (480mb/s, 1x USB-A) |
| Connettori Interni - Altro |
1x ASUS Thunderbolt USB4 Intestazione (TB (USB4)), 1x Intestazione di intrusione del telaio, 1x com debug |
| Connettori Interni - Raffreddamento |
2x ventola CPU PWM a 4 pin, 3x ventole a 4 pin PWM, 1x pwm a 4 pin a 4-pump |
| Connettori Interni - Alimentazione |
1x a 24 pin ATX, 2x 8-pin EPS12V |
| Connettori Interni - Illuminazione |
3x 3-pin Argb (+5V/Data/GND, Max. 3A, Asus Gen2) |
| Audio |
Realtek ALC897, elaborazione audio DTS |
| Rete |
Realtek (2,5 GB/s) |
| Grafica |
Igpu |

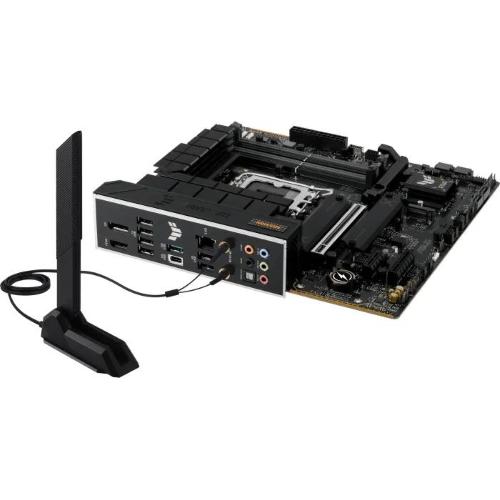

| Wireless |
Wi-Fi 6E (WLAN 802.11a/b/g/n/ac/ax, 2x2, Realtek RTL8852CE), Bluetooth 5.3 |
| Livello Raid |
0/1/5/10 (B760) |
| Vrm-Design |
12+1+1, 13 PHASS CPU virtuali (2x6+1), 7 PASE CPU reali (6+1) |
| Mosfets Vcore |
12x 50A SIC639 (DRMOS) |
| Mosfets Soc/Vccgt |
1x 60A SIC643 (DRMOS) |
| Mosfets Vdd_Misc/Vccsa/Vccaux |
1x |
| Pwm-Controller |
ASP2100 (RT3628AE, fasi Max. 9) |
| Illuminazione |
non disponibile |
| Bios |
1x 16 MB (128 MB) |
| Caratteristiche Speciali |
Capacità audio+solide, LED diagnostico (indicatori a LED), integrato I/O, 2x M.2-COOTTER |
| Warranty |
3 years (handling by merchant) |
| Usb Nomenclature |
Link |
| Last Price Update |
2025-05-28, 11:15am |
| Listed Since |
2024-01-28, 8:25am |
