| shape factor |
µATX |
| Socket |
Intel 1700 (LGA1700) |
| chipset |
Intel H610 |
| CPU-Compatibility |
Celeron G6000,Pentium Gold G7000,Core i-12000,Core i-13000,Core i-14000,CPU-compatibility list |
| RAM-Slots |
2x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC), max. 64GB (UDIMM) |
| RAM-data installment native |
DDR5-4800 (Celeron G6000), DDR5-4800 (Pentium Gold G7000), DDR5-4800 (Core i-12000), DDR5-4800/?DDR5-5600 (Core i-13000), DDR5-4800/?DDR5-5600 (Core i-14000) |
| ECC support |
no |

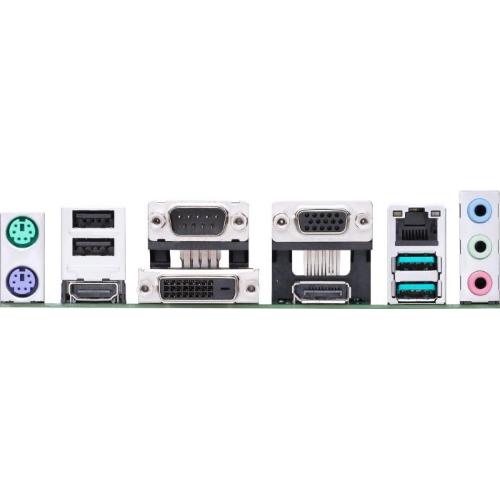

| external connectors |
1x DisplayPort 1.4 (iGPU), 1x HDMI 2.1 (iGPU), 1x VGA (iGPU), 1x DVI-D (iGPU), 2x USB-A 3.1 (10Gb/?s, PCH), 2x USB-A 2.0 (480Mb/?s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (1000Base-T, Intel I219-V), 1x serial, 1x PS/?2 keyboard, 1x PS/?2 mouse |
| PCIe-Slots |
1x PCIe 5.0 x16, 2x PCIe 3.0 x1 |
| M.2-Slots |
1x M.2/?M-Key (PCIe 3.0 x4, 2280/?2260/?2242) |
| Miscellaneous Interfaces |
1x PCI, 4x SATA 6Gb/s (H610) |
| internal connectors - USB |
1x USB 3.0 Header 20-Pin (5Gb/?s, 2x USB-A, H610), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other |
1x serial Header, 1x parallel Header, 1x TPM Header, 1x Speaker Header, 1x 3W Mono-Out Speaker Header, 1x Chassis Intrusion Header, 1x COM Debug Header, 1x SMBus Header |
| internal connectors - Cooling |
1x CPU fan 4-Pin PWM, 1x fan 4-Pin PWM |
| internal connectors - Power supply |
1x 24-Pin ATX, 1x 8-Pin EPS12V |
| internal connectors - Lighting |
not available |
| Audio |
Realtek ALC897 |
| network |
Intel I219-V (1Gb/?s) |
| Graphics |
iGPU |
| Wireless |
not available |
| VRM-Design |
6+1, 7 virtual CPU-phases (6+1), 7 real CPU-phases (6+1) |
| MOSFETs VCORE |
6x 58A SiRA14BDP/?SiRA12BDP (High-/?Low-Side) |
| MOSFETs SOC/VCCGT |
1x 58A SiRA14BDP/?2x SiRA12BDP (High-/?Low-Side) |
| PWM-controller |
ASP2100 (RT3628AE, max. 9 phases) |
| Lighting |
not available |
| BIOS |
1x 16MB (128Mb) |
| Special features |
All solid capacitors |
