| shape factor |
µATX |
| Socket |
Intel 1200 (LGA1200) |
| chipset |
Intel H470 |
| CPU-Compatibility |
CPU-compatibility list |
| RAM-Slots |
2x DDR4 DIMM, Dual Channel, UDIMM (Non-ECC), max. 64GB (UDIMM) |
| RAM-operating frequency native |
DDR4-3200 |
| ECC support |
no |

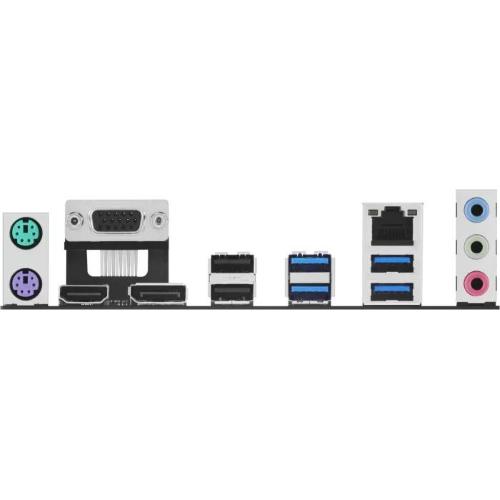

| external connectors |
1x DisplayPort 1.4a (iGPU), 1x HDMI 2.1 (iGPU), 1x VGA (iGPU), 4x USB-A 3.0 (5Gb/?s), 2x USB-A 2.0 (480Mb/?s), 3x 3.5mm jack (Realtek ALC897), 1x RJ-45 (1000Base-T, Realtek), 1x PS/?2 keyboard, 1x PS/?2 mouse |
| PCIe-Slots |
1x PCIe 4.0 x16, 2x PCIe 3.0 x1 |
| M.2-Slots |
1x M.2/?M-Key (PCIe 3.0 x4/?SATA, 2280/?2260/?2242) |
| Miscellaneous Interfaces |
4x SATA 6Gb/s (H470) |
| internal connectors - USB |
1x USB 3.0 Header 20-Pin (5Gb/?s, 2x USB-A), 2x USB 2.0 header 9-Pin (480Mb/?s, 4x USB-A) |
| internal connectors - other |
1x serial Header, 1x S/?PDIF Header, 1x TPM Header, 1x Speaker Header, 1x COM Debug Header |
| internal connectors - Cooling |
1x CPU fan 4-Pin PWM, 1x fan 4-Pin PWM |
| internal connectors - Power supply |
1x 24-Pin ATX, 1x 8-Pin EPS12V |
| internal connectors - Lighting |
2x 4-Pin RGB (+12V/?G/?R/?B, max. 3A), 2x 3-Pin ARGB (+5V/?DATA/?GND, max. 3A, ASUS Gen2) |
| Audio |
Realtek ALC897 |
| network |
Realtek (1Gb/?s) |
| Graphics |
iGPU |
| Wireless |
not available |
| RAID level |
0/?1/?5/?10 (H470) |
| VRM-Design |
6+1, 7 virtual CPU-phases (6+1), 7 real CPU-phases (6+1) |
| MOSFETs VCORE |
6x 58A SiRA14BDP/?SiRA12BDP (High-/?Low-Side) |
| MOSFETs SOC/VCCGT |
1x 58A SiRA14BDP/?2x SiRA12BDP (High-/?Low-Side) |
| PWM-controller |
RT3609BE (max. 8 phases) |
| Lighting |
not available |
| BIOS |
1x 16MB (128Mb) |
| Special features |
audio+solid capacitors |
